5B–20 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D103B534

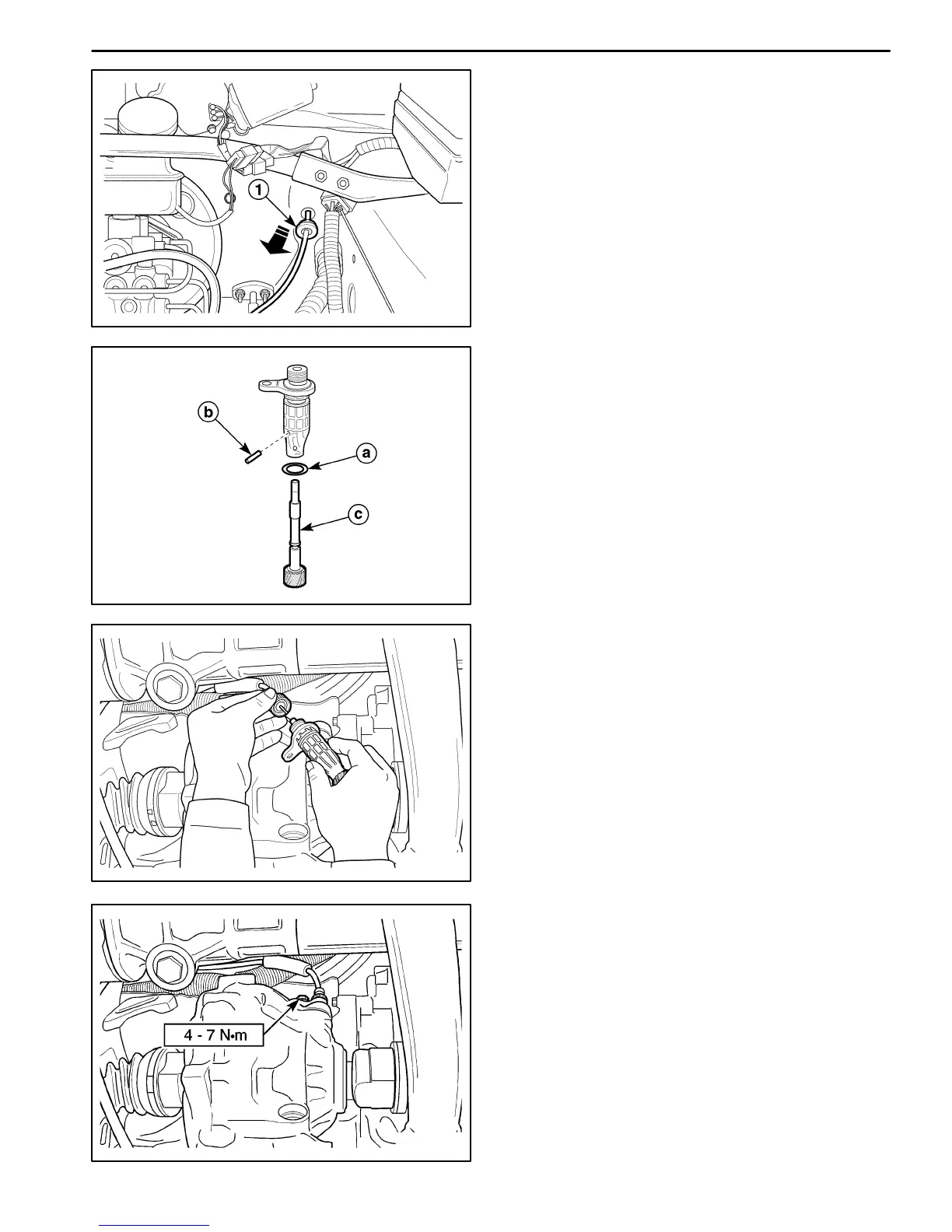

2. Remove the battery. Refer to Section 1E, Engine
Electrical.
3. Disconnect the instrument cluster side cable. Refer to
Section 9E, Instrumentation/Driver Information.
4. Remove the speedometer cable.
D Remove the cable grommet (1).
D Pull out the speedometer cable from the dash pan-
el.
D103B535
Inspection Procedure
1. Remove the O–ring from the speedometer driven
gear housing.
2. Remove the driven gear pin and disconnect the driv-
en gear.
D Check for a damaged or torn O–ring.
D Check for a worn or damaged tooth of driven gear.
a. O–ring.
b. Driven gear pin.
c. Driven gear.
D103B536
Installation Procedure
1. Install in the reverse order of removal.
Important: Install the speedometer driven gear assem-
bly after connecting the speedometer cable with the
speedometer driven gear assembly completely.
D13B537A
2. Install the speedometer driven gear assembly to
transaxle housing.
Tighten
Tighten the speedometer driven gear assembly bolt
to 4–7 NSm (35–62 lb-in).
