FIVE-SPEED MANUAL TRANSAXLE 5B–49
DAEWOO M-150 BL2
D103B791

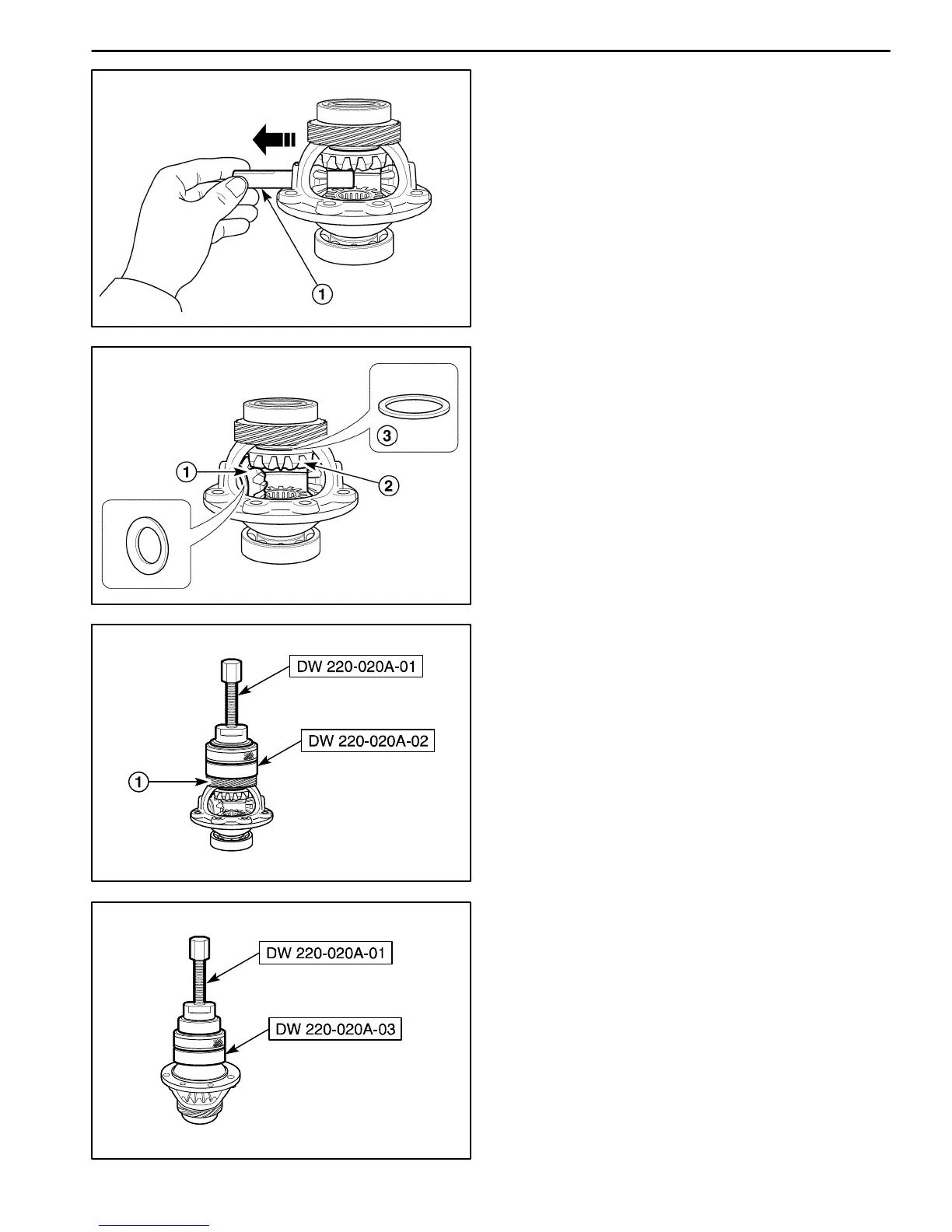

4. Remove the pinion gear shaft.
D Remove the shaft from the case (1).
D103B792
5. Remove the pinion gears and the side gears.
D Remove the pinion gears and the washers (1).
Important: Remove the pinion gear and the washer by
rotating the side gear.
D Remove the side gears (2).
D Remove the adjust shims from the side gears (3).
D13B793A
6. Remove the differential right side bearing and
speedometer drive gear.
D Remove the right side bearing using the differential
bearing puller DW220–020A–01 and the differen-
tial bearing plate adapter DW220–020A–02.
D Remove the speedometer drive gear (1).
D13B794A
7. Remove the differential left side bearing.
D Remove the left side bearing using the differential
bearing puller DW220–020A–01 and the differen-
tial bearing plate adapter DW220–020A–03.
