FIVE-SPEED MANUAL TRANSAXLE 5B–51
DAEWOO M-150 BL2
D103B799

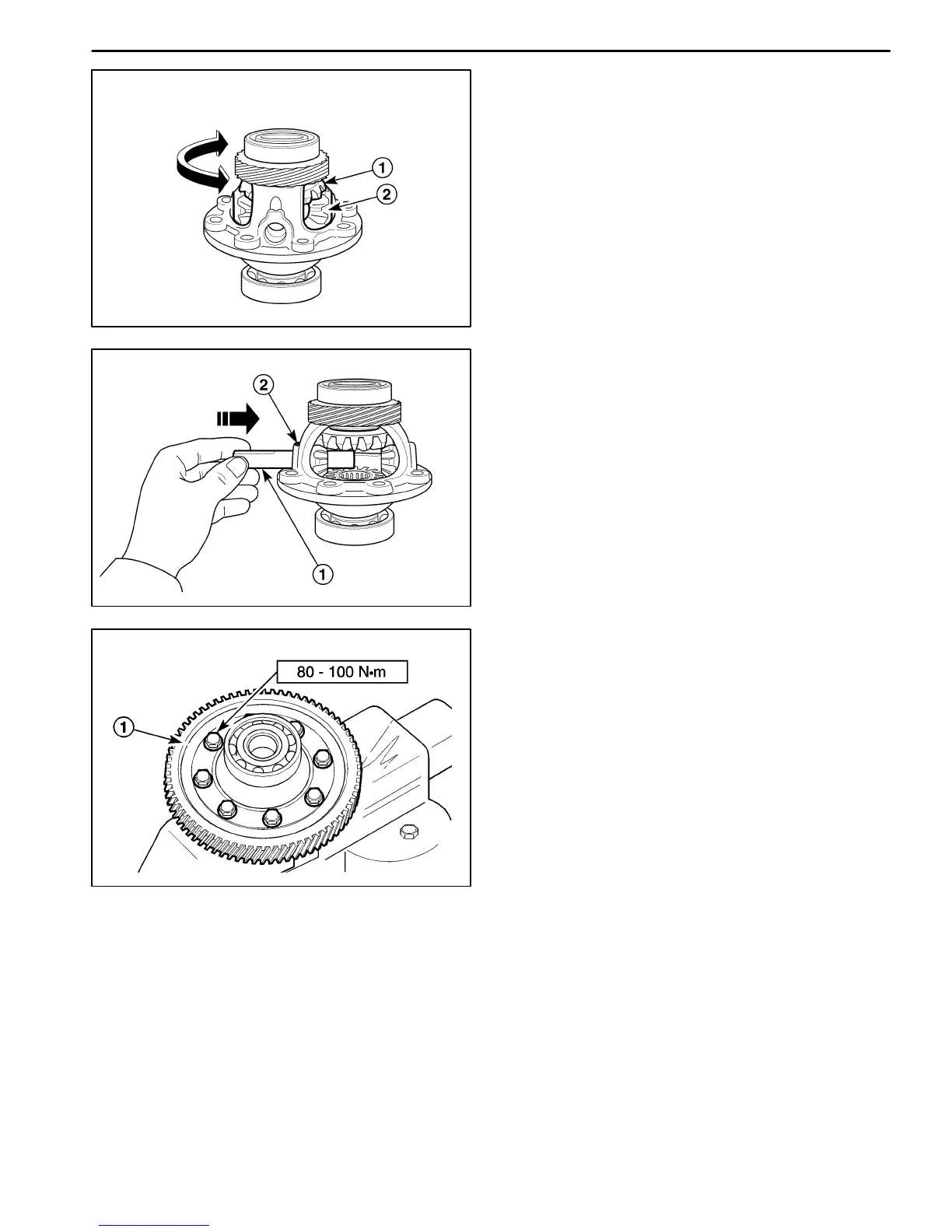

3. Install the side gears and the pinion gears.
D Insert the trust adjusting shims to the side gears.
D Install the side gears (1).
D Install the pinion gears and washers (2).
Important: Install the pinion gears and washers simul-
taneously.
D103B800
4. Install the pinion gear shaft and pin.
D Insert the shaft into the gear pin hole by rotating
(1).
D Press the pin using a pin punch and a hammer (2).
Important: Use only new pin.
D13B801A
5. Install the differential ring gear.
D Fix the differential assembly to a vise.
D Install the ring gear with the bolts (1).
Tighten
Tighten the bolts to 80–100 NSm (59–74 lb-ft).
6. Install the differential assembly. Refer to “Gear Unit”
in this section.
To Next Page
