6D –16 MANUAL STEERING GEAR
DAEWOO M-150 BL2
D15B720A

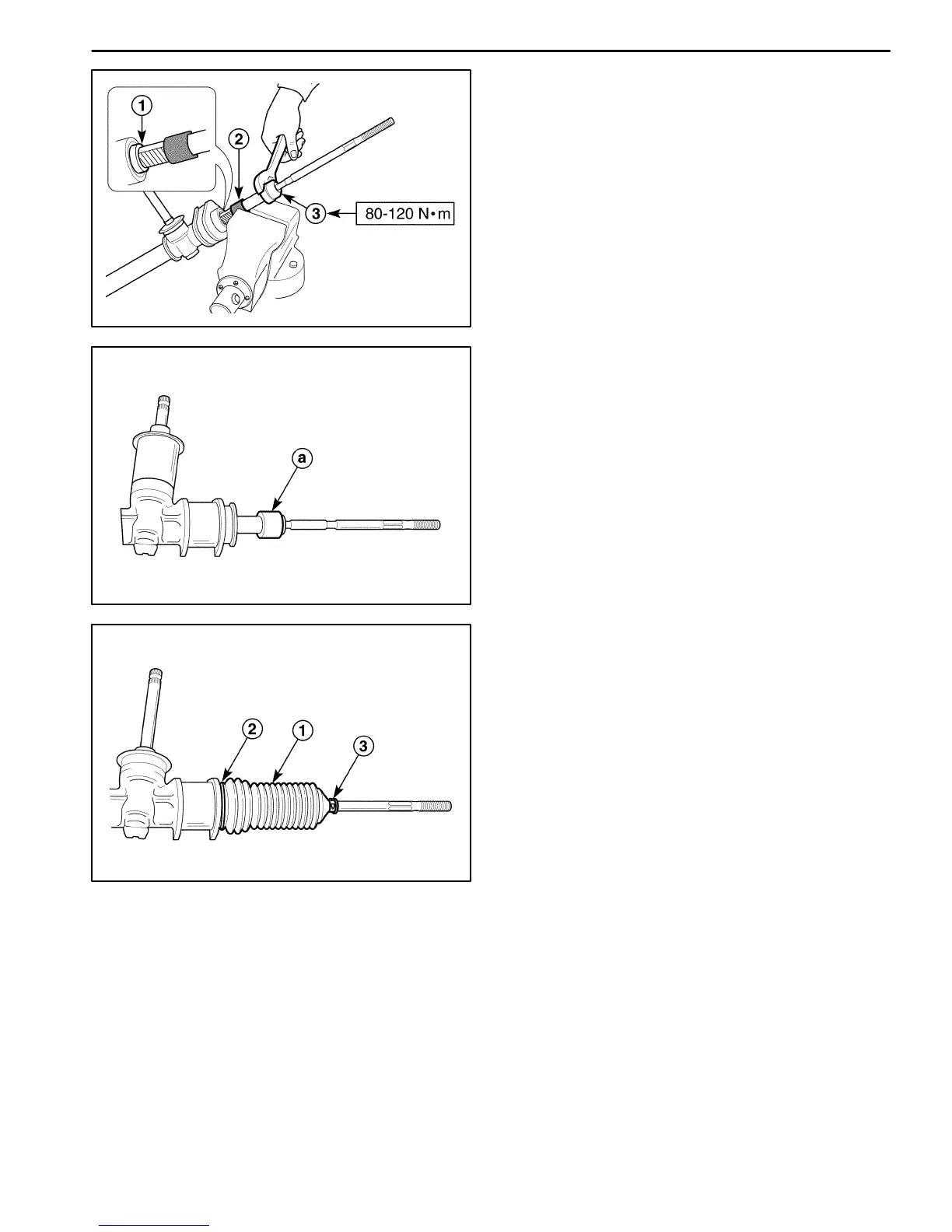

5. Install the tie rod.
D Install the shock damper ring to the rack gear (1).
D Vise the rack gear (2).
Important : Clothe the rack gear with a cloth before vis-
ing the rack gear.
Notice: Do not vise the rack gear above two teeth face.
D Coat the teeth face of the tie rod with Loctitte.
D Install the tie rod (3).
Tighten
Tighten the tie rod to 80–120 NSm (59–89 lb-ft).
D105B721
6. Install the shock damper ring to the tie rod ball joint.
a. Tie rod ball joint.
D Coat the tie rod ball joint with grease.
D105B722
7. Install the rack and pinion boot.
D Install the rack and pinion boot (1).
D Install the rack and pinion boot wire clamp (2).
D Install the rack and pinion boot clamp (3).
8. Install the tie rod end. Refer to “Tie Rod End” in this
sections.
9. Install the rack and pinion steering gear assembly to
the vehicle. Refer to “Rack and Pinion Steering
Gear Assembly” in this section.
10. Adjust the free load of the steering gear. Refer to
“Diagnosis” in this section.
