8B–26 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)
DAEWOO M-150 BL2
D1AB302B
DIAGNOSTIC TROUBLE CODE (DTC) 07
PASSENGER FIRING CIRCUIT, SHORT TO GROUND

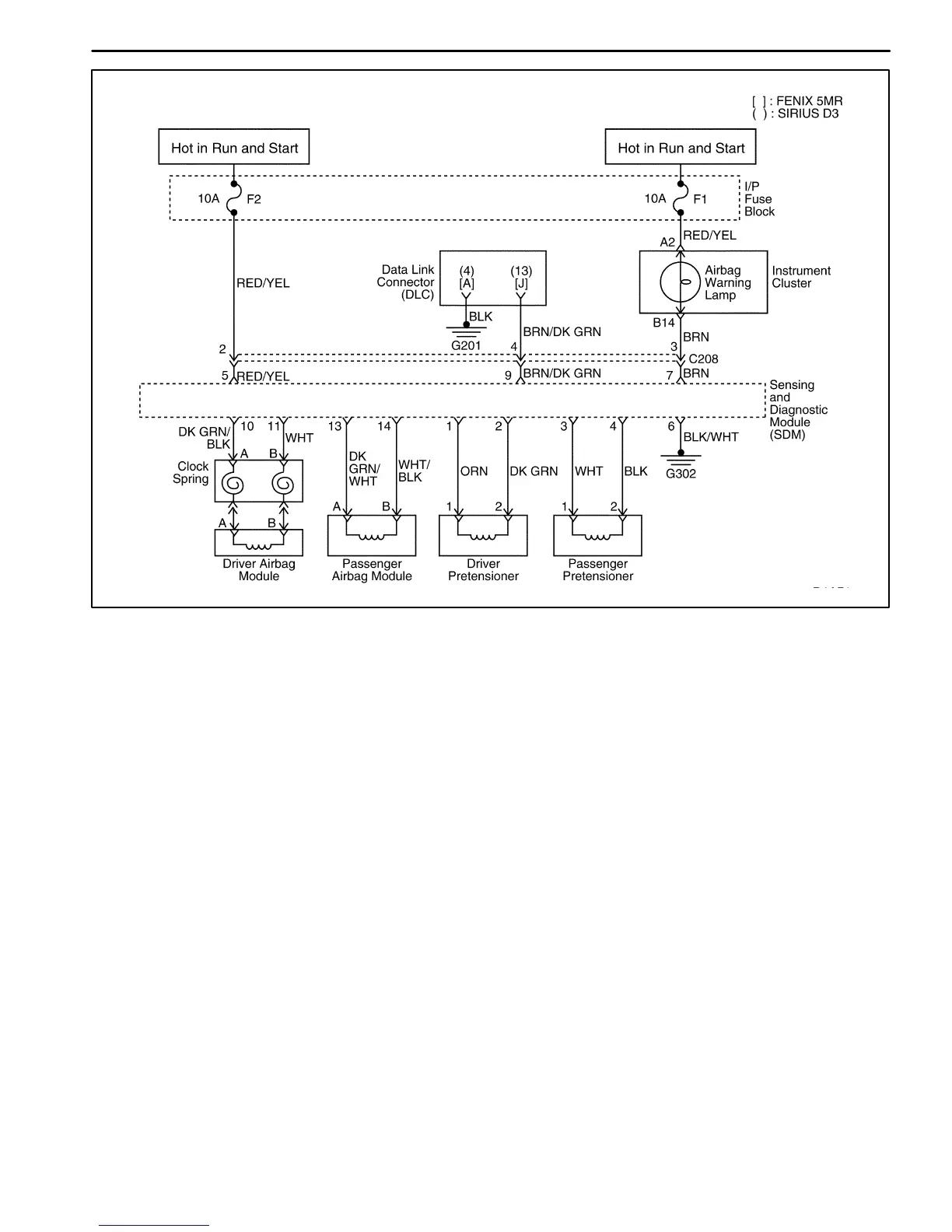

Circuit Description
When the ignition switch is turned ON, the sensing and
diagnostic module (SDM) will diagnose any malfunc-
tions within itself.
After passing these tests, the SDM will check the
passenger airbag firing circuit. The SDM allows a very
small amount of current to flow through the circuit. The
SDM monitors the voltage during this check.
DTC 07 Will Set When
D The firing circuit is shorted to ground.
Test Description
Caution: Before testing, disconnect the negative
battery cable. Wait 1 minute for the SDM capacitor
to discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is discon-
nected. Unintentional deployment of the airbags
can cause injury.
To Next Page
