General Outline ESIE11-02
1–50 Part 1 – System Outline
3
11
4
5
1.22 Outlook Drawing: EUWAN10-12KBZW1/EUWYN10-12KBZW1
EUWAN10-12KBZW1
/EUWYN10-12KBZW1

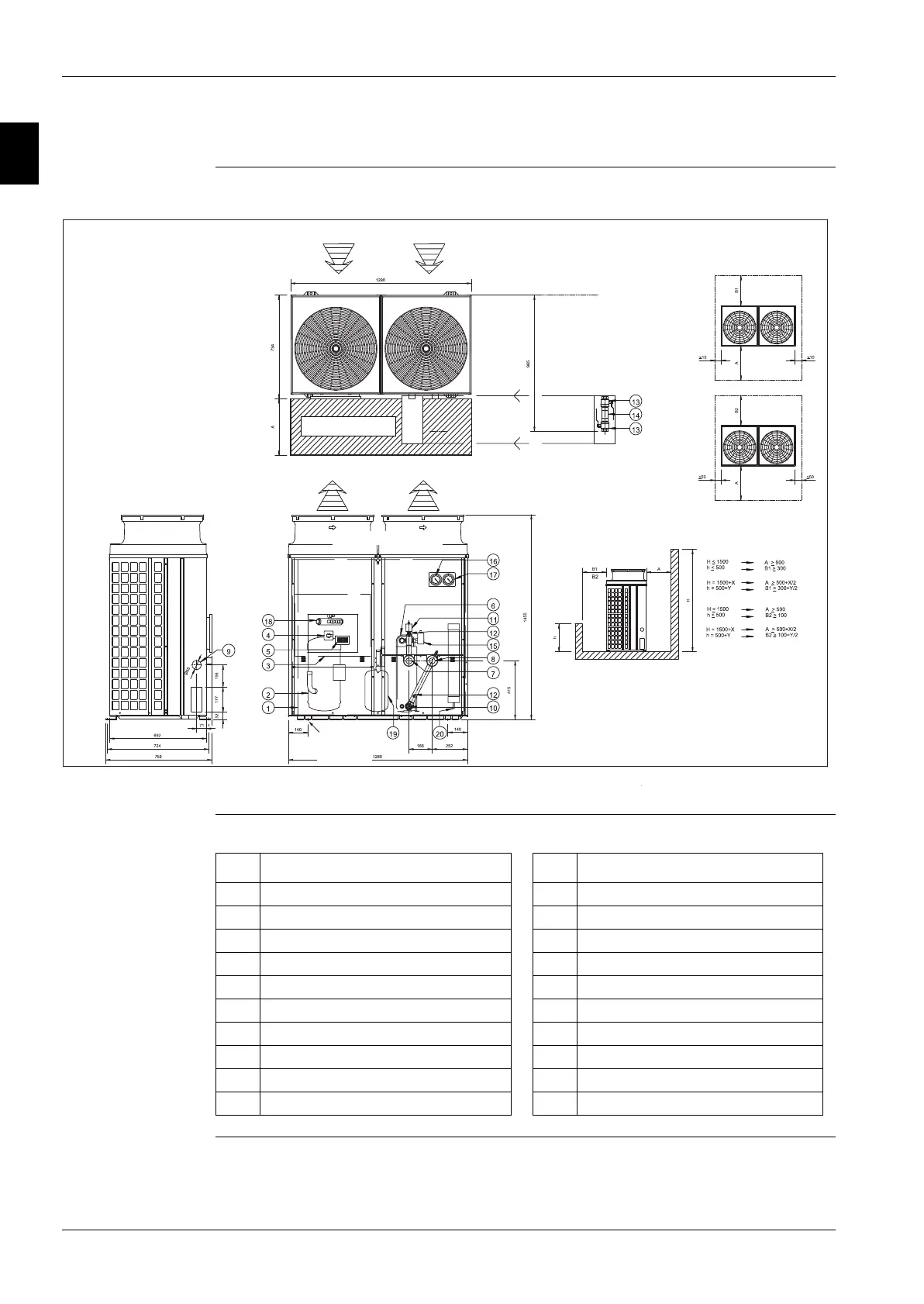

The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components:
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
SERVICE SPACE
FILTERKIT
(delivered with the unit)
No. Component No. Component
1 Air heat exchanger 11 Air purge
2 Compressor 12 Pressure port
3 Switch box 13 Ball valve: 1 1/4” BSP
4 Main switch 14 Water filter: 1 1/4” BSP
5 Digital display controller 15 Flow switch
6 Water heat exchanger 16 High pressure gauge (optional)
7 Water IN connection: 1 1/4” M BSP 17 Low pressure gauge (optional)
8 Water OUT connection: 1 1/4” M BSP 18 4-way valve (only on H/P models)
9 Power supply intake 19 Accumulator (only on H/P models)
10 Drain 20 Liquid receiver (only on H/P models)
To Next Page
