ESIE11-02 Wiring Layout
Part 1 – System Outline 1–69
3
1
4
5

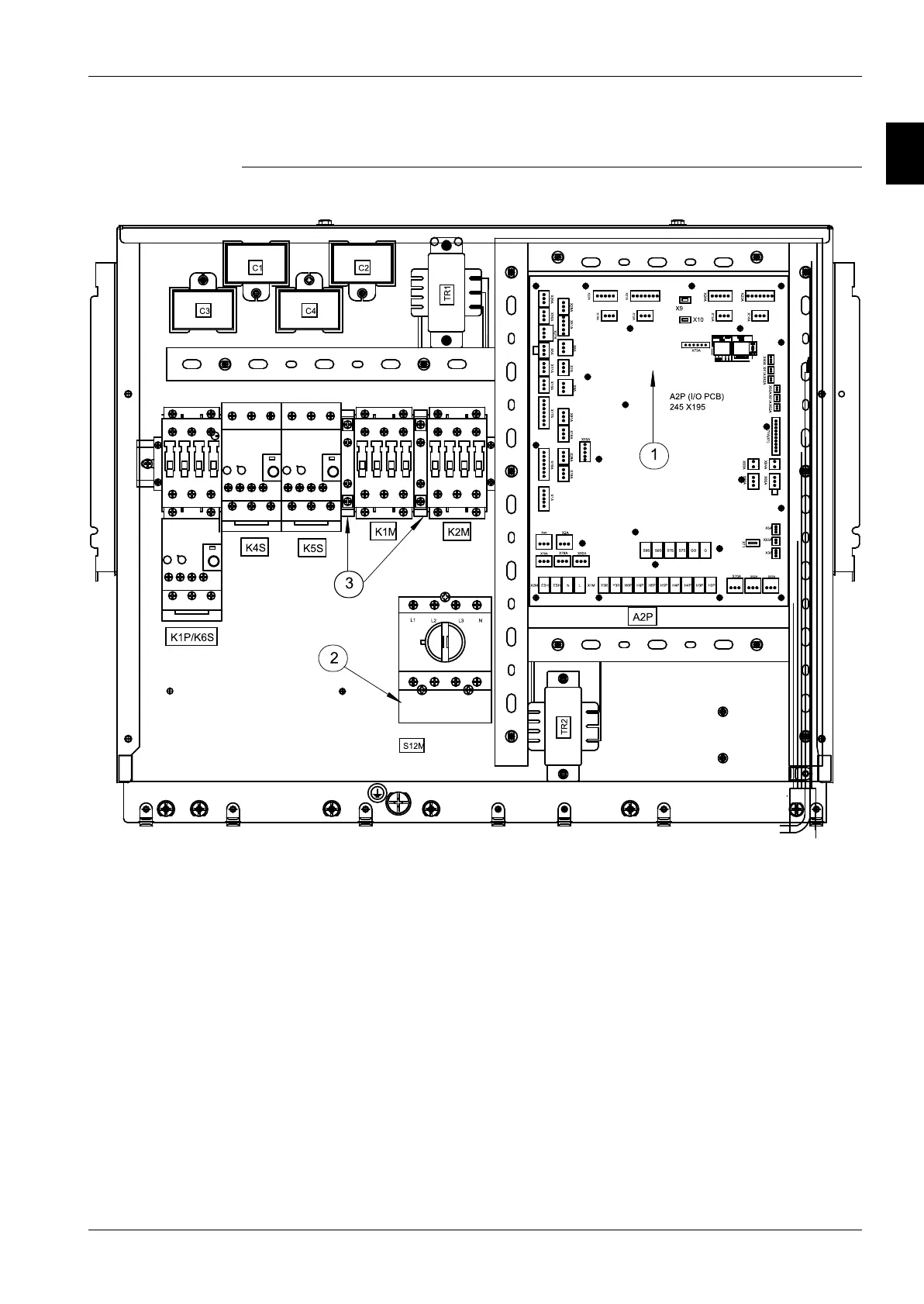

3.3 Switch Box Layout: EUWA*5-24KBZW1 and EUWY*5-24KBZW1
Double circuit
layout
The illustration below shows the switch box layout for a double circuit.
