1.28 Outlook Drawing: EUWAN20-24KBZW1/EUWYN20-24KBZW1
EUWAN20-24KBZW1
/EUWYN20-24KBZW1

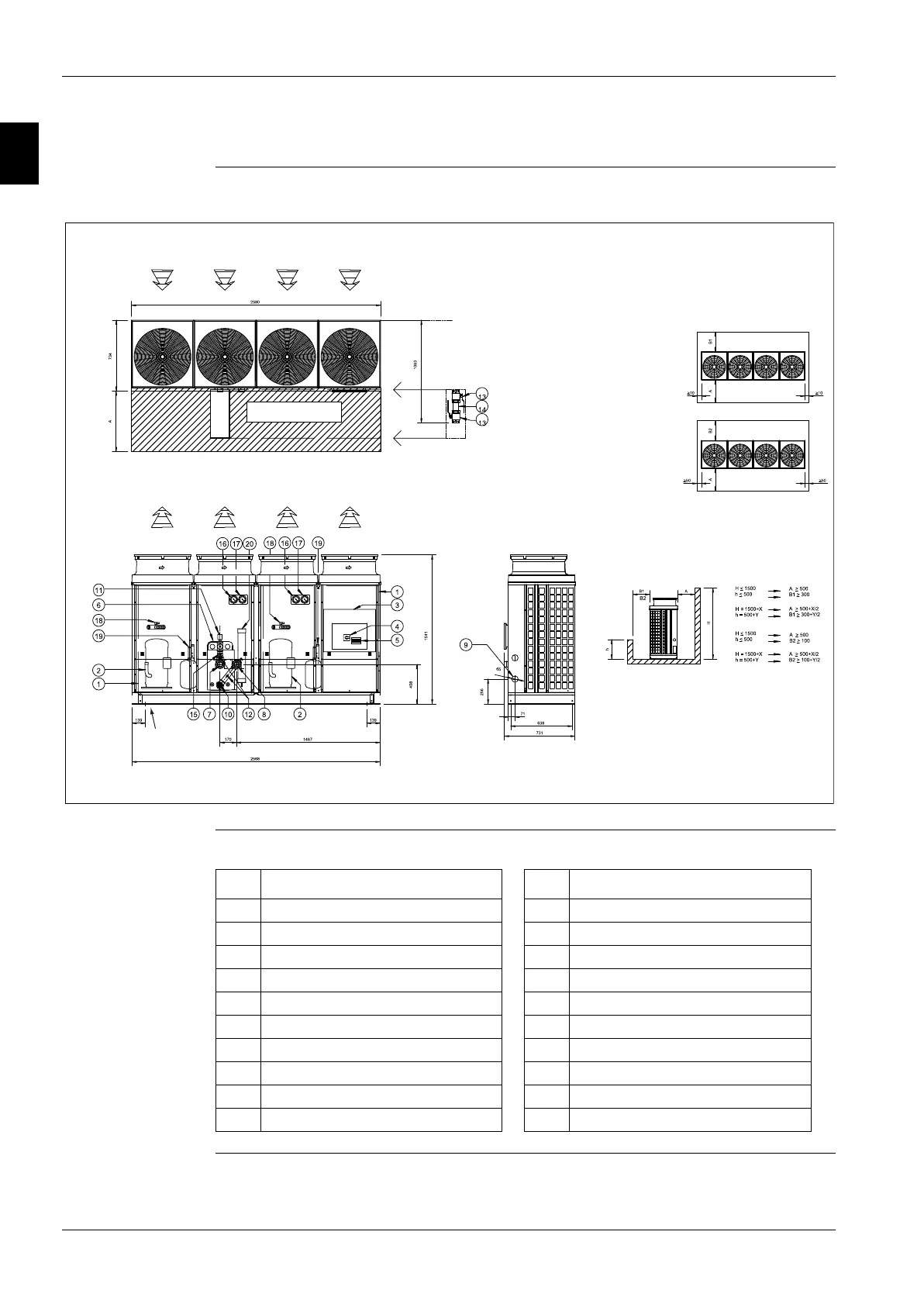

The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
CAUTION FOR FAN
SERVICE SPACE
FILTERKIT
(delivered with the unit)
No. Component No. Component
1 Air heat exchanger 11 Air purge
2 Compressor 12 Pressure port
3 Switch box 13 Ball valve
4 Main switch 14 Water filter
5 Digital display controller 15 Flow switch
6 Water heat exchanger 16 High pressure gauge (optional)
7 Water IN connection: 2” M BSP 17 Low pressure gauge (optional)
8 Water OUT connection: 2” M BSP 18 4-way valve (only on H/P models)
9 Power supply intake 19 Accumulator (only on H/P models)
10 Drain 20 Liquid receiver (only on H/P models)
