1.27 Outlook Drawing: EUWAB16KBZW1/EUWAB16KBZW1
EUWAB16KBZW1/
EUWAB16KBZW1

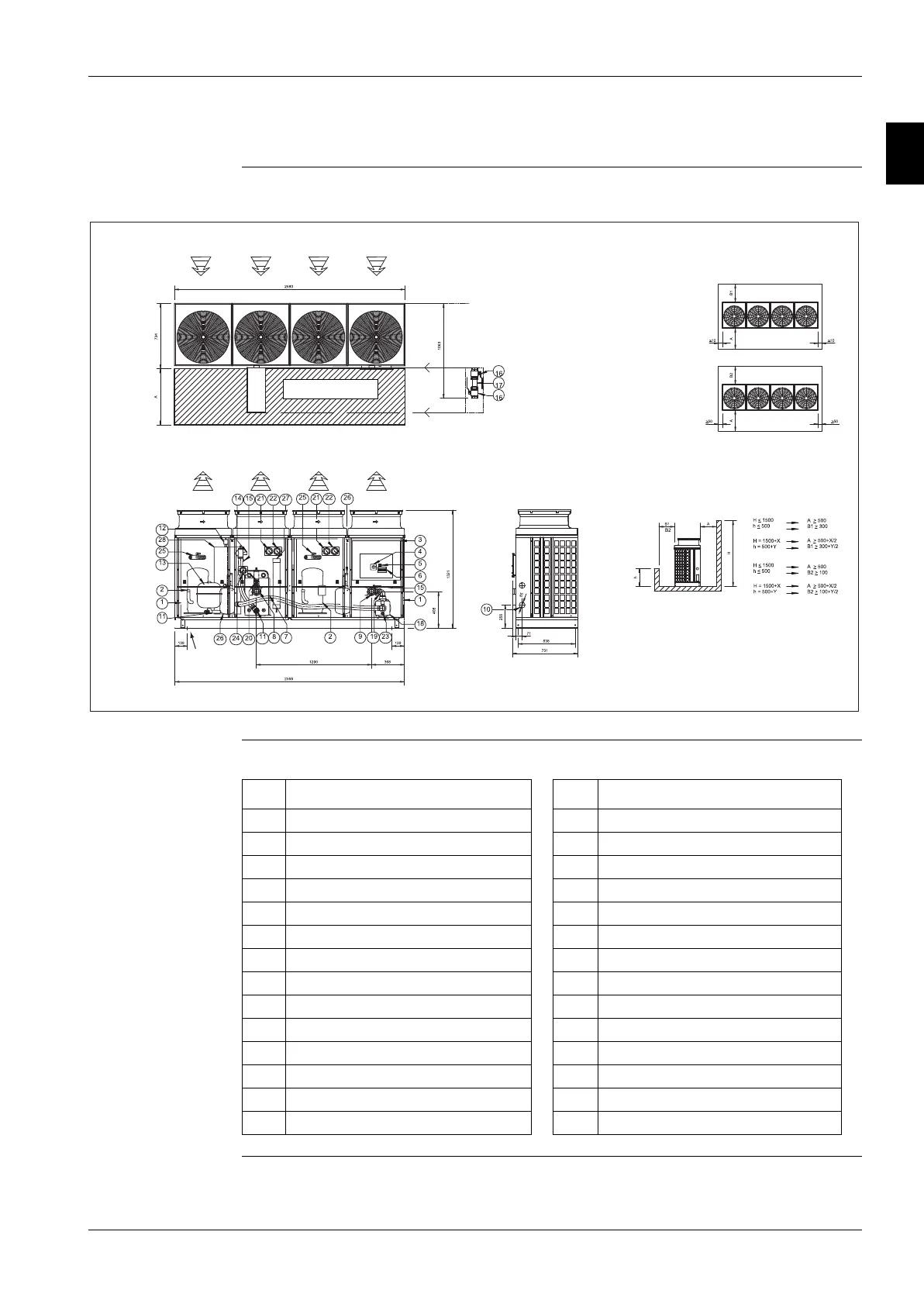

The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components
FREE SPACE B1/B2
FREE SPACE MIN 3m
CAUTION FOR FAN
FIXATION
4XØ15
CAUTION FOR FAN
SERVICE SPACE
FILTERKIT
(delivered with the unit)
No. Component No. Component
1 Air heat exchanger 15 Pressure port
2 Compressor 16 Ball valve
3 Switch box 17 Water filter
4 Main switch 18 Pump
5 Pump switch 19 Regulation valve
6 Digital display controller 20 Flow switch
7 Water heat exchanger 21 High pressure gauge (optional)
8 Water IN connection: 2” M BSP 22 Low pressure gauge (optional)
9 Water OUT connection: 2” M BSP 23 Pump drain
10 Power supply intake 24 Water pressure gauge
11 Drain 25 4-way valve (only on H/P models)
12 Air purge 26 Accumulator (only on H/P models)
13 Expansion vessel 27 Liquid receiver (only on H/P models)
14 Safety valve 28 Buffertank
