PowerScan™ PD9130/PBT9100/PM9100

Code 128 Set Length 2

This feature specifies one of the bar code lengths for Code 128 Length Con-

trol. Length 2 is the maximum label length if in Variable Length Mode, or the

second fixed length if in Fixed Length Mode. Length includes the bar code’s

data characters only.

The length can be set from 1 to 80 char

acters. A setting of 0 specifies to

ignore this length (only one fixed length).

Table 7 provides examples for setting Length 2. See page 298 for detailed

instructions on setting this feature.

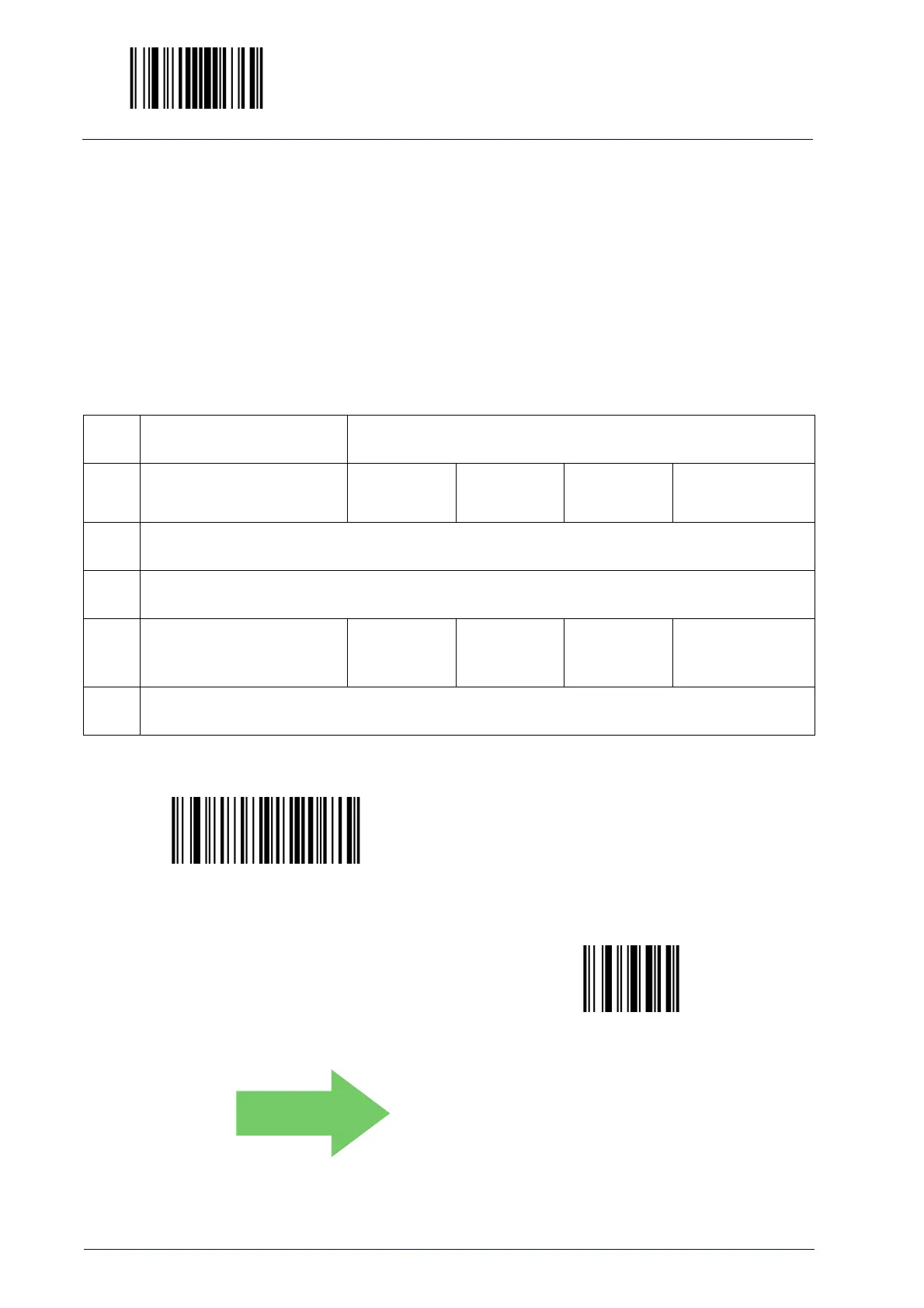

Table 7. Code 128 Length 2 Setting Examples

STEP ACTION EXAMPLES

1 Desired Setting

00 (Ignore This

Length)

07 Characters 15 Characters 80 Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT CODE 128 LENGTH 2 SETTING

Scan Two Characters From

Appendix D, Keypad

‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘8’ and 0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Code 128 Length 2 Setting

To configure this feature, scan the ENTER/

EXIT bar code above, then the bar code at

left followed by digits from the Alphanu-

meric characters in Appendix D, Keypad

representing your desire

d character(s). End

by scanning the ENTER/EXIT bar code

again.

Make a mistake? Scan the CANCEL bar code to abort

and not save the entry string. You can then start

again at the beginning.

CANCEL

DEFAULT

80 = Length 2 is 80 Characters
