Enter/Exit Programming Mode
Product Reference Guide
155
Codabar Set Length 2
This feature specifies one of the bar code lengths for Codabar Length Con-
trolCodabar Length Control. Length 2 is the maximum label length if in
Variable Length Mode, or the second fixed length if in Fixed Length Mode.
The length includes the bar code’s sta
rt, stop, check and data characters.
The length must include at least one data character.
The length can be set from 3 to 50 characters. A setting of 0 specifies to
ignore this length (only one fixed length).
Table 15 provides examples for setting Length 2. See page 298 for detailed
instructions on setting this feature.

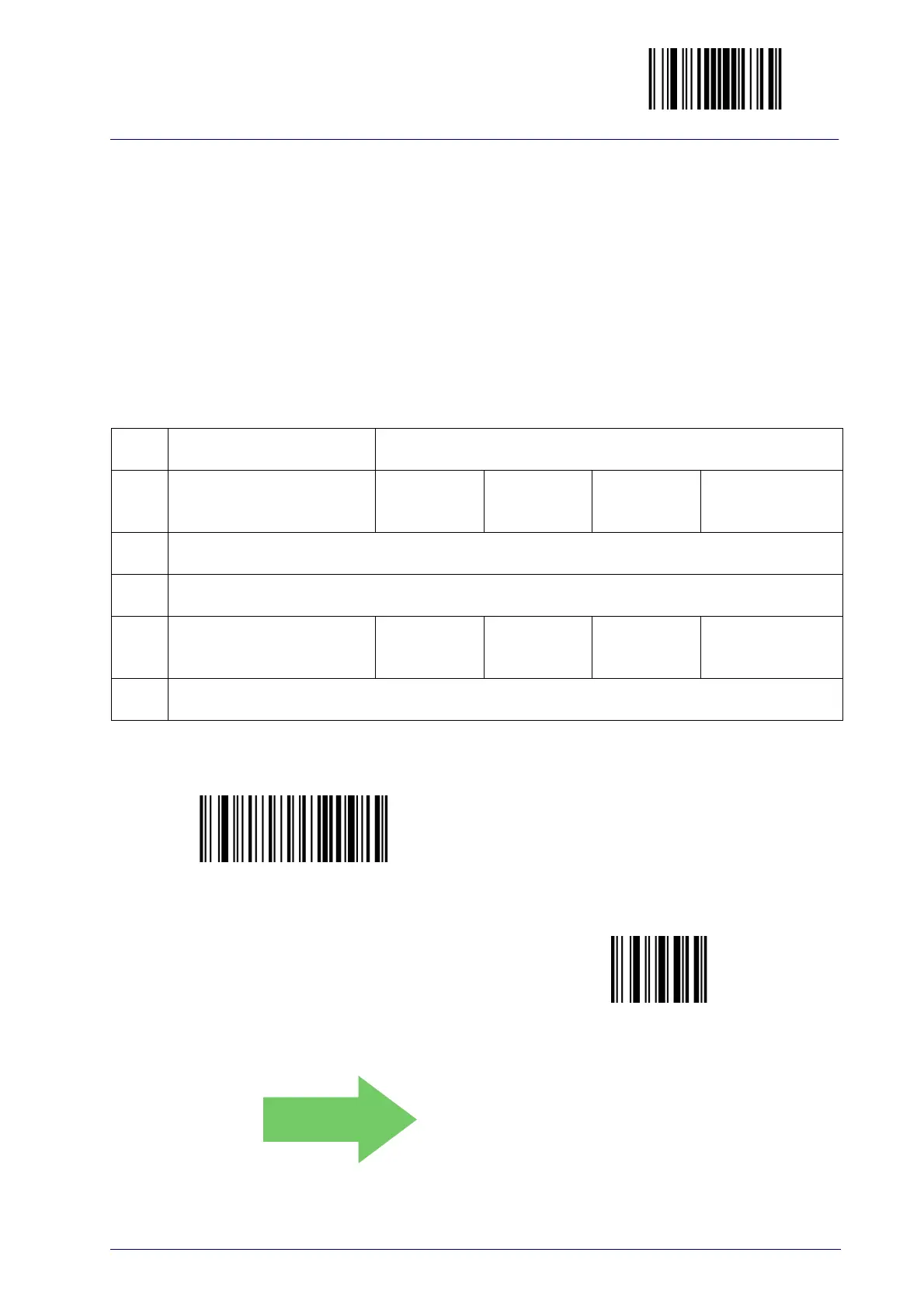

Table 15. Codabar Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with
leading zeroes)
00 Ignore This
Length
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in
Appendix D, Keypad representing your desired
character(s). End by scanning the ENTER/EXIT bar
code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
50 = Length 2 is 50 Characters
To Next Page
