Enter/Exit Programming Mode
140 PowerScan™ PD9130/PBT9100/PM9100
Standard 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for Standard 2 of 5 Length
Control. Length 2 is the maximum label length if in Variable Length Mode,
or the second fixed length if in Fixed Length Mode. Length includes the bar
code’s check and da
ta characters.
The length can be set from 1 to 50 char
acters. A setting of 0 specifies to
ignore this length (only one fixed length).
Table 11 provides examples for setting Length 2. See page 298 for detailed
instructions on setting this feature.

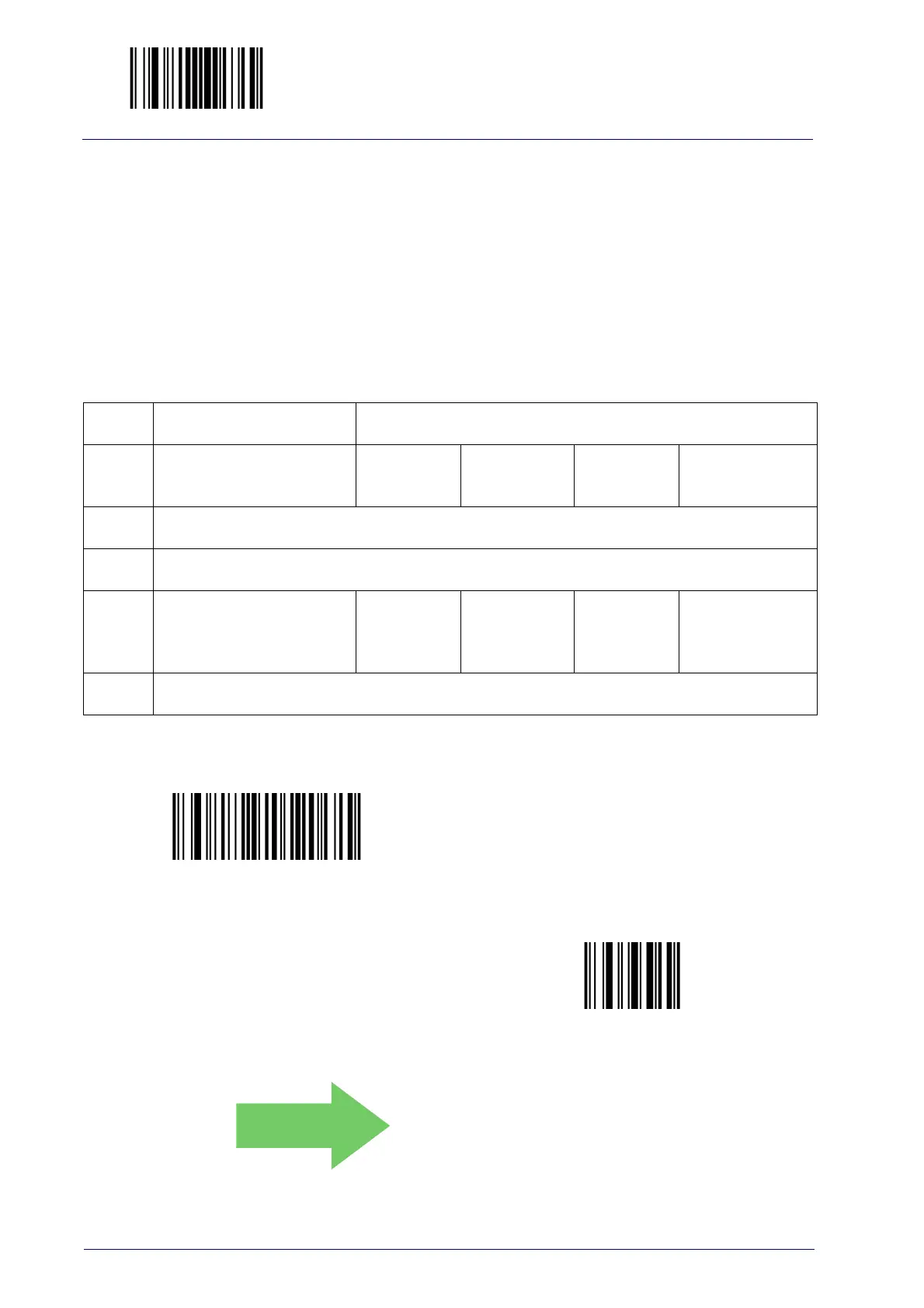

Table 11. Standard 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (pad with
leading zeroes)
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT STANDARD 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters
From
Appendix D,
Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Standard 2 of 5 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in
Appen-
dix D, Keypad representing your desired charac-
ter(s). End by scanning the
ENTER/EXIT bar code
again.
Make a mistake? Scan the CANCEL
bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
