Enter/Exit Programming Mode
144 PowerScan™ PD9130/PBT9100/PM9100
Industrial 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for Industrial 2 of 5
Length Control. Length 2 is the maximum label length if in Variable Length
Mode, or the second fixed length if in Fixed Length Mode. Length includes
the bar code’s check, data, and full-ASCII
shift characters. The length does
not include start/stop characters.
The length can be set from 1 to 50 characters. A setting of 0 specifies to
ignore this length (only one fixed length).

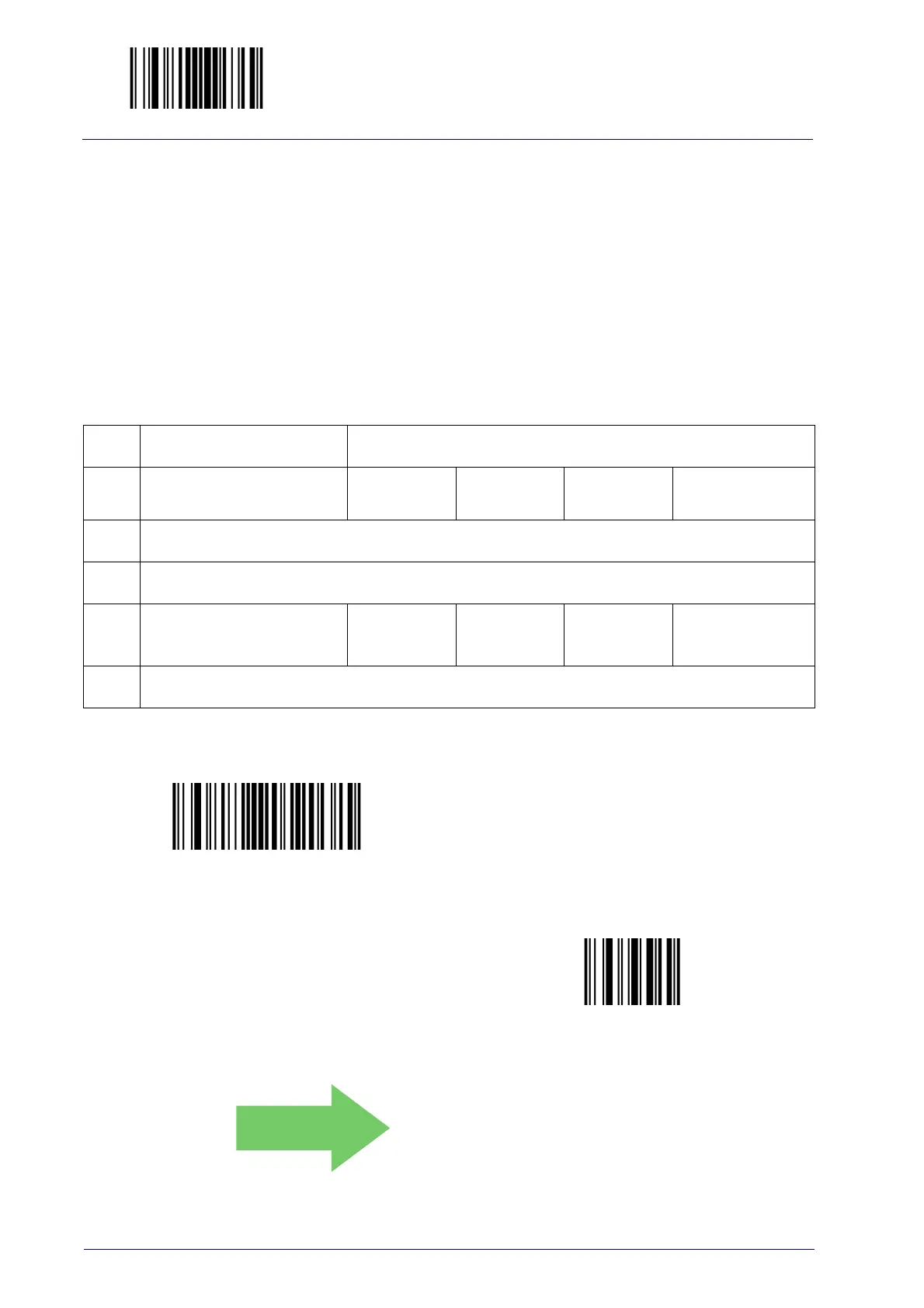

Table 13 provides examples for setting Length 2. See page 298 for detailed
instructions on setting this feature.
Table 13. Industrial 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Industrial 2 of5 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by
digits from the Alphanumeric characters in
Appen-
dix D, Keypad
representing your desired charac-
ter(s). End by scanning the
ENTER/EXIT bar code
again.
Make a mistake? Scan the CANCEL
bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
