Enter/Exit Programming Mode
174
PowerScan™ PD9130/PBT9100/PM9100
GS1 DataBar™ Expanded Set Length 2
This feature specifies one of the bar code lengths for GS1 DataBar™
Expanded Length Control. Length 2 is the maximum label length if in Vari-
able Length Mode, or the second fixed l
ength if in Fixed Length Mode.
Length includes the bar code’s data charact
ers only. The length can be set
from 1 to 74 characters. A setting of 0 specifies to ignore this length (only
one fixed length).
Table 19 provides examples for setting Length 2. See page 298 for detailed
instructions on setting this feature.

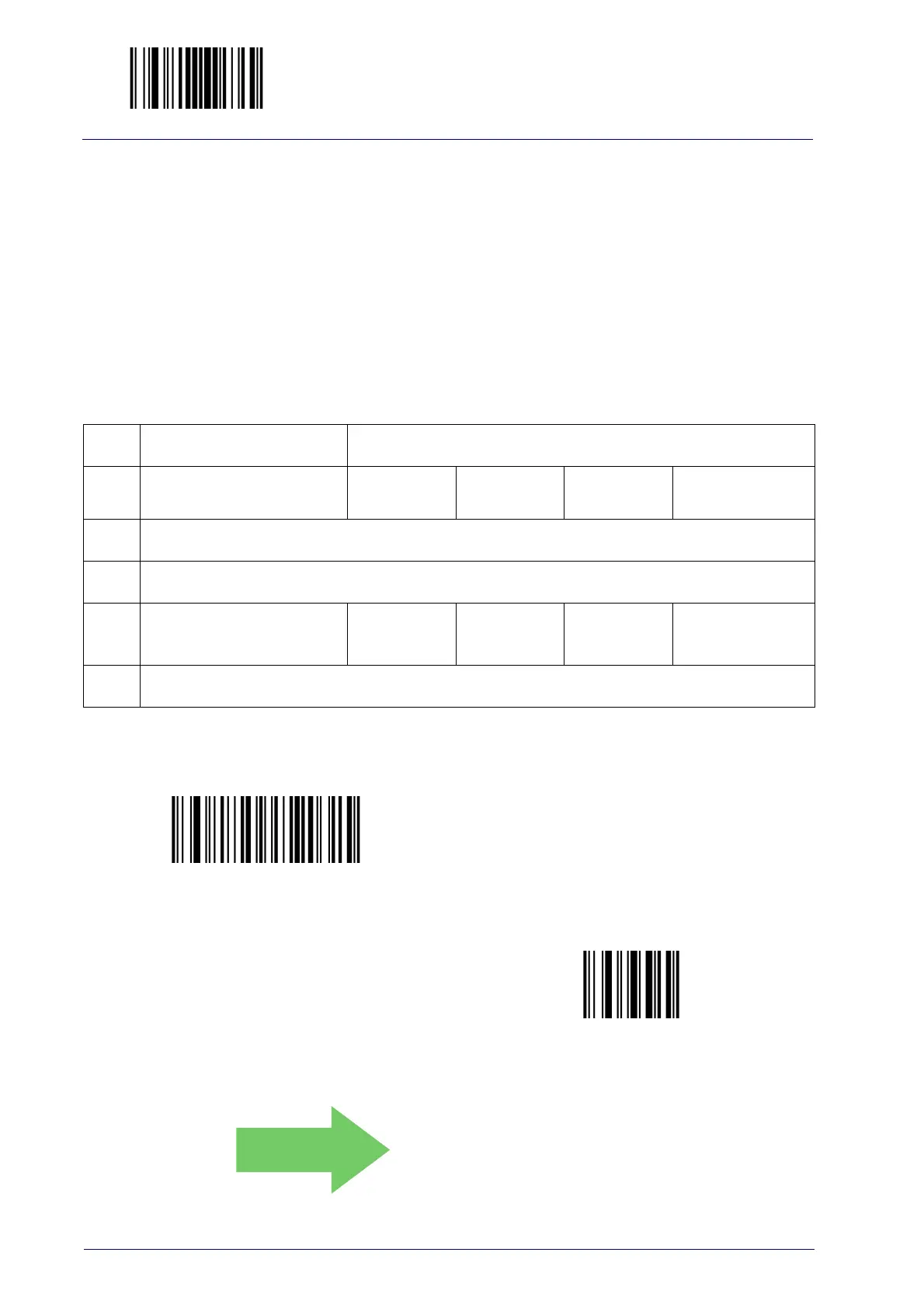

Table 19. GS1 DataBar™ Expanded Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (ignore sec-
ond length)
07 Characters 52 Characters 74 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select GS1 DataBar™ Expanded Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar
code above, then the bar code at left followed by dig-
its from the Alphanumeric characters in
Appendix
D, Keypad
representing your desired character(s).
End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
an
d not save the entry string. You can then start
again at the beginning.
CANCEL
74 = Length 2 is 74 Characters
To Next Page
