SETUP
24 POWERSCAN™ PD/PM/PBT9600

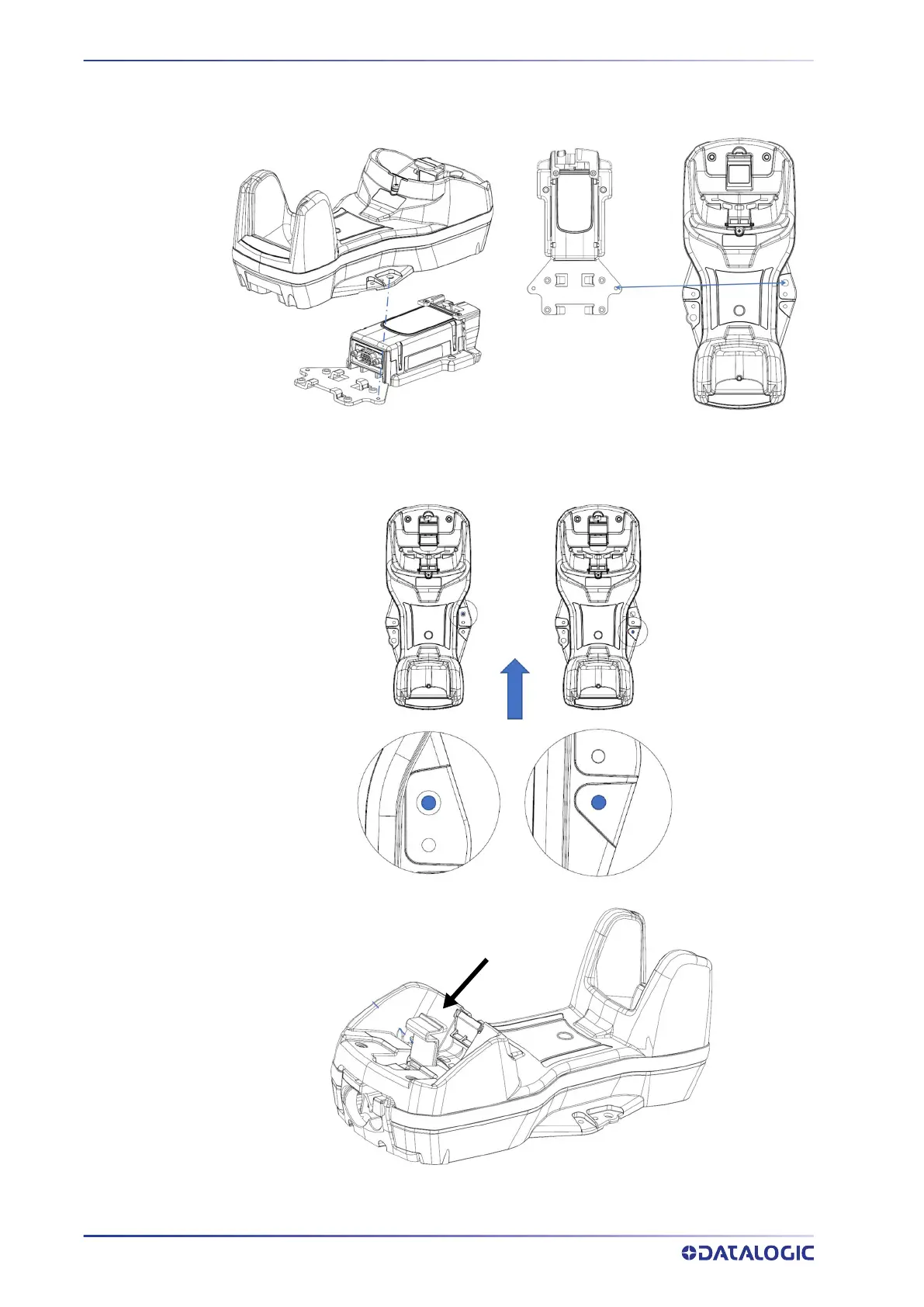

6. With the lever still unlocked, align the base station with the connection module
until you see the sphere inside the bigger hole on the right.
7. Move the base station up until the sphere is aligned with the smaller hole, then
lock the lever to secure the connection module.
Lock the lever

Datalogic PowerScan Series Specifications

General

Resolution	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Light Source	Visible Laser Diode
Connectivity	USB, RS-232, Keyboard Wedge
Durability	Industrial Grade
Decode Capability	1D and 2D barcodes
Interface	RS-232, USB, Keyboard Wedge
Humidity	5% to 95% non-condensing
IP Rating	IP65
Operating Temperature	0°C to 50°C
