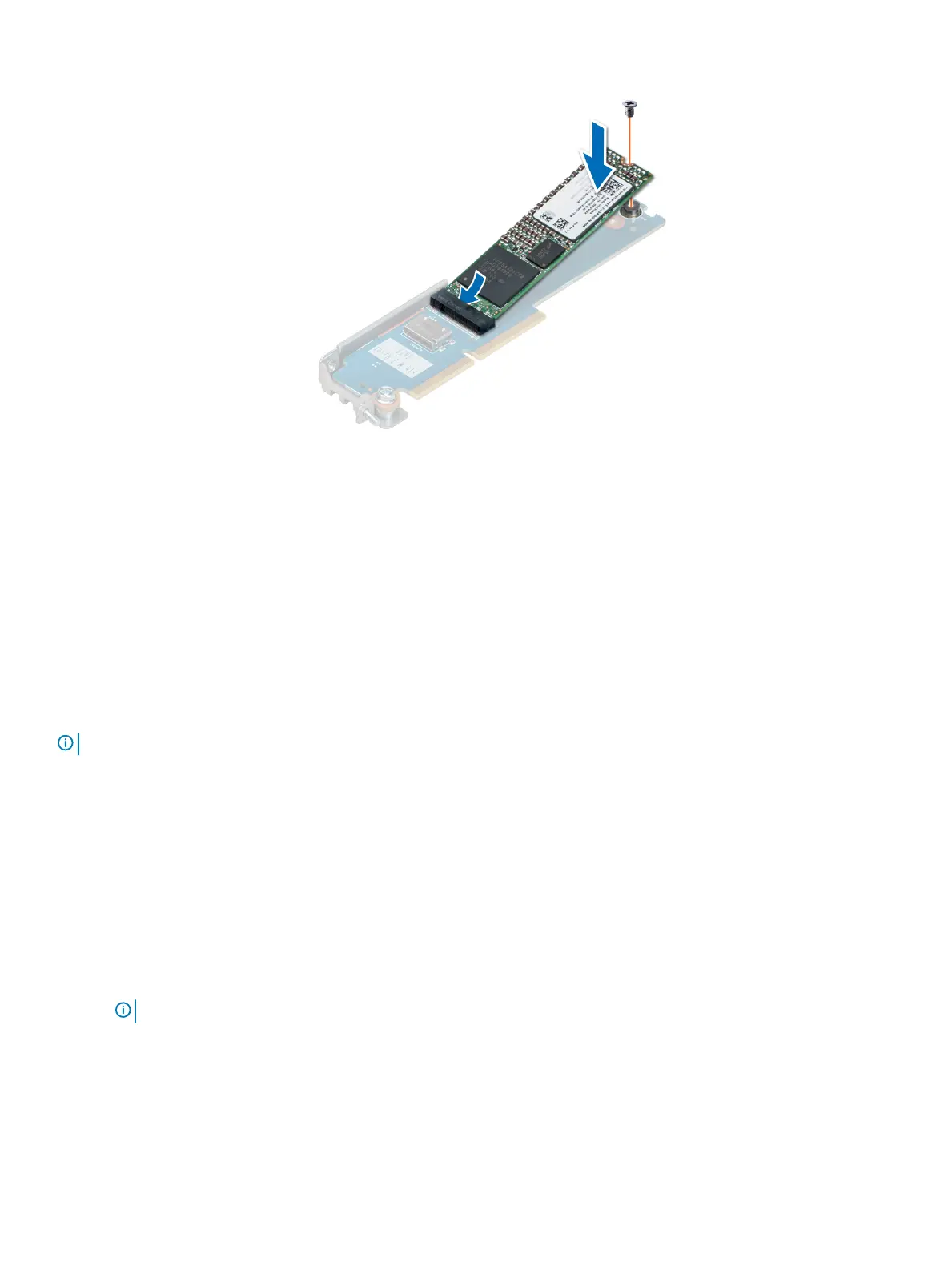

Figure 73. Installing the M.2 BOSS card
Next steps
1 Install the M.2 BOSS module.
2 Follow the procedure listed in the After working inside your sled.
Mezzanine card
Your system supports two mezzanine cards:
• PCIe mezzanine card slot A supports fabric A. This card must match the fabric type of I/O modules installed in I/O module bays A1.
• PCIe mezzanine card slot B supports fabric B. This card must match the fabric type of I/O modules installed in I/O module bays B1.
NOTE
: The Mezzanine B1 card requires processor 2 to be installed.
Removing the Mezzanine card
Prerequisites
1 Follow the safety guidelines listed in Safety Instructions.
2 Follow the procedure listed in Before working inside the sled.
Steps
1 Use the Phillips #2 screwdriver, loosen the captive screws that secure the Mezzanine card to the system.
2 Lift the Mezzanine card out of the sled.
NOTE
: To prevent damage to Mezzanine card, you must hold the card only by its edges.
100 Installing and removing system components
To Next Page
