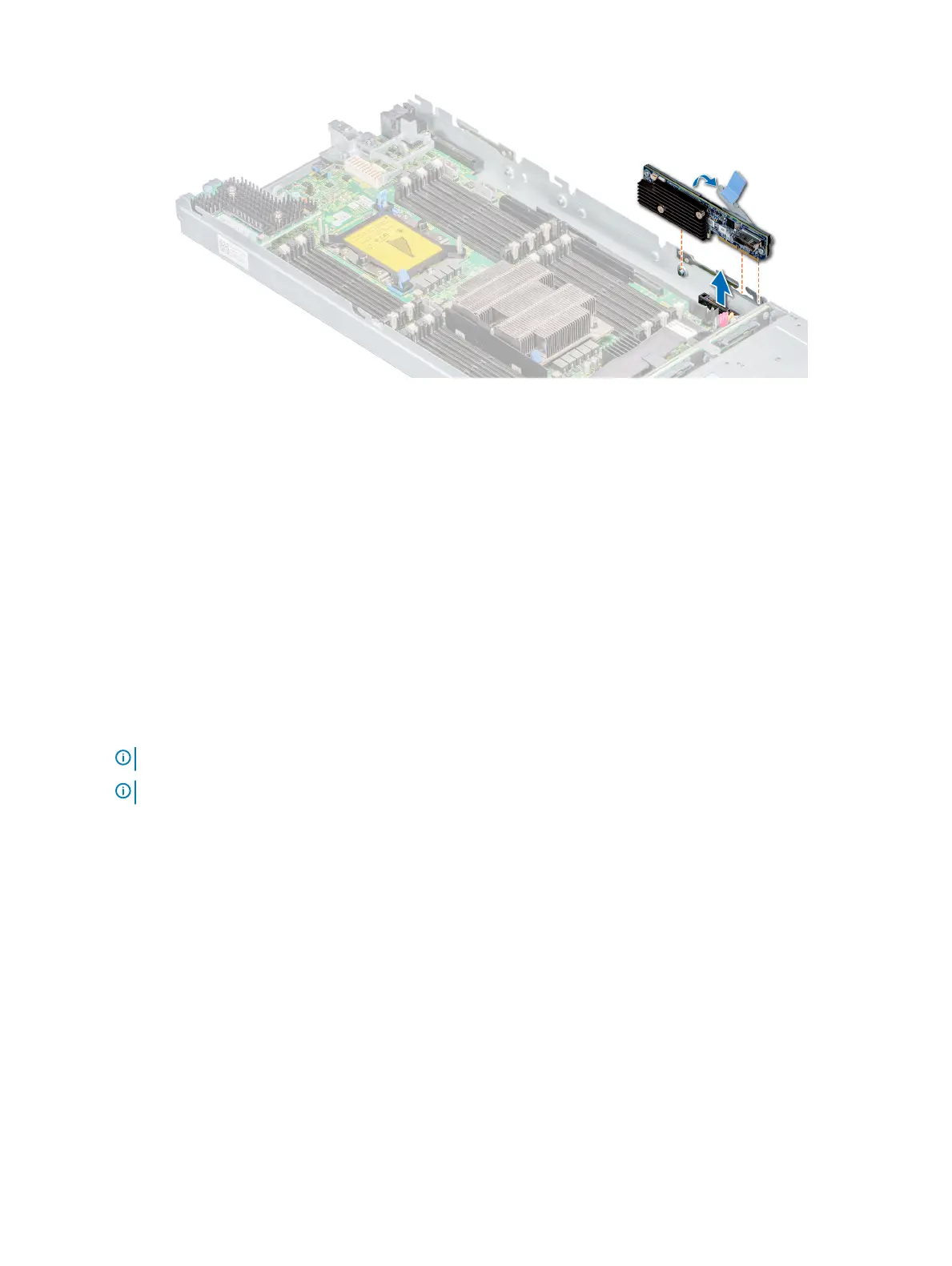

Figure 62. Removing the PERC card (HBA330)
Next step
1 Follow the procedure listed in After working inside your sled.
Installing the PERC card
Prerequisites
1 Follow the safety guidelines listed in Safety Instructions.
2 Follow the procedure listed in Before working inside the sled.
Steps
1 Pull the blue pull tag to raise the lever up on the PERC card.
2 Align the connector on the PERC card with the connector on the system board.
NOTE
: The procedure to install the HBA330 MX or a H730P MX PERC card is the same.
NOTE: The MX740c supports both HBA330 MX or H730P MX PERC card.
3 Align the guides on the PERC card with the slots on the system.
4 Press the PERC card to rmly seat in the system board connector.
Installing and removing system components
89
