Dell EMC PowerEdge MX740c User Manual

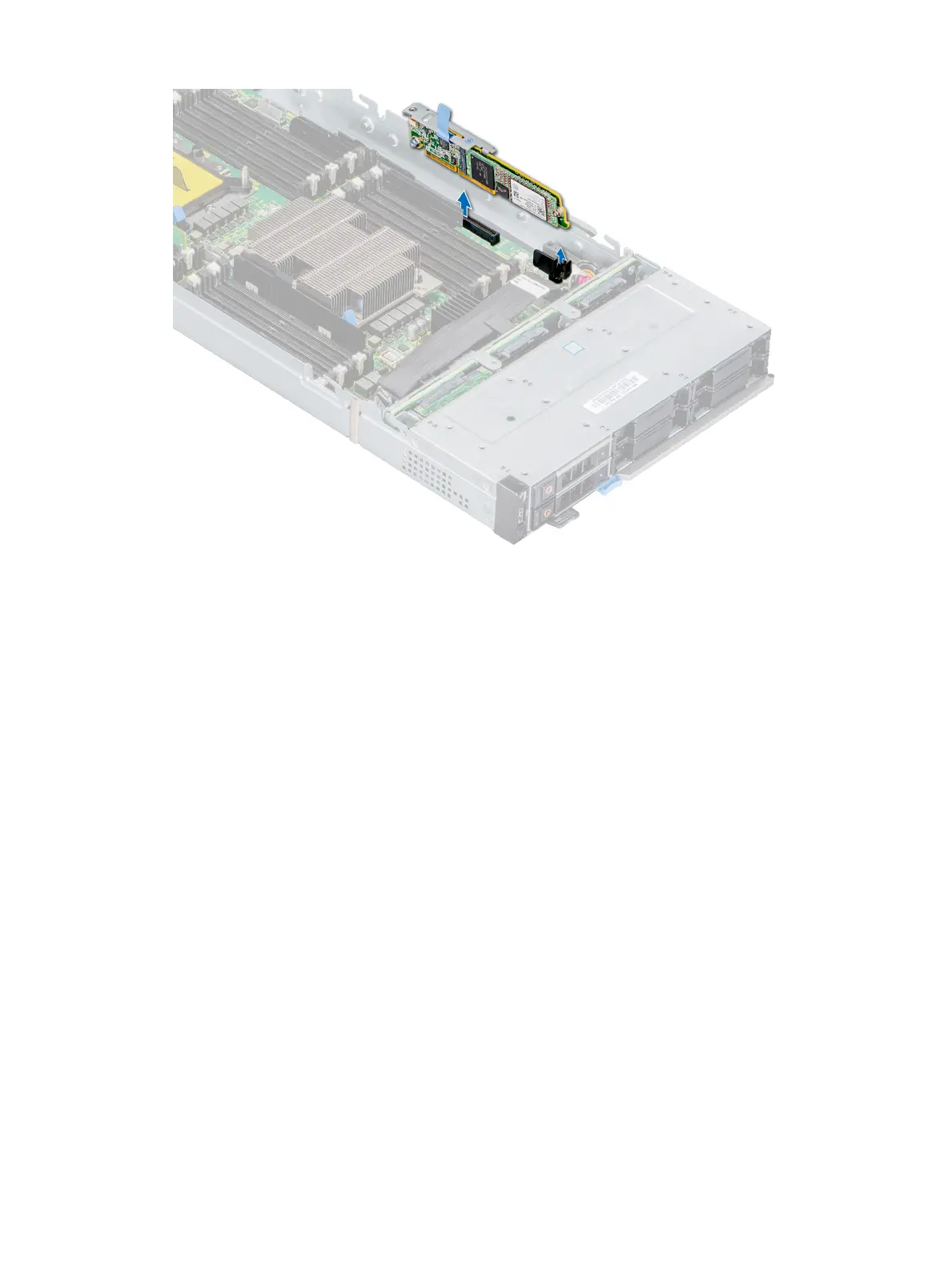

Figure 70. Removing the M.2 BOSS module
Next step
1 Install the M.2 BOSS module.
Installing the M.2 BOSS module
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in the Before working inside your sled.
Steps
1 Align the M.2 BOSS module connector with the connectors on the system board and the guide on the M.2 BOSS module with the
guiding slot on the system board.
2 Press the touch point on the M.2 BOSS module until it is rmly seated.
Installing and removing system components
97
