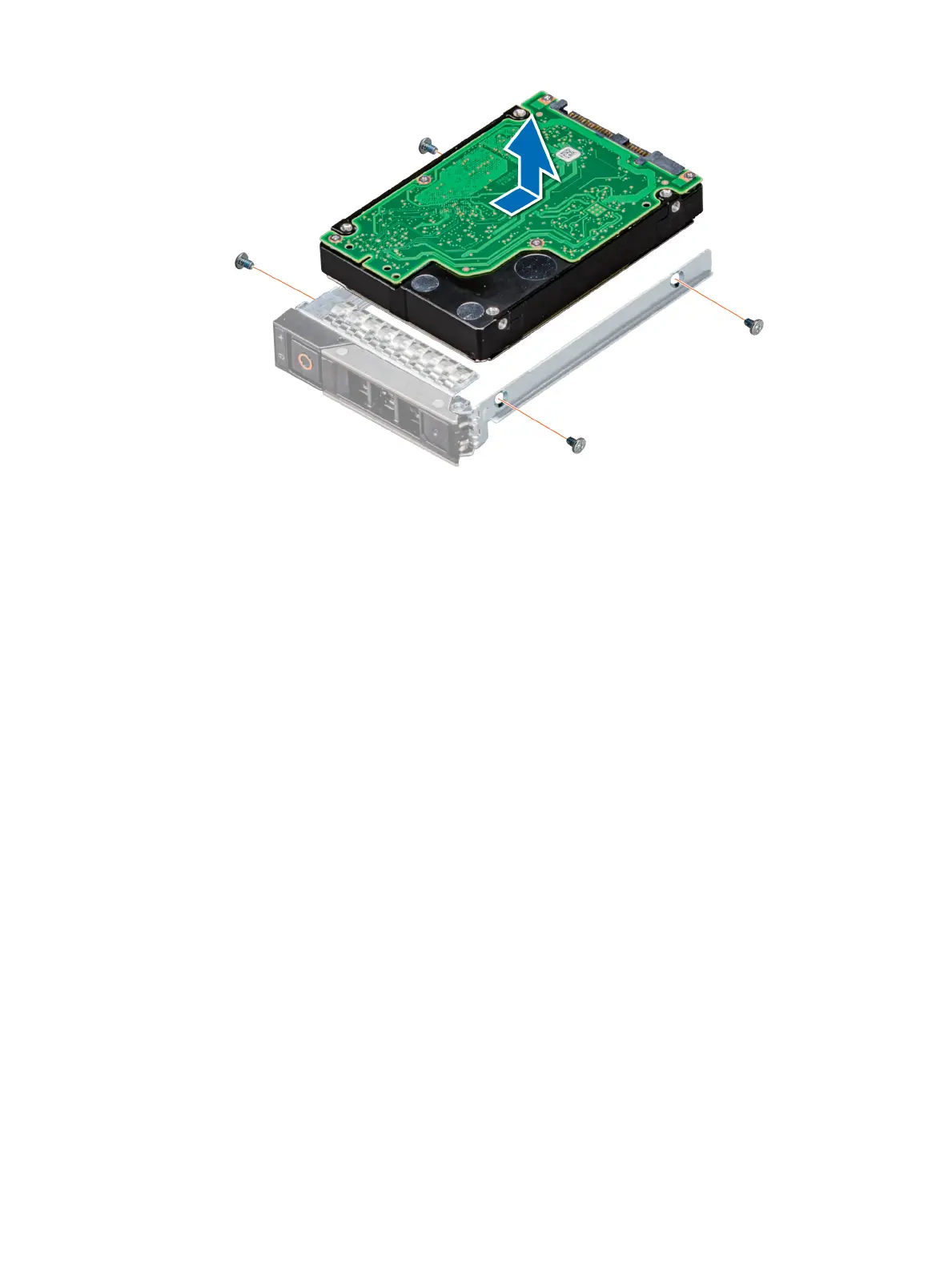

Figure 24. Removing a drive from drive carrier
Next step
1 Replace the drive into the drive carrier.
Installing a drive into drive carrier
Prerequisite
1 Follow the safety guidelines listed in Safety instructions
Steps
1 Insert the drive into the drive carrier, with the connector end of the drive towards the back of the carrier.
2 Align the screw holes on the drive with the screw holes on the drive carrier.
3 Using the Phillips #1 screwdriver, replace the screws to secure the drive to the drive carrier.
54
Installing and removing system components
