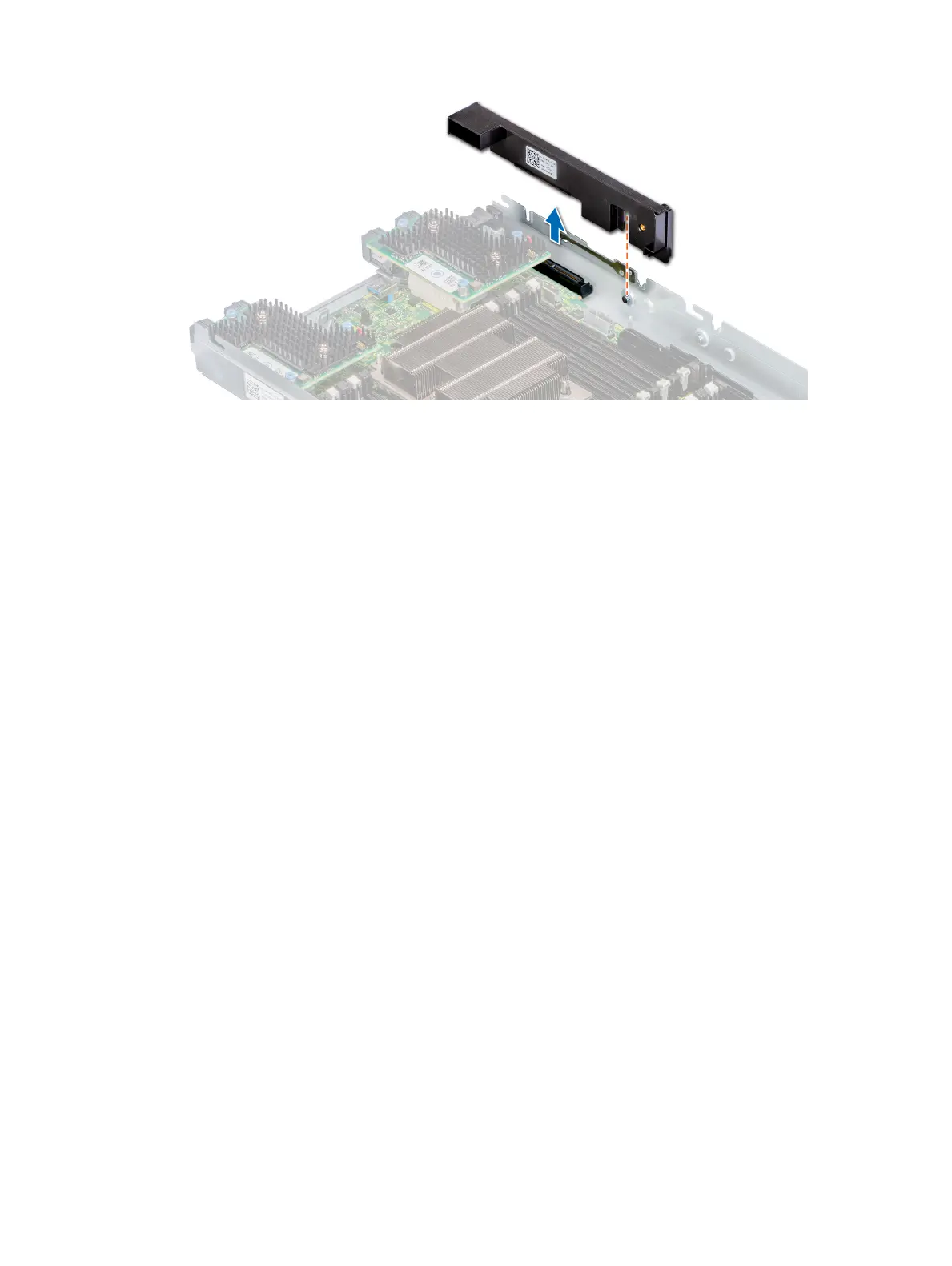

Figure 78. Removing the mini Mezzanine card blank
Next step
1 Follow the procedure listed in After working inside your sled.
Installing the mini Mezzanine card blank
Prerequisites
1 Follow the safety guidelines listed in Safety Instructions.
2 Follow the procedure listed in Before working inside the sled.
Step
Align the guiding groove of the card on the slot and push down to insert the mini Mezzanine blank to the system board.
Installing and removing system components
105
