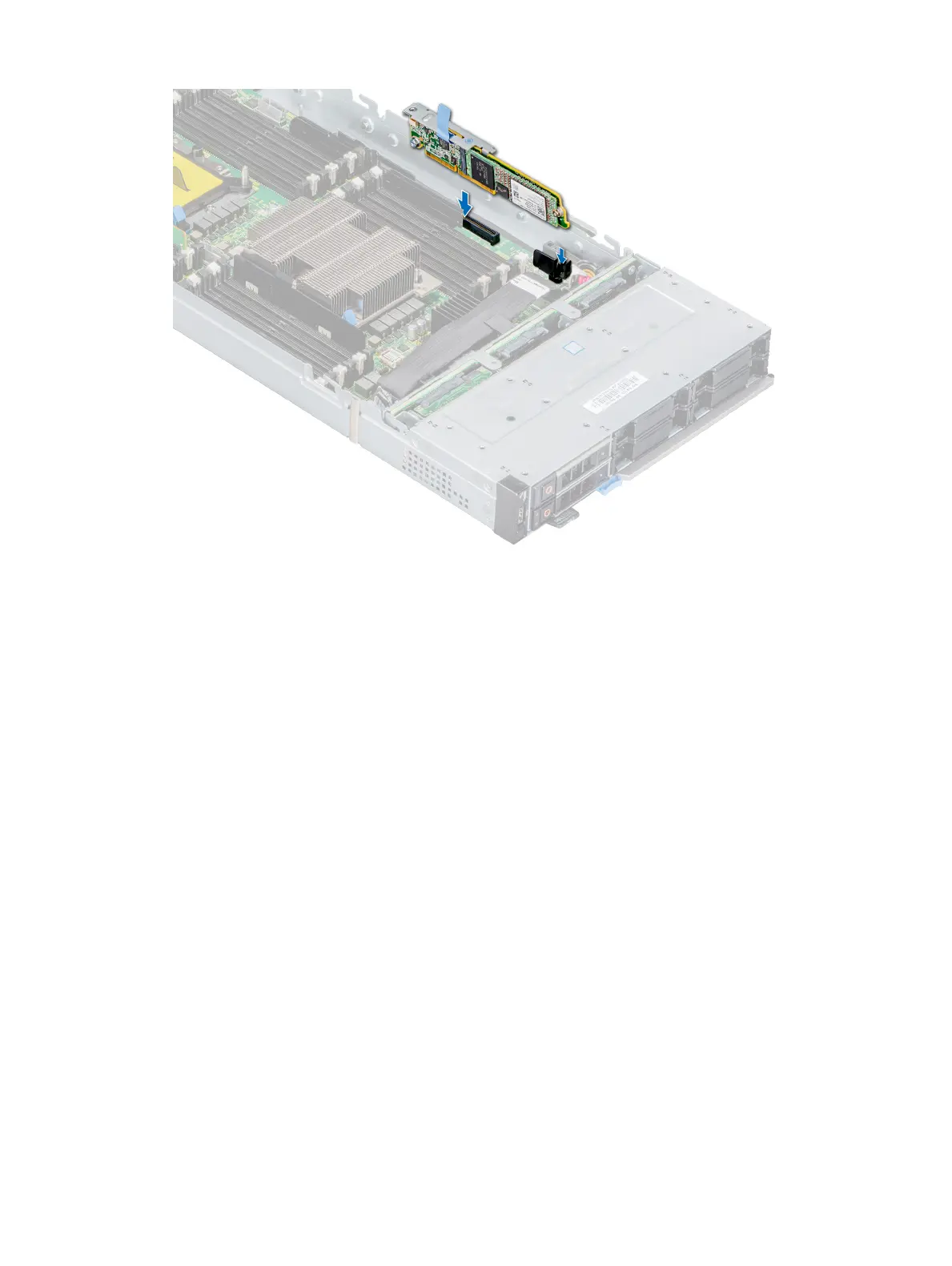

Figure 71. Installing the M.2 boss module
Next step
Follow the procedure listed in After working inside your sled.
Removing the M.2 BOSS card
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions.
2 Follow the procedure listed in the Before working inside your sled.
3 Remove the M.2 BOSS card.
Steps
1 Using the Phillips #1 screwdriver, remove the screw on the M.2 BOSS module.
2 Pull the card out of the connector, and lift the card away from the module.
98
Installing and removing system components
