Steps
1 Hold the drive backplane by the edges and lift it upwards to disengage the backplane from the guide pins.
2 Lift the backplane out of the sled.

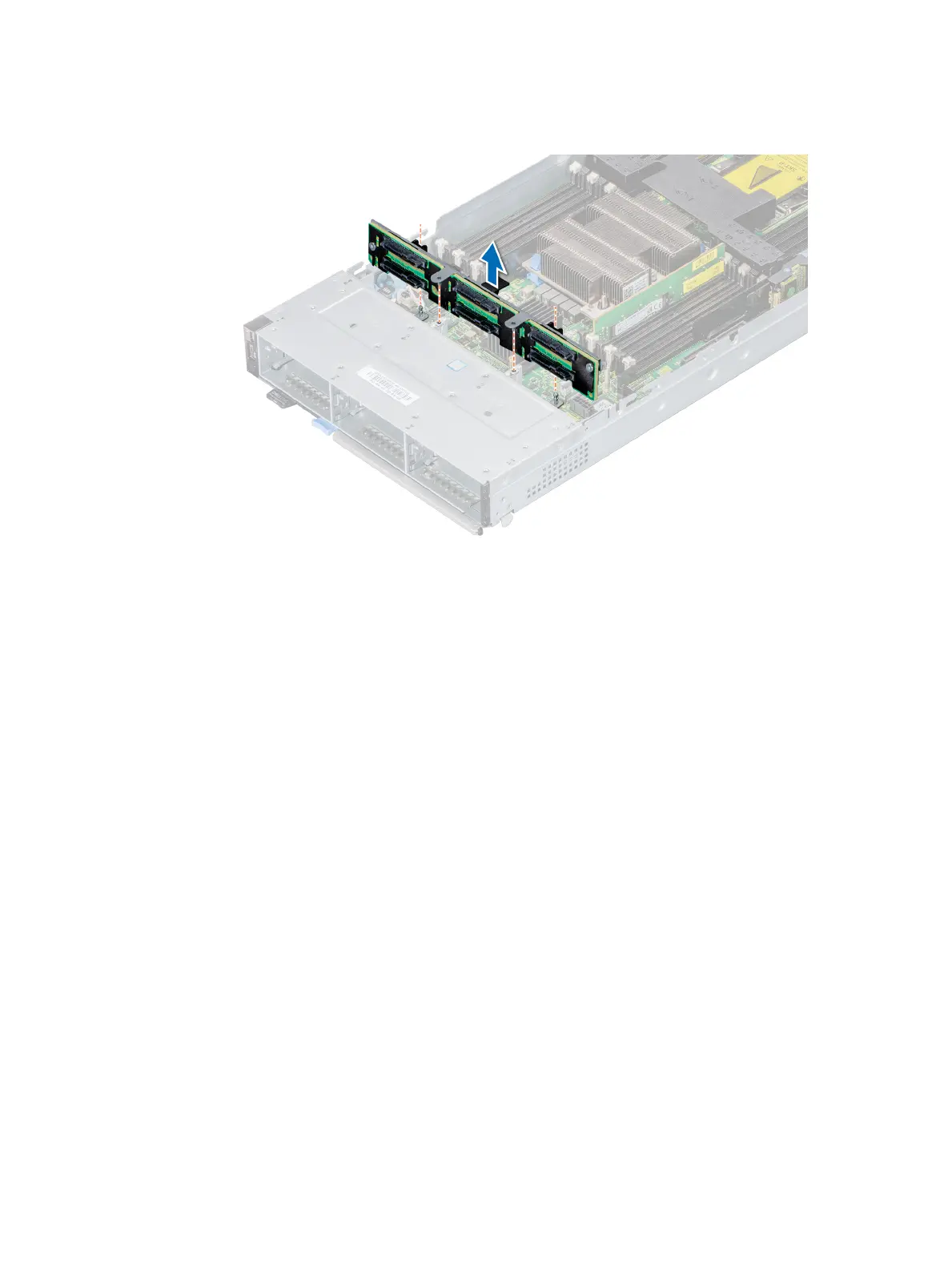

Figure 29. Removing drive backplane
Next step
1 Replace the drive backplane.
Installing drive backplane
Prerequisites
1 Follow the safety guidelines listed in Safety instructions
2 Follow the procedure listed in Before working inside the sled.
Steps
1 Align the guide pins on the drive backplane with the sled.
2 Lower the drive backplane, until it is fully seated.
Installing and removing system components
57
