CAUTION: If you are permanently removing the sled, install a sled blank promptly. Operating the enclosure without a
blank, for an extended time can result in overheating or performance loss.
Next step
1 Install the sled or the sled blank into the enclosure.
Installing the sled into enclosure
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
CAUTION: To prevent damage to the I/O connectors, do not touch the connectors or the connector pins.
Steps
1 Remove the I/O connector cover from the I/O connector(s) and store for future use.
CAUTION: To protect the I/O connector pins, install the I/O connector cover every time a sled is removed from the
enclosure.

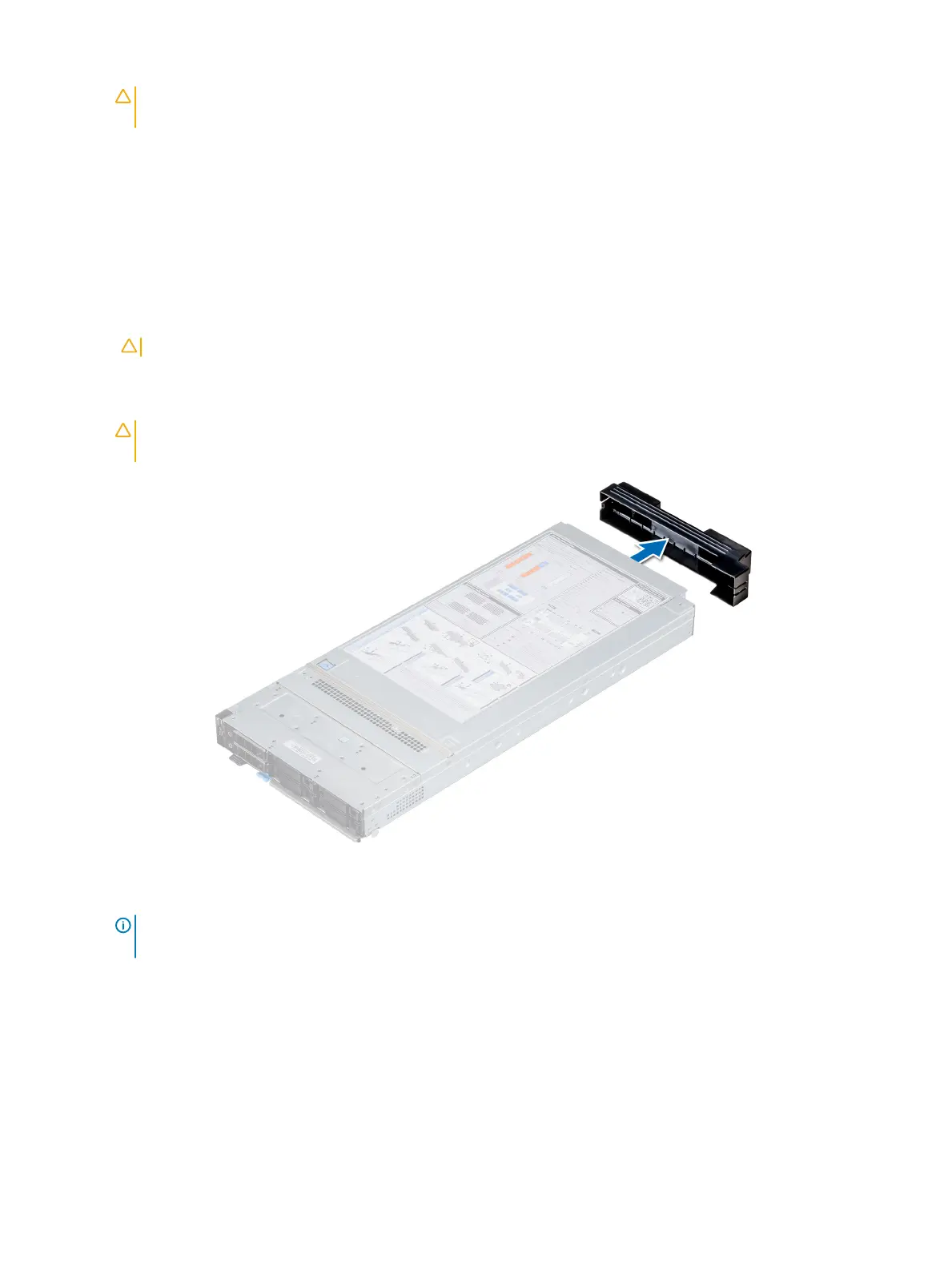

Figure 14. Removing the I/O connector cover from sled
NOTE
: The color of the I/O connector cover may
dier.
2 Press the blue release button on the sled to release the sled handle.
3 Holding the sled with both hands, align the sled with the compute sled-bay in the enclosure.
4 Slide the sled into the enclosure, until the sled handle is in the lock position.
5 Push the sled handle inwards so that it locks into place to secure the sled in the enclosure.
44
Installing and removing system components
To Next Page
