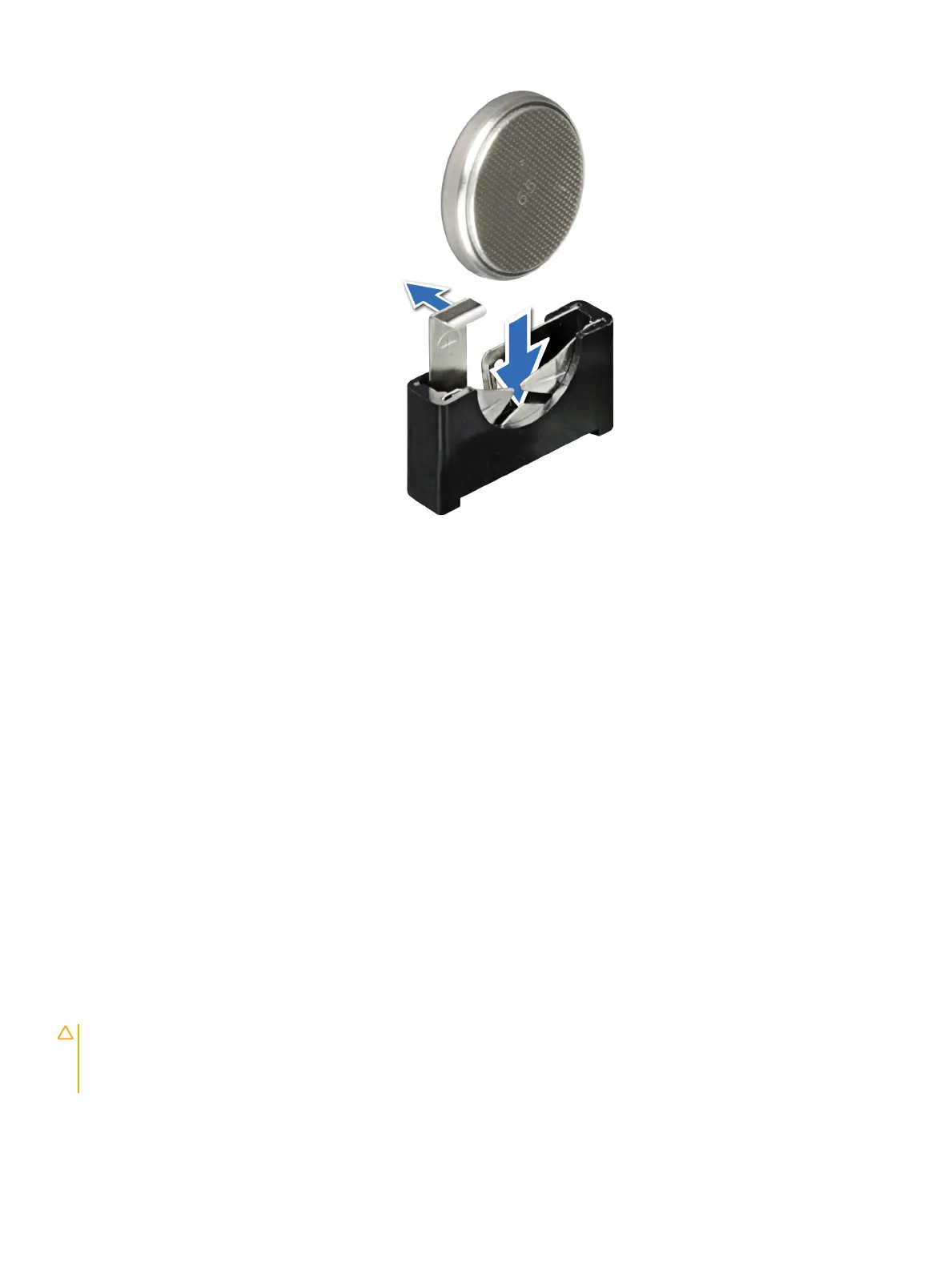

Figure 83. Installing the system battery
Next steps
1 Follow the procedure listed in After working inside your sled.
2 Enter the System Setup to conrm that the battery is operating properly.
3 Enter the correct time and date in the System Setup's Time and Date elds.
4 Exit the System Setup.
5 To test the newly installed battery, remove the system from the enclosure, for at least an hour.
6 Reinstall the system into the enclosure, after an hour.
7 Enter the System Setup and if the time and date are still incorrect, see Getting help.
System board
A system board (also known as the motherboard) is the main printed circuit board in the system with dierent connectors used to connect
dierent components or peripherals of the system. A system board provides the electrical connections to the components in the system to
communicate.
Removing the system board
Prerequisites
CAUTION
: If you are using the Trusted Platform Module (TPM) with an encryption key, you may be prompted to create a
recovery key during program or System Setup. Be sure to create and safely store this recovery key. If you replace this system
board, you must supply the recovery key when you restart your system or program before you can access the encrypted data on
your drives.
110 Installing and removing system components
