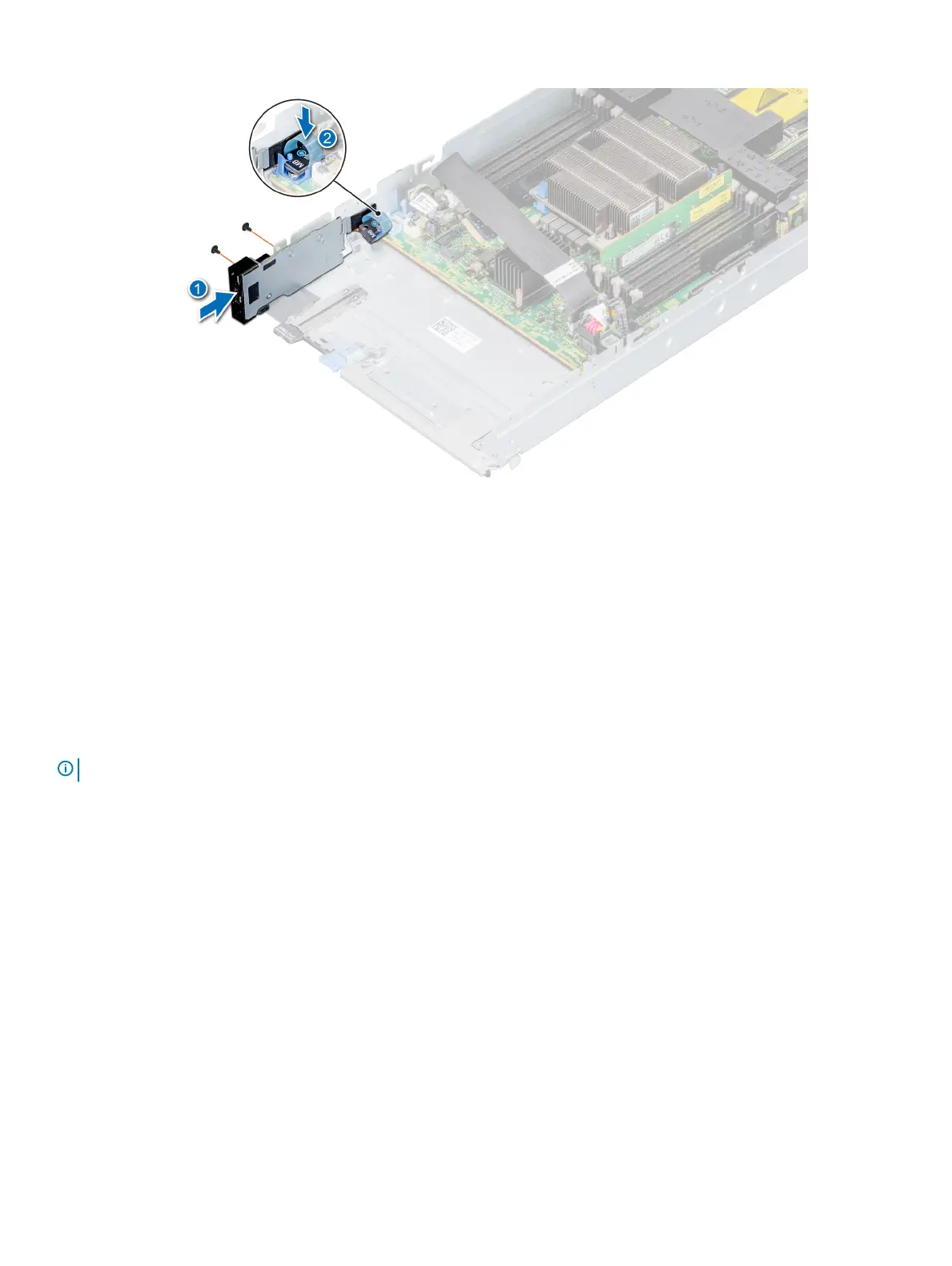

Figure 47. Installing the control panel
Next steps
1 Install the drive cage.
2 Install the drives.
3 Follow the procedure listed in the After working inside your sled.
System memory
The system supports DDR4 registered DIMMs (RDIMMs) and load reduced DIMMs (LRDIMMs). System memory holds the instructions
that are executed by the processor.
NOTE
: MT/s indicates DIMM speed in MegaTransfers per second.
Memory bus operating frequency can be maximum of 2666 MT/s depending on the following factors:
• DIMM type (RDIMM or LRDIMM)
• System prole selected (for example, Performance Optimized, or Custom [can be run at high speed or lower])
• Maximum supported DIMM frequency of the processors
The PowerEdge MX740c system contains 24 memory sockets split into two sets of 12 sockets, one set per processor. Each 12-socket set is
organized into six channels.
70
Installing and removing system components
