Installing the processor into a processor and heat sink module
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in the Before working inside the sled.
Steps
1 Place the processor in the processor tray.
NOTE: Ensure that the pin 1 indicator on the processor tray is aligned with the pin 1 indicator on the processor.
2 Flex the outer edges of the bracket around the processor ensuring that the processor is locked into the clips on the bracket.
NOTE: Ensure that the pin 1 indicator on the bracket is aligned with the pin 1 indicator on the processor before placing
the bracket on the processor.
NOTE: Ensure that the processor and the bracket are placed in the tray before you install the heat sink.

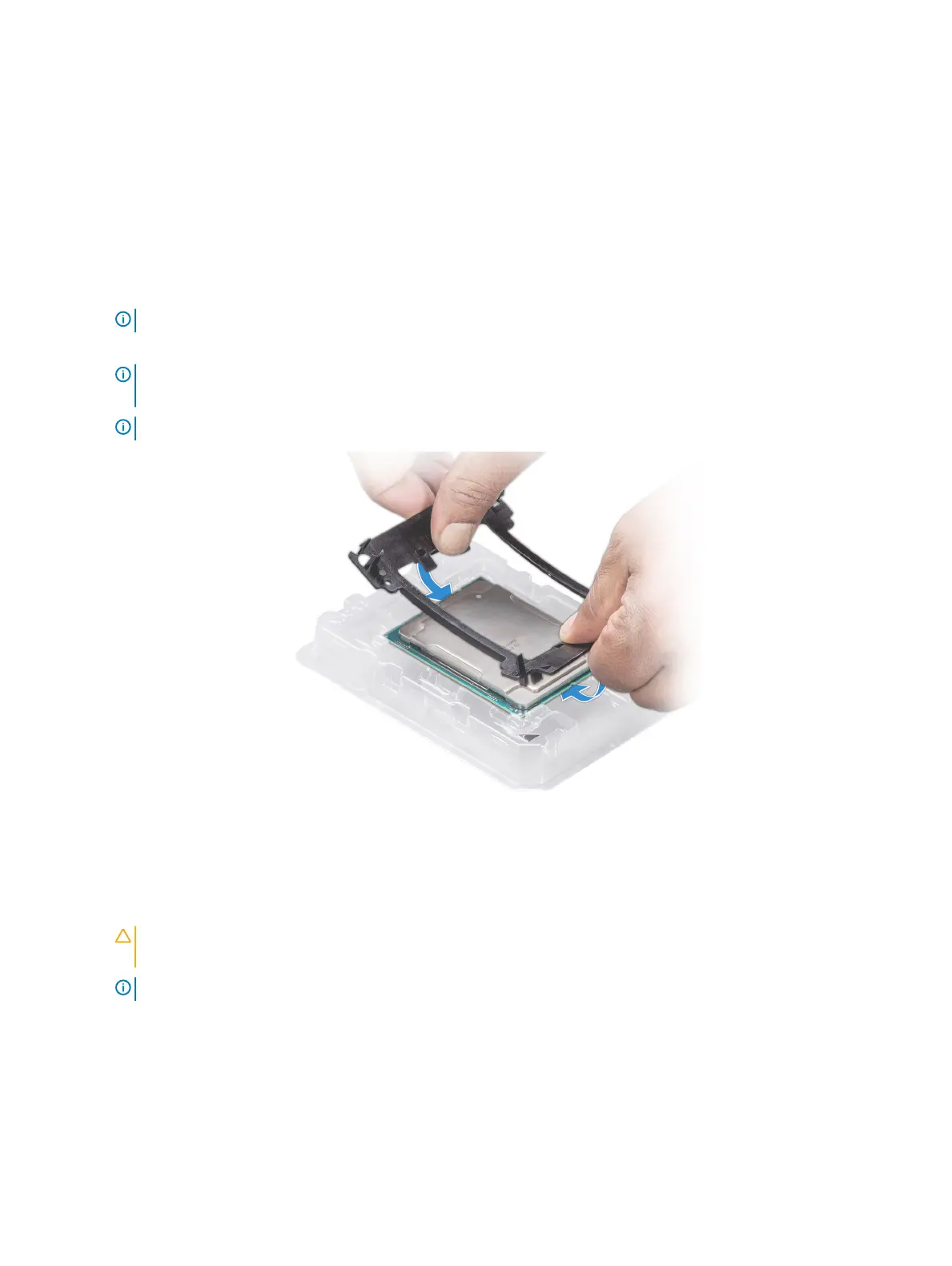

Figure 54. Installing the processor bracket
3 If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
4 Use the thermal grease syringe included with your processor kit to apply the grease in a quadrilateral design on the top of the
processor.
CAUTION
: Applying too much thermal grease can result in excess grease coming in contact with and contaminating the
processor socket.
NOTE: The thermal grease syringe is intended for single use only. Dispose the syringe after you use it.
82 Installing and removing system components
