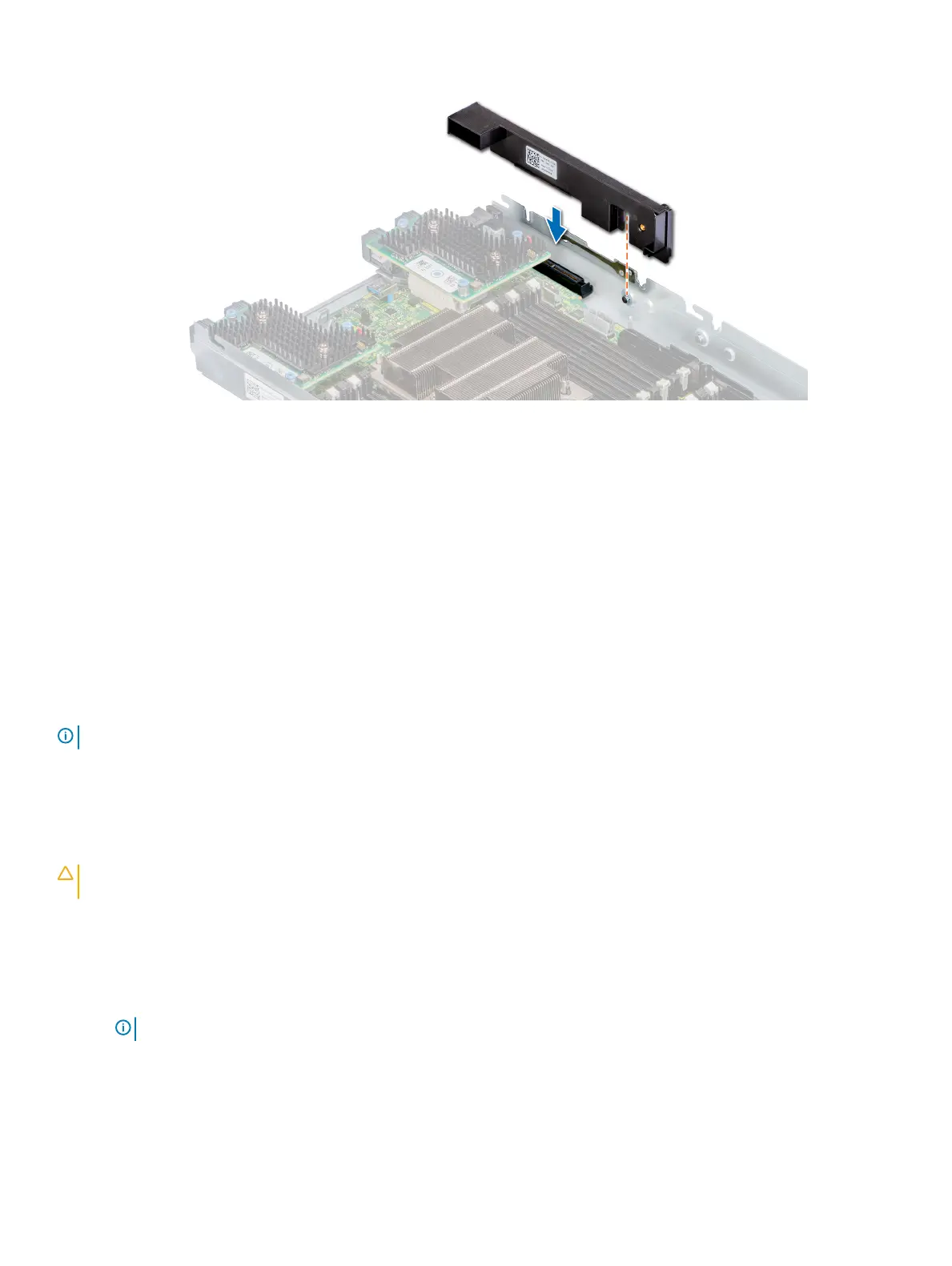

Figure 79. Installing the mini Mezzanine card blank
Next step
Follow the procedure listed in After working inside your sled.
Optional internal USB memory key
An optional USB memory key installed inside your system can be used as a boot device, security key, or mass storage device. To boot from
the USB memory key, congure the USB memory key with a boot image and then specify the USB memory key in the boot sequence in
System Setup.
An optional USB memory key can be installed in the internal USB 3.0 port and can be used as a boot device, security key or mass storage
device.
The internal USB port is on the system board.
NOTE
: To locate the internal USB port on the system board, see the System board jumpers and connectors.
Replacing the optional internal USB memory key
Prerequisites
CAUTION
: To avoid interference with other components in the server module, the maximum permissible dimensions of the USB
memory key are 15.9 mm wide x 57.15 mm long x 7.9 mm high.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your sled.
Steps
1 Locate the USB port or USB memory key on the system board.
NOTE
: To locate the USB port, see the System board jumpers and connectors section.
2 If installed, remove the USB memory key from the USB port.
3 Place the replacement USB memory key into the USB port.
Next steps
1 While booting, press F2 to enter System Setup and verify that the system detects the USB memory key.
