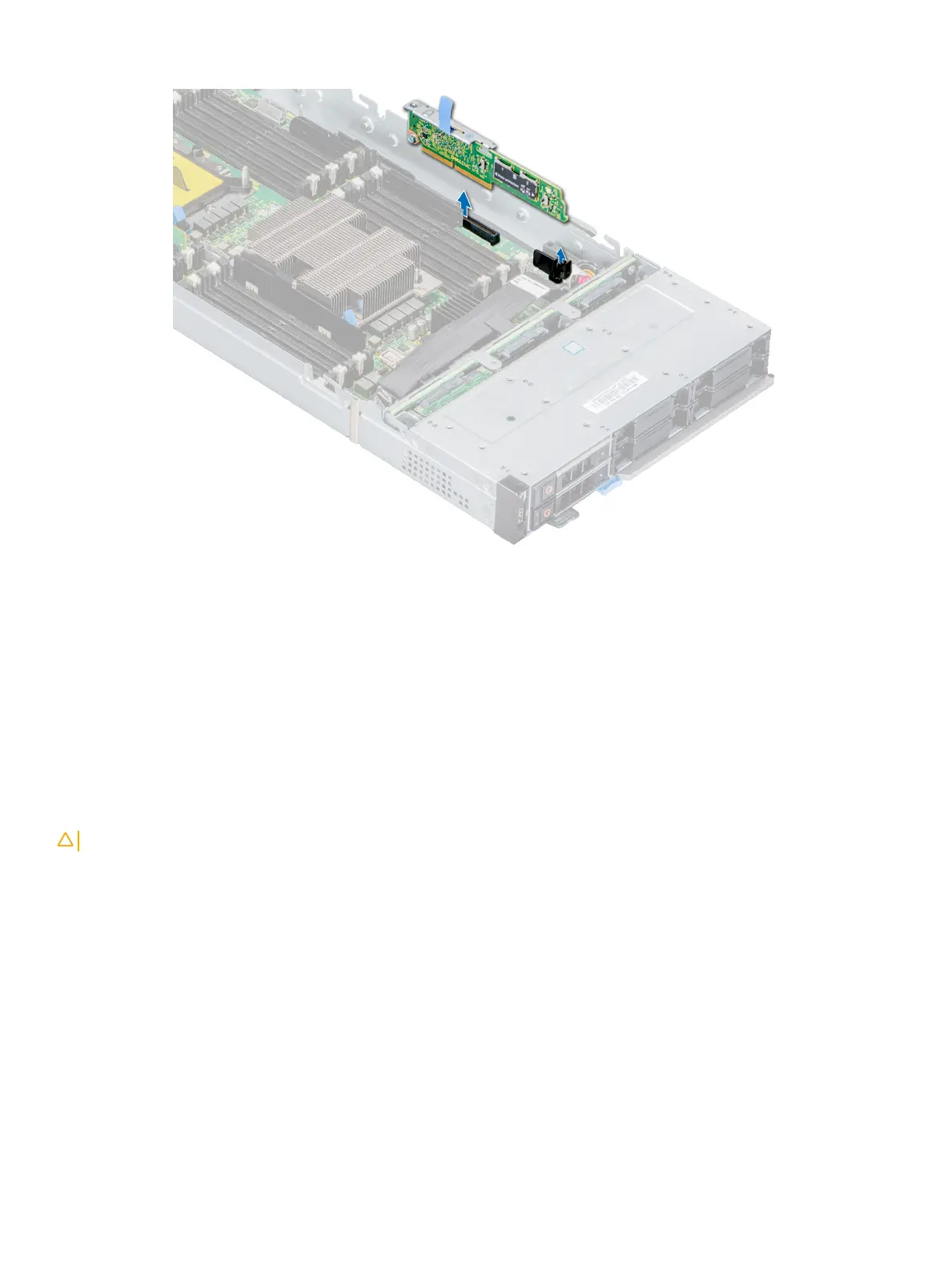

Figure 66. Removing the IDSDM card
Next step
Install the IDSDM card.
Installing the IDSDM card
Prerequisites
1 Follow the safety guidelines listed in Safety Instructions.
2 Follow the procedure listed in Before working inside your sled.
CAUTION
: To prevent damage to the IDSDM card, you must hold the card only by its edges.
Steps
1 Locate the IDSDM card connector on the system board. To locate IDSDM connector, see the system board jumpers and connectors
section.
2 Align the IDSDM card with the connector on the system board.
3 Press the IDSDM card until it is rmly seated on the system board.
Installing and removing system components
93
