Installing the iDRAC card
Prerequisites
CAUTION: To prevent damage to the iDRAC card, you must hold the card only by its edges.
1 Follow the safety guidelines listed in Safety Instructions.
2 Follow the procedure listed in Before working inside the sled.
CAUTION: If either the system board or iDRAC card fails, it is required to replace both system board and iDRAC card at the same
time.
Steps
1 Align the iDRAC card with the guide pin on the system board.
2 Lower the iDRAC card into place until the iDRAC connector is fully seated.
3 Press the blue touch points till the iDRAC card is rmly seated on the system board connector.

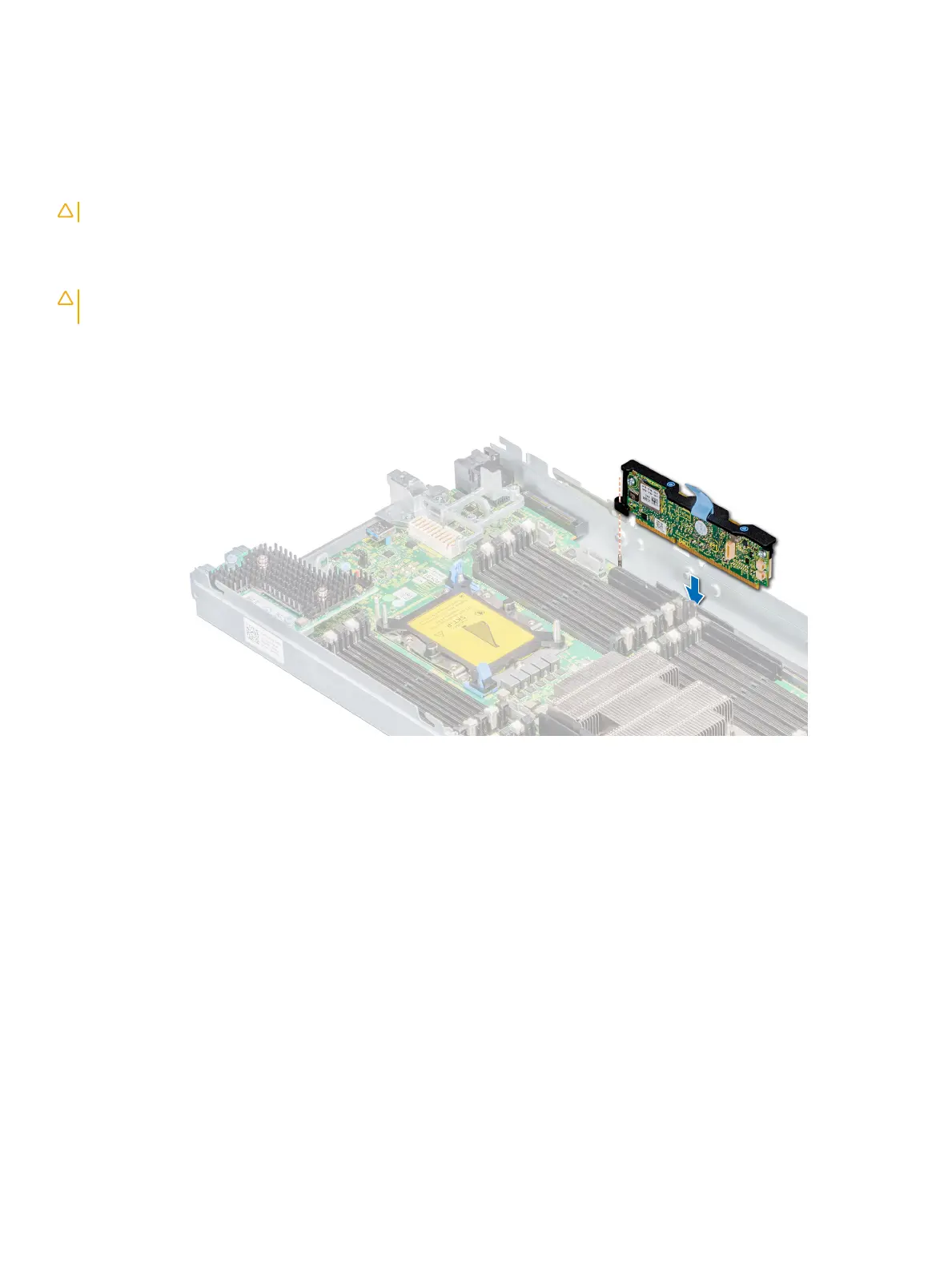

Figure 60. Installing the iDRAC card
Installing and removing system components
87
