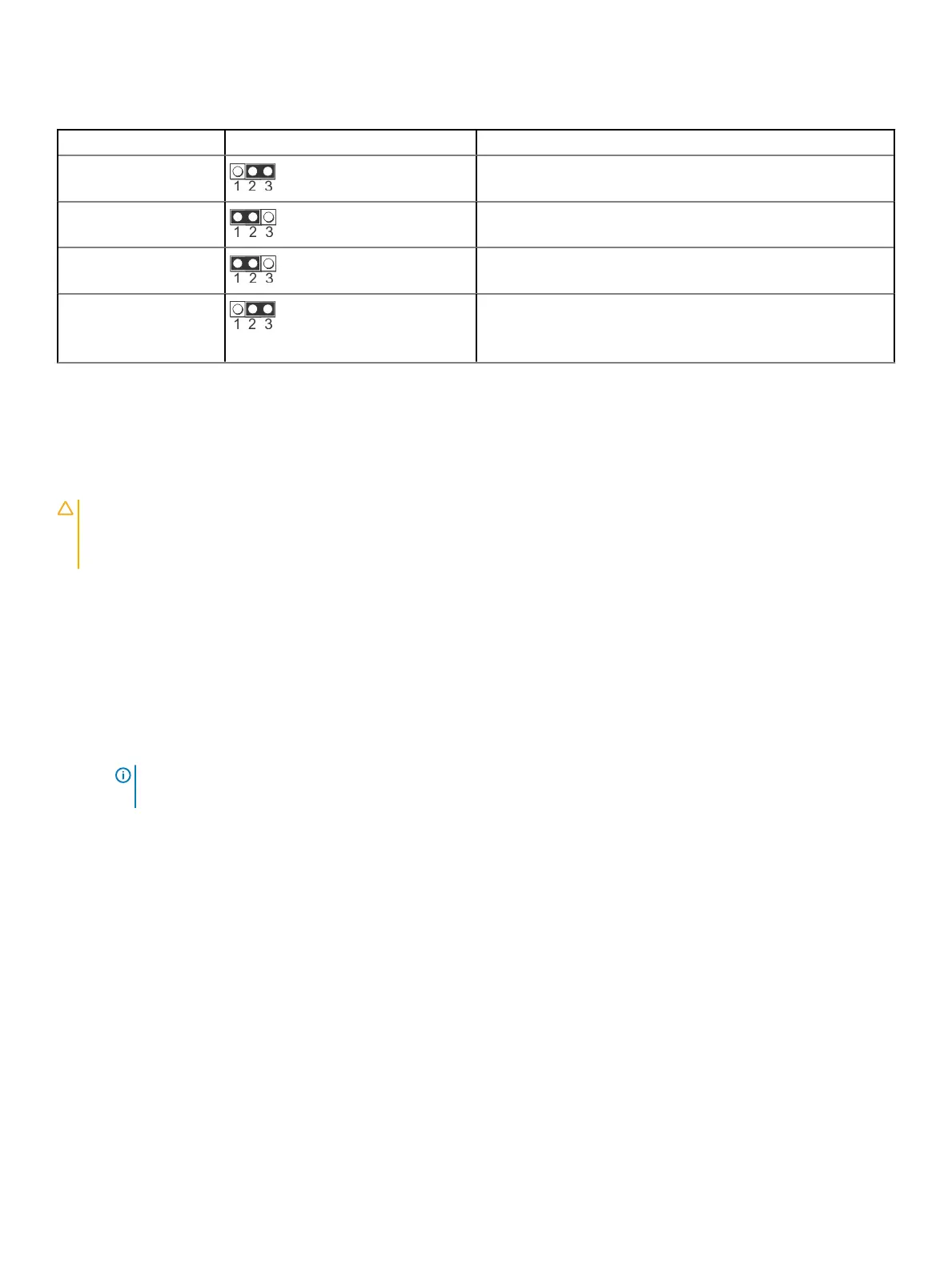

Table 12. System board jumper settings
Jumper Setting Description
NVRAM_CLR
(default)
The BIOS conguration settings are retained at system boot.
The BIOS conguration settings are cleared at system boot.
PWRD_EN
(default)
The BIOS password feature is enabled.
The BIOS password feature is disabled. iDRAC local access is
unlocked at next AC power cycle. iDRAC password reset is enabled
in F2 iDRAC settings menu.
Disabling a forgotten password
The system's software security features include a system password and a setup password. The password jumper enables these password
features or disables them and clears any password(s) currently in use.
Prerequisite
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Steps
1 Power o the compute sled.
2 Remove the compute sled from chassis.
3 Remove the system cover.
4 Move the jumper on the system board jumper from pins 2 and 4 to pins 4 and 6.
5 Install the system cover.
The existing passwords are not disabled (erased) until the system boots with the jumper on pins 4 and 6. However, before you assign a
new system and/or setup password, you must move the jumper back to pins 2 and 4.
NOTE
: If you assign a new system and/or setup password with the jumper on pins 4 and 6, the system disables the new
password(s) the next time it boots.
6 Insert compute sled into chassis and power on the compute sled.
7 Power o the compute sled, Remove the compute sled from chassis.
8 Remove the system cover.
9 Move the jumper on the system board jumper from pins 4 and 6 to pins 2 and 4.
10 Install the system cover.
11 Insert the compute sled into chassis and turn the compute sled on.
12 Assign a new system and/or setup password.
