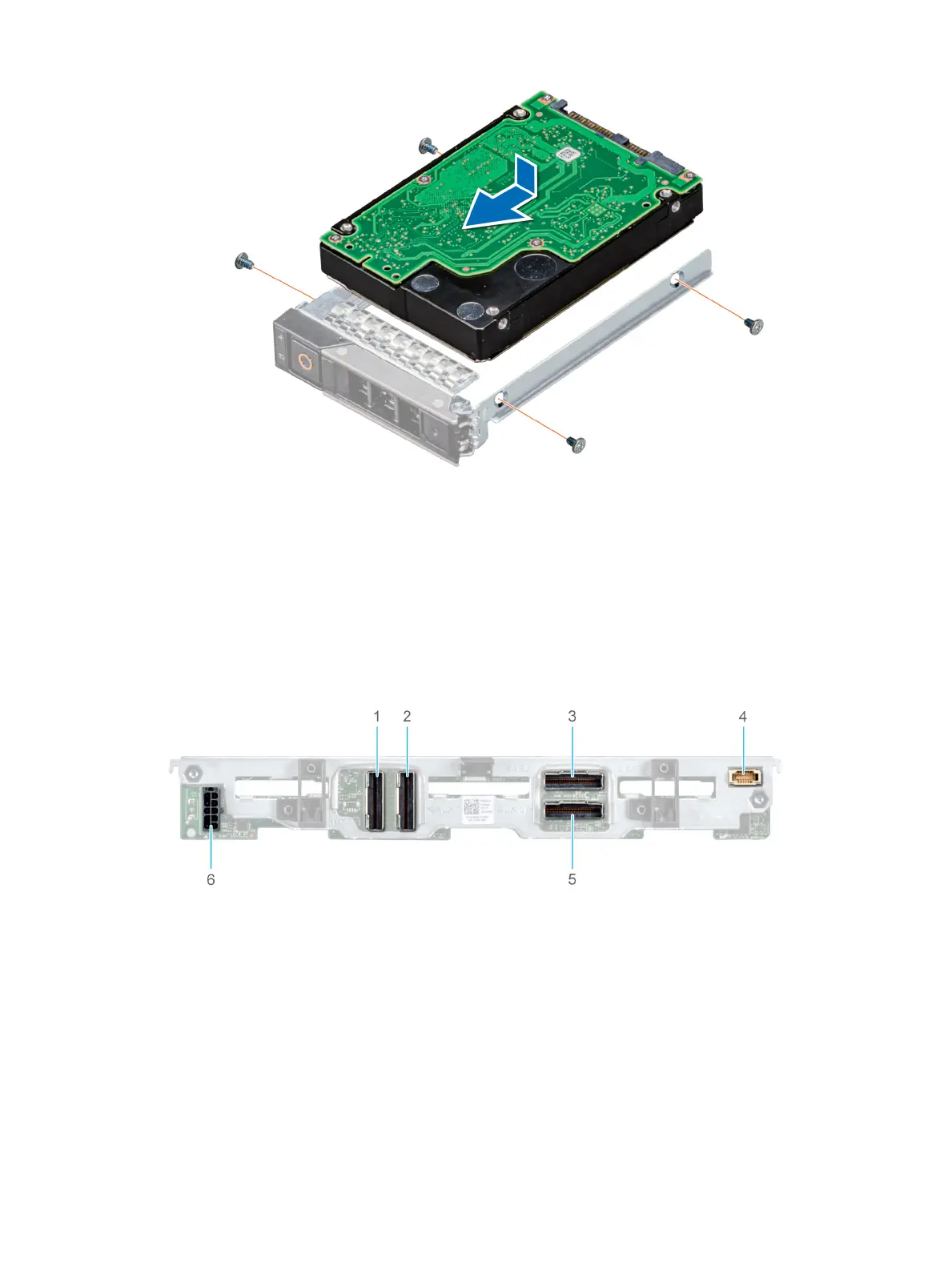

Figure 25. Installing a drive into drive carrier
Drive backplane
Depending on the conguration, your system supports:
• 2.5 inch (x6) Universal backplane
• 2.5 inch (x6) SAS/SATA backplane
• 2.5 inch (x4) Universal backplane
Figure 26. 6 x 2.5-inch universal backplane
1 AUX 2 cable connector
2 AUX 1 cable connector
3 SAS/SATA connector
4 Signal cable connector
5 AUX 0 cable connector
6 Power cable connector
Installing and removing system components
55
