Installing Blade Components 181
System Memory – PowerEdge M610/M610x
Your system supports DDR3 registered DIMMs (RDIMMS) or unbuffered
DIMMs (UDIMMs). Twelve memory sockets are located on the system board,
allowing for the following maximum memory configurations:
• 1 GB, 2 GB, 4 GB, 8 GB, and 16 GB RDIMMs (when available) are
supported, for a total of up to 192 GB. Single-rank, dual-rank, and quad-
rank RDIMMs are supported.
• 1 GB and 2 GB UDIMMs are supported, for a total of up to 24 GB.

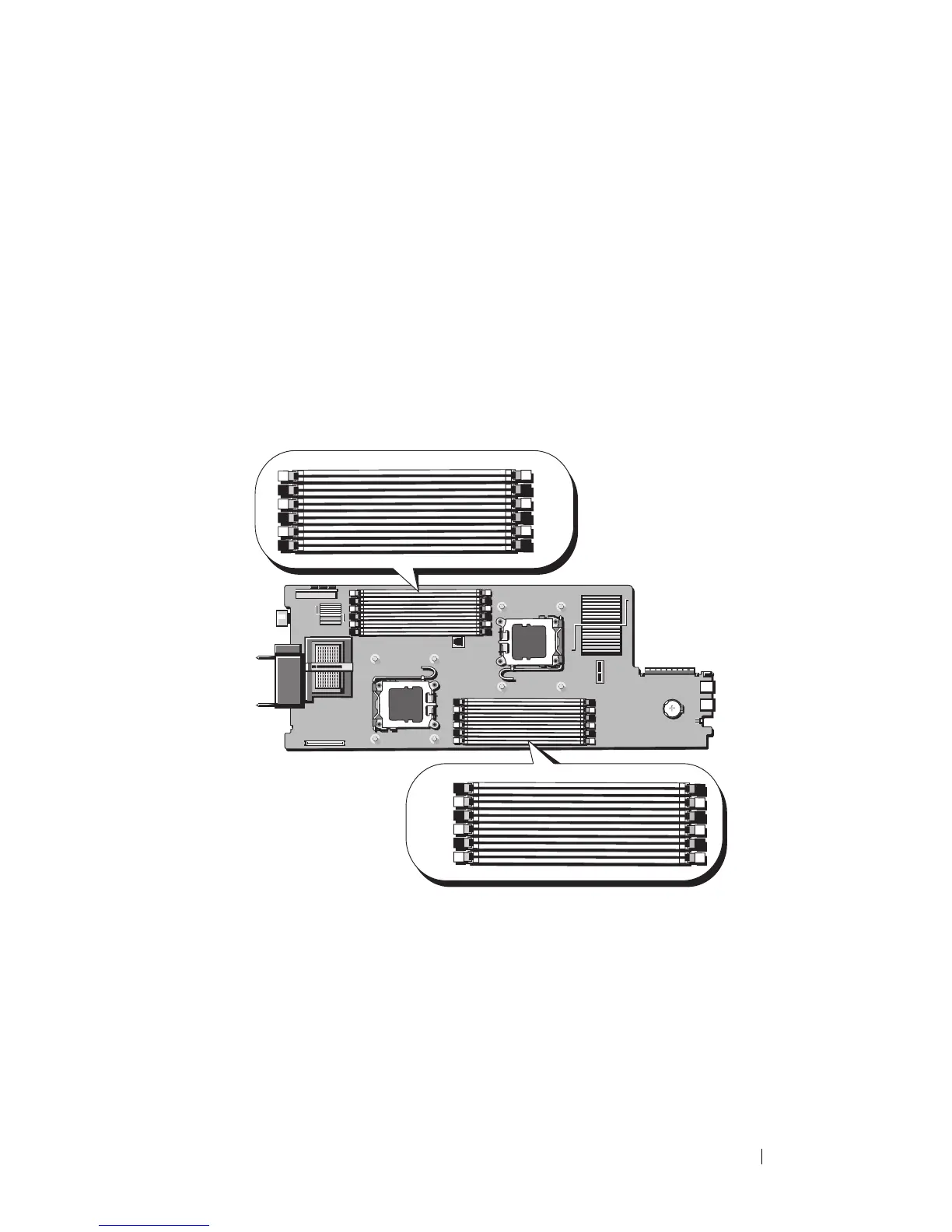

Figure 3-17. Memory Locations – PowerEdge M610/M610x
General Memory Module Installation Guidelines – PowerEdge M610//M610x
To ensure optimal performance of your system, observe the following general
guidelines when configuring your system memory:
• RDIMMs and UDIMMs cannot be mixed.
• Memory modules are populated beginning with the socket farthest from
the processor (this socket is indicated by a white socket-release lever).
A1
A4
A2
A5
A3
A6
B6
B3
B5
B2
B4
B1
Channel 2 (A1, A4)
Channel 1 (A2, A5)
Channel 0 (A3, A6)
Channel 0 (B3, B6)
Channel 1 (B2, B5)
Channel 2 (B1, B4)
CPU1
CPU2
