260 Installing Blade Components
5
If you are removing a RAID controller, disconnect the RAID battery from
the controller board.
6
Lift the controller board straight up from the system board.

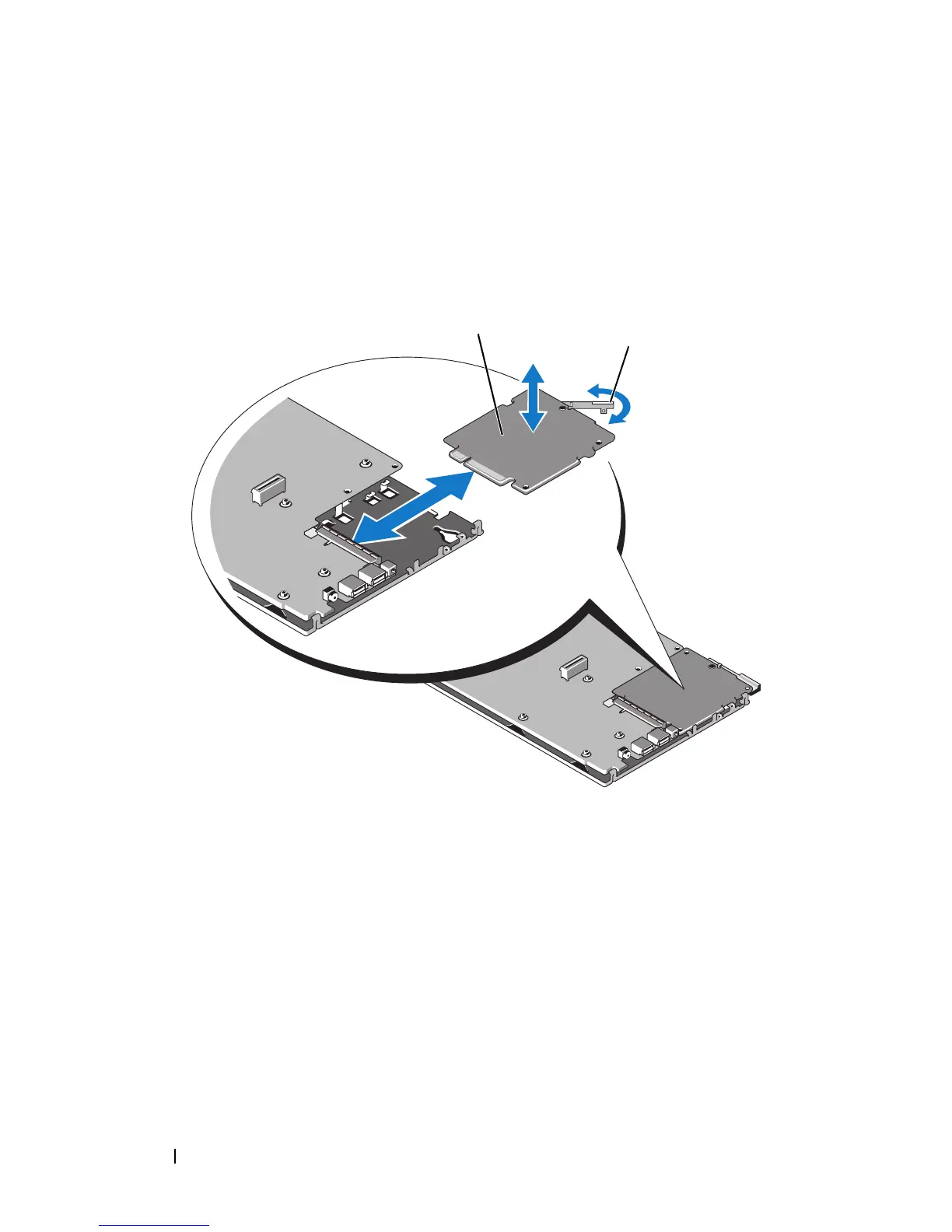

Figure 3-60. Removing and Installing the Storage Controller Card (Half-Height Blade
Shown)
Installing the Storage Controller Board
1
To place the storage controller board onto the system board, align the
controller board so that the tabs on the metal system board tray fit through
the corresponding notches in the edges of the controller board.
2
Slide the board toward the connector on the system board until the board’s
edge connector is fully seated.
3
If you are installing a RAID controller, connect the RAID battery to the
controller.
1 storage controller card 2 release lever
