280 Installing Enclosure Components

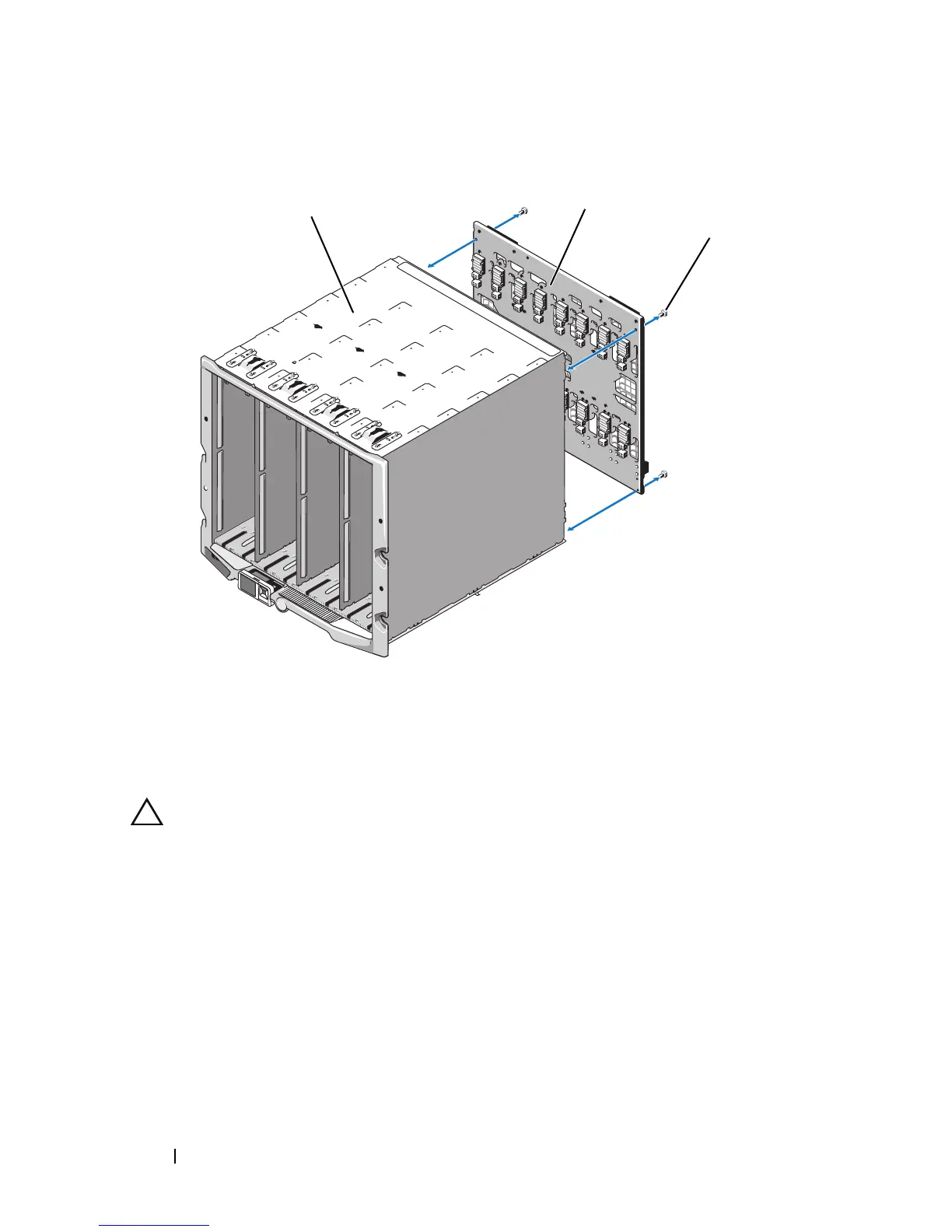

Figure 4-9. Removing and Installing the Midplane
Installing the Midplane and Front Module Cage Assembly
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Attach the midplane to the front module cage assembly and secure it with
the four Torx screws. See Figure 4-8.
2 Connect the control-panel cable to the midplane.
3 Carefully slide the front module cage assembly into the enclosure. See
Figure 4-9.
1 front module cage assembly 2 midplane
3 screws (4)
1
2
3
