Dell 8 User Manual

Installing Blade Components 191
System Memory – PowerEdge M600
You can upgrade your system memory to a maximum of 32 GB by installing
667 MHz registered DDRII f
ully-buffered DIMMs (FBDs) . 512 MB, 1 GB,
2 GB, 4 GB, and 8 GB memory modules are supported.
The memory module sockets are divided into two equal branches (0 and 1).
Each branch consists of two channels and each channel consists of two memory
module sockets:
• Branch 0, Channel 0 consists of slot 1 and slot 5.
• Branch 0, Channel 1 consists of slot 2 and slot 6.
• Branch 1, Channel 2 consists of slot 3 and slot 7.
• Branch 1, Channel 3 consists of slot 4 and slot 8.
The first DIMM socket of each channel has white release tabs.

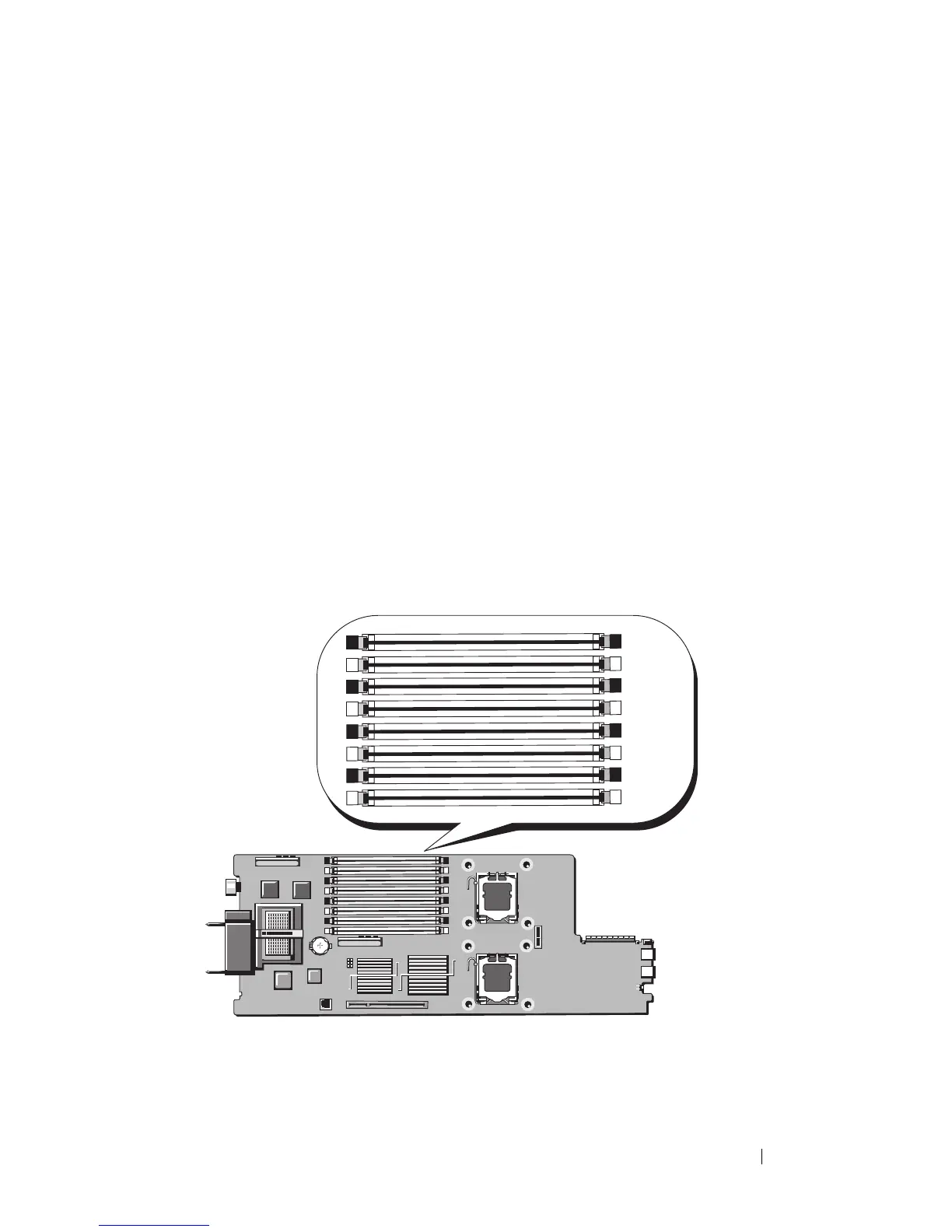

Figure 3-19 shows the locations of the memory module sockets.
Figure 3-19. Memory Locations – PowerEdge M600
1
5
2
6
3
7
8
4
