322 System Board Information
PowerEdge M710 System Board

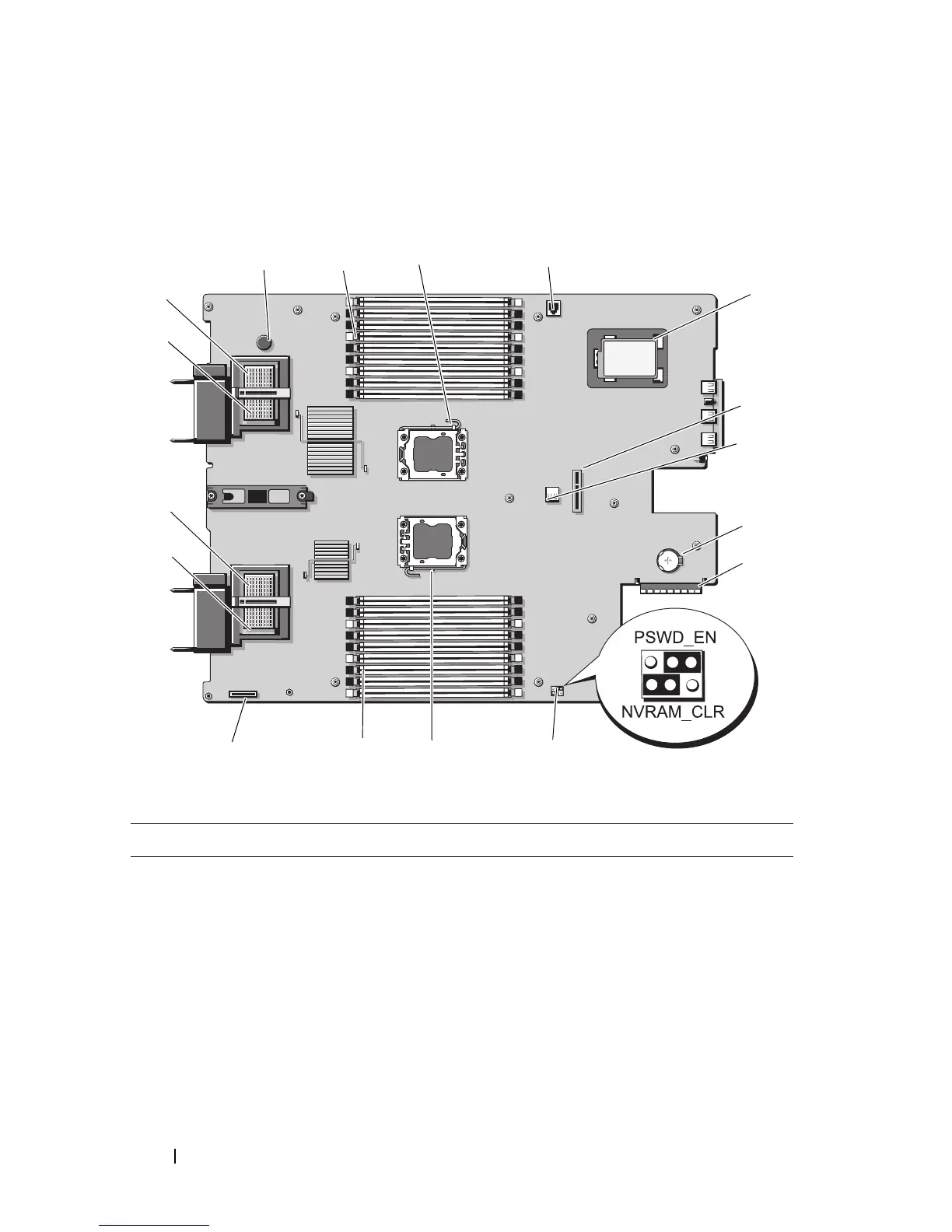

Figure 7-4. PowerEdge M710 System Board Connectors
Table 7-11. PowerEdge M710 System Board Connectors
Connector Description
1 MEZZ4_FAB_B Mezzanine card connector 4 Fabric B
2- System board retention pin
3 B1 – B9 Memory modules B1 – B9
4 CPU2 Processor 2 socket
5 ISCSI_KEY Hardware key socket for integrated NIC feature
6 - Optional RAID battery
7 - Hard-drive backplane connector
1
17
2
3
4
9
7
11
14
12
13
16
15
10
8
6
5
