44 About Your System
CMC Module

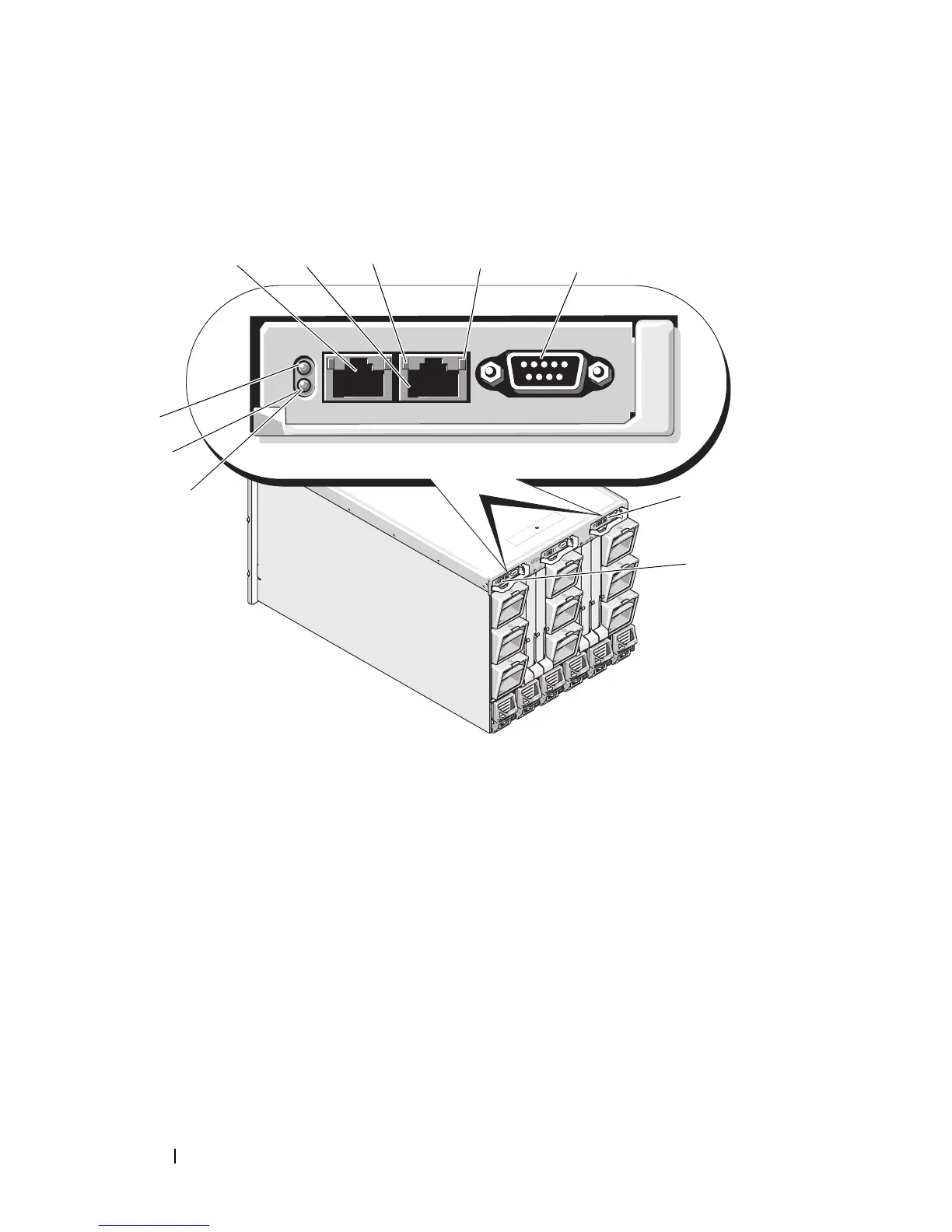

Figure 1-19. CMC Module Features
1 Ethernet connector Gb1 2 Ethernet connector STK ("stack") -
used for daisy-chaining CMCs in
separate enclosures
3 link indicator (2) 4 activity indicator (2)
5 DB-9 serial connector for local
configuration
6 optional secondary CMC (CMC 2)
7 primary CMC (CMC 1) 8 amber fault indicator
9 blue status/identification indicator 10 power indicator
4
3
2
1
5
8
9
10
6
7
