Ducati Hypermotard User Manual

Timing system
DESMODROMIC with four valves per cylinder,
operated by eight rocker arms and two overhead
camshafts. It is operated by the crankshaft through
spur gears, belt rollers and toothed belts.

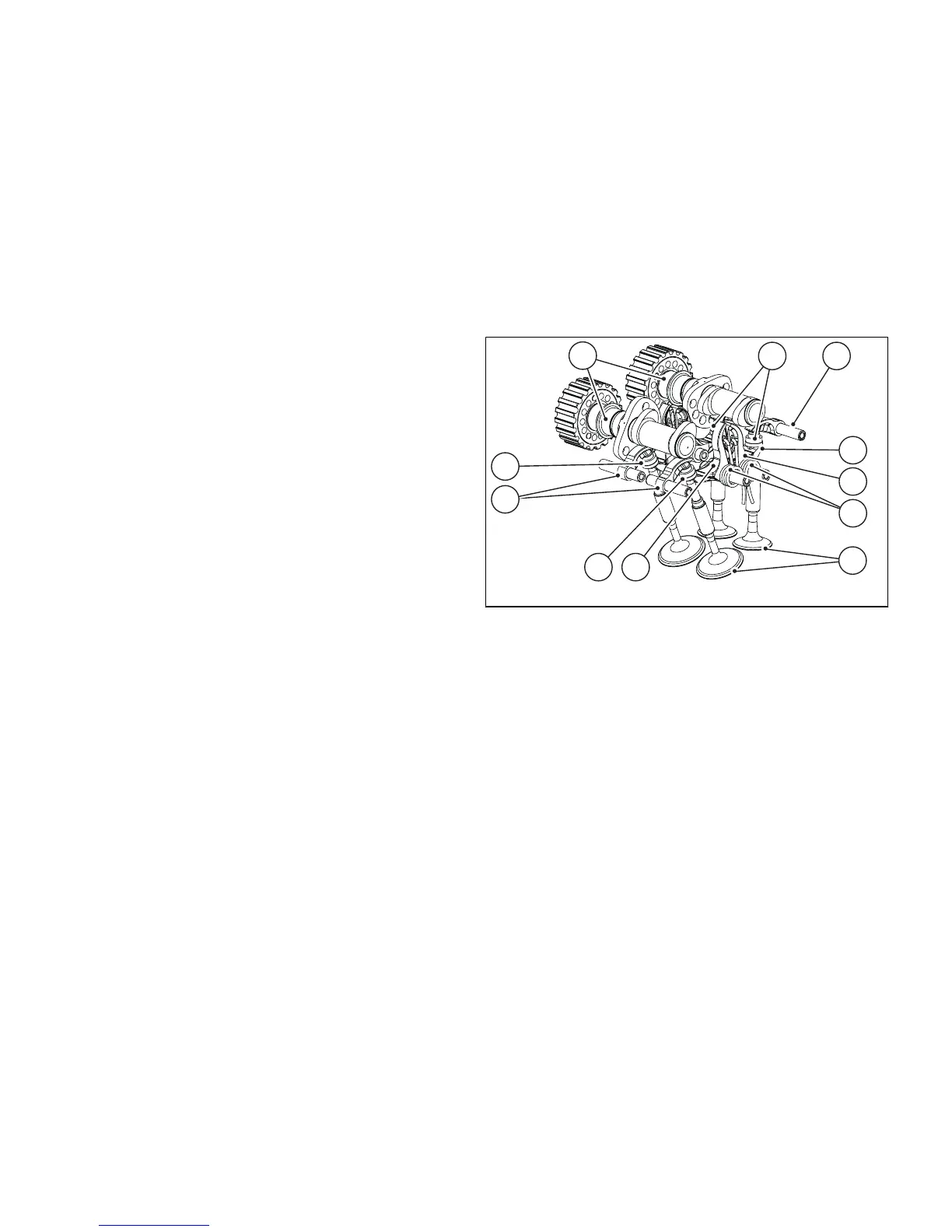

Desmodromic timing system
1)
Opening (or upper) rocker
2) Opening rocker shim
3) Closing (or lower) rocker shim
4) Return spring for lower rocker
5) Closing (or lower) rocker
6) Camshaft
7) Valve.
6
1
2
2
2 1
5
3
5
4
7
Fig 156
212

Ducati Hypermotard Specifications

General

Transmission	6-speed
Frame	Tubular steel trellis frame
Engine Type	L-twin, 4 valves per cylinder, Desmodromic, liquid cooled
Torque	71 lb-ft (96 Nm) @ 7, 250 rpm
Front Brake	2 x 320mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	245mm disc, 2-piston caliper
