Ducati Hypermotard User Manual

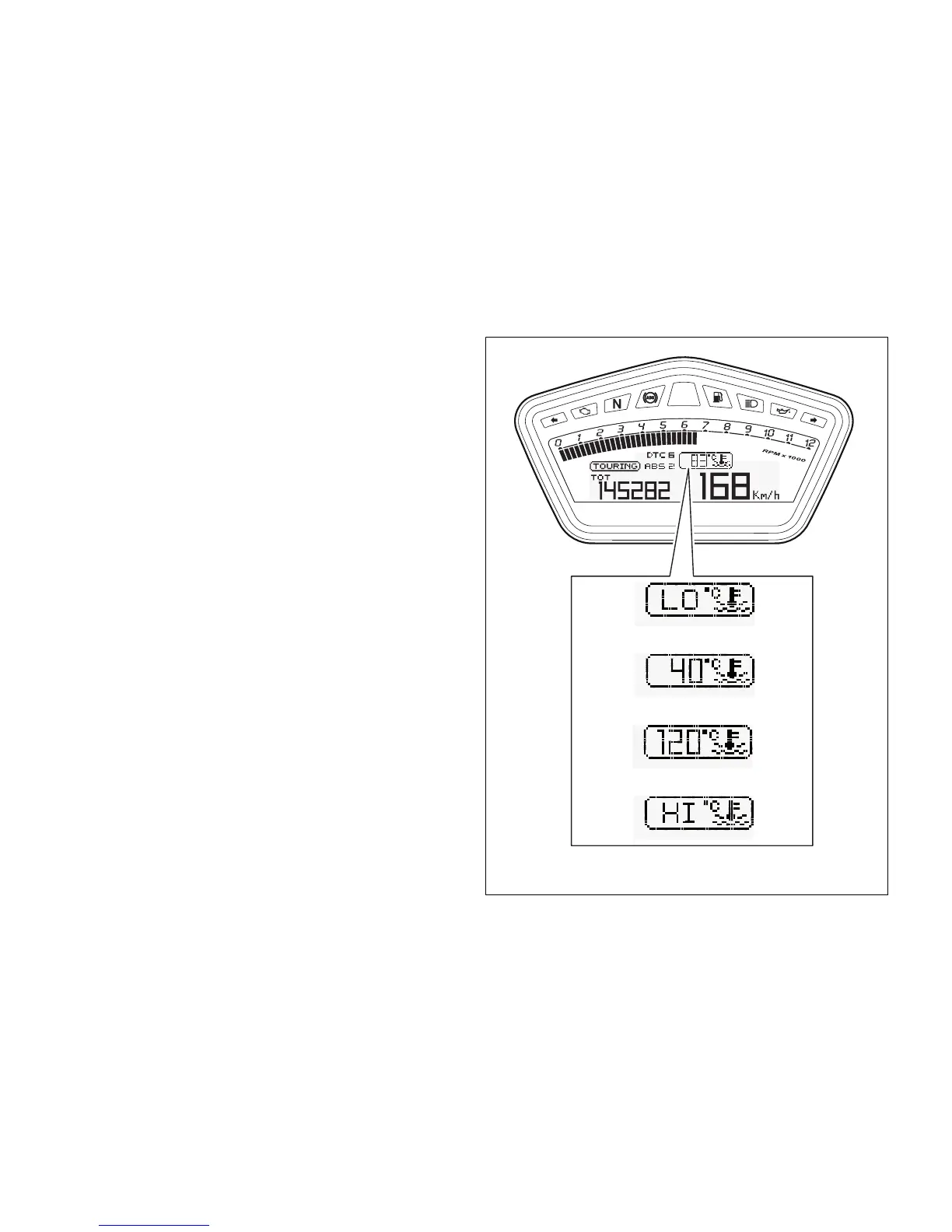

Menu 2 functions: Coolant temperature
This Function is used to display coolant temperature
(°F or °C, based on the specific application).
The instrument panel receives the temperature
reading value and displays it.
The reading is indicated as follows:
-
if the reading is between -38°F and +102°F (-
39°C and +39°C) “LO” is shown on the
instrument panel (steady);
- if the reading is between +104°F and +248°F
(+40°C and +120°C), the reading appears on the
instrument panel (steady);
- if the reading is +250°F (+121°C) or higher, "HI"
is shown flashing on the instrument panel.
Fig 27
52

Ducati Hypermotard Specifications

General

Transmission	6-speed
Frame	Tubular steel trellis frame
Engine Type	L-twin, 4 valves per cylinder, Desmodromic, liquid cooled
Torque	71 lb-ft (96 Nm) @ 7, 250 rpm
Front Brake	2 x 320mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	245mm disc, 2-piston caliper
