Epson EH-LS12000B User Manual

Projector Parts and Functions
9
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of
EH‑LS12000B unless otherwise mentioned.
gg Related Links
• "Projector Parts - Front/Top" p.9
• "Projector Parts - Rear" p.10
• "Projector Parts - Base" p.10
• "Projector Parts - Interface Ports" p.11
• "Projector Parts - Control Panel" p.11
• "Projector Parts - Remote Control" p.12

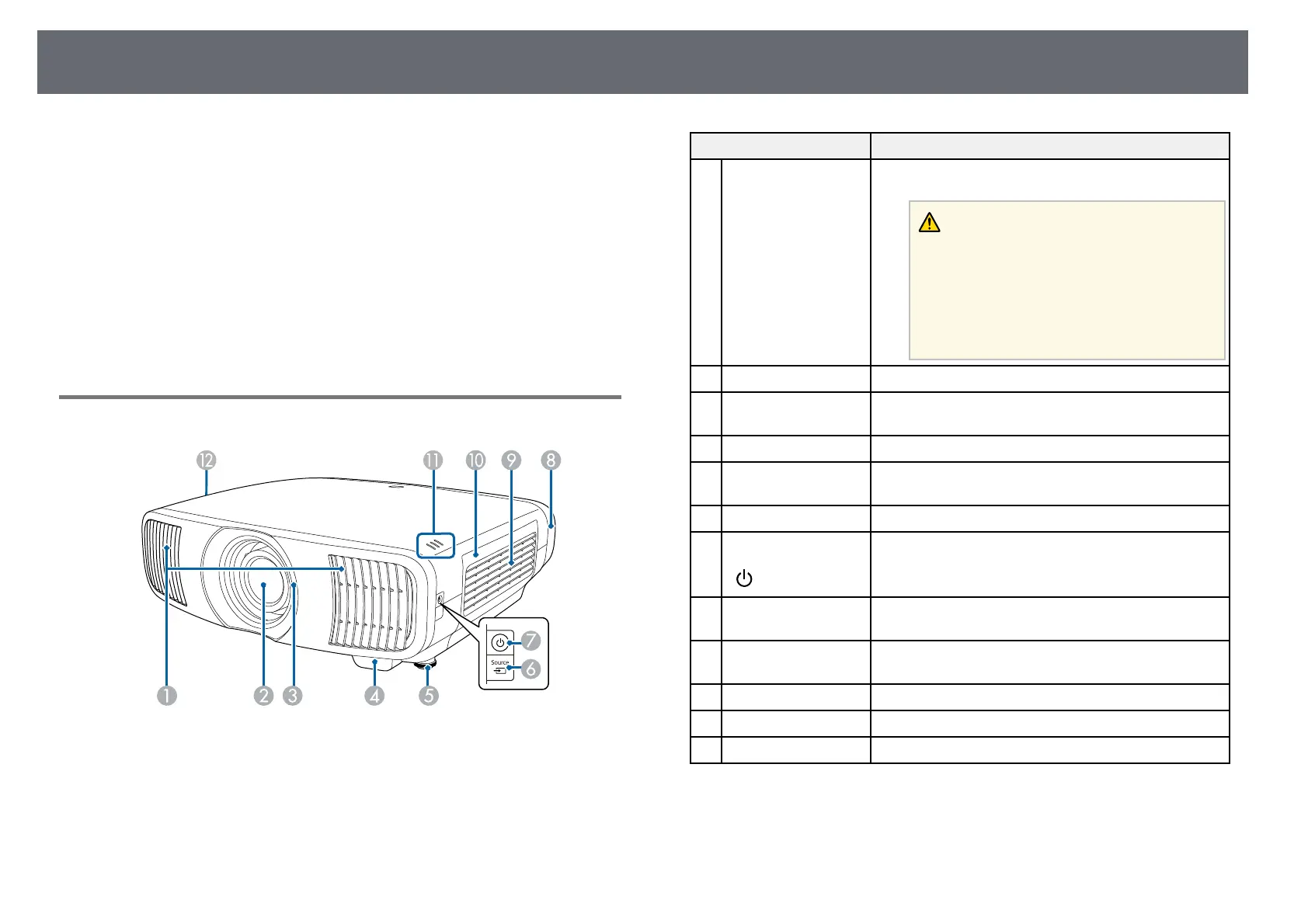

Projector Parts - Front/Top
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
B
Lens Images are projected from here.
C
Lens shutter Links to the projector's power on/off function, and
automatically opens and closes the shutter.
D
Remote receiver Receives signals from the remote control.
E
Front adjustable foot When setup on a surface such as a desk, turn to extend
and retract to adjust the horizontal tilt.
F
[Source] button Cycles through the sources.
G
Power
button/indicator
( )
Turns the projector on or off.
Lit when the projector is on.
H
Cable cover
(EH‑LS12000B)
Cover for the rear interface ports section.
I
Air intake vent (air
filter)
Takes in air to cool the projector internally.
J
Air filter cover Open to access the air filter.
K
Indicators Indicates the projector's status.
L
Air intake vent Takes in air to cool the projector internally.
gg Related Links
• "Air Filter and Vent Maintenance" p.95
• "Projector Indicator Status" p.107
• "Remote Control Operation" p.29
• "Attaching and Removing the Cable Cover" p.26
