Epson G3 Series User Manual

Maintenance 3. Covers
G3 Rev.14 89

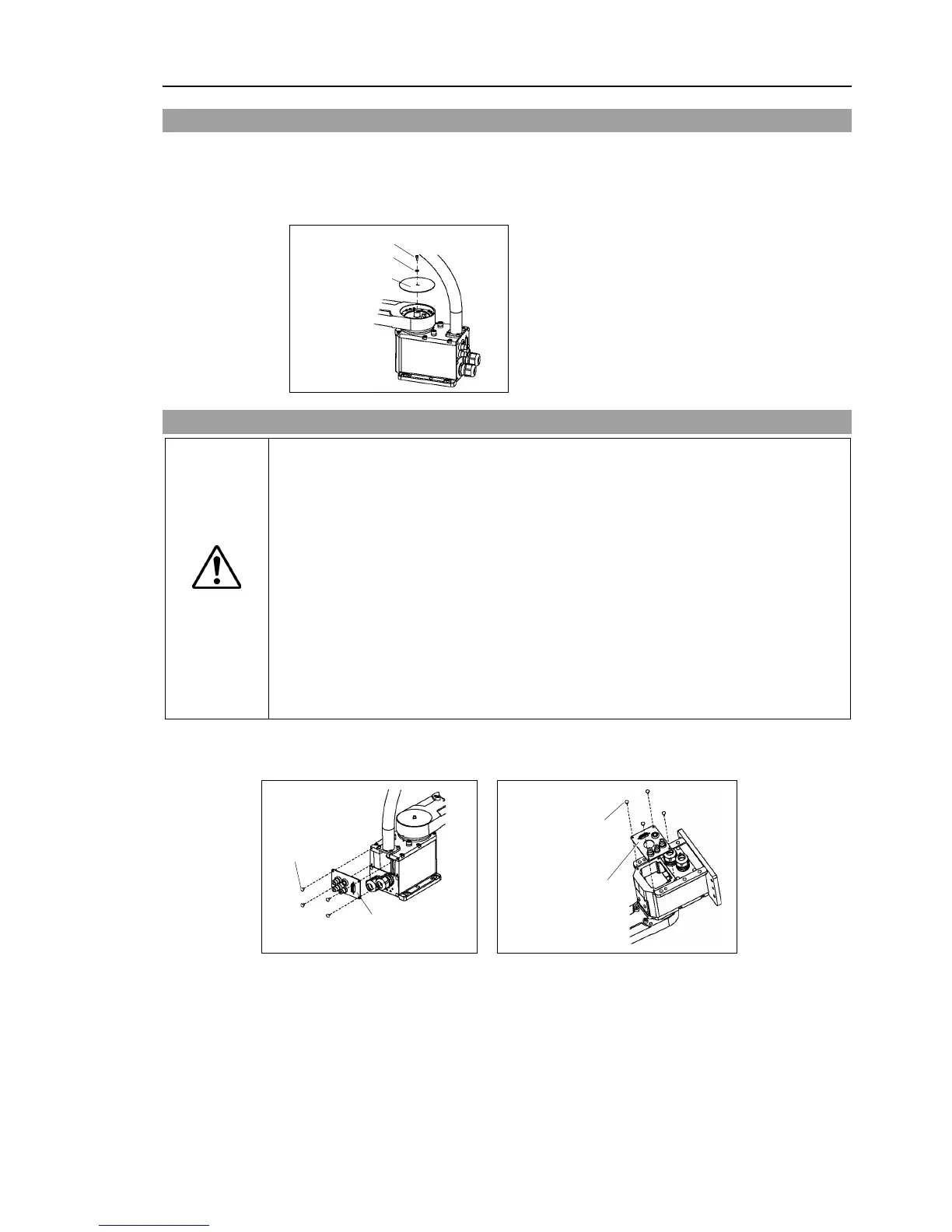

3.3 Arm Cap
Unscrew the arm cap mounting bolts and remove the cover.
Arm cap is not installed to the Multiple Mounting Manipulators.
G3-**1 Table Top Mounting
M4
×8
Arm cap
Flat washer
3.4 Connector Plate
CAUTION
■
Do not remove the connector plate
forcibly
. Removing the connector plate
forcibly may result in damage to the cables, disconnection,
and/or contact failure.
Damaged cables, disconnection, or contact failure is extremely hazardous and
may result in electric shock and/or improper function of the robot system.
■
When installing the connector plate, be careful not to allow the cables to interfere
with the plate mounting and d
o not bend these cables forcibly to push them into
the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure. Damaged cables, disconnection, or contact failure
is
extremely hazardous and may result in electric shock and/or improper
function of
the robot system.
When
routing the cables, observe the cable locations
after removing the
connector plate
. Be sure to place the cables back to their original locations.
Unscrew the connector plate mounting bolts and remove the plate.
G3-**1* Table Top Mounting
G3-**1*M Multiple Mounting
Truss:
4-M4×8
Connector plate
Truss:
4-M4×8
Connector plate
