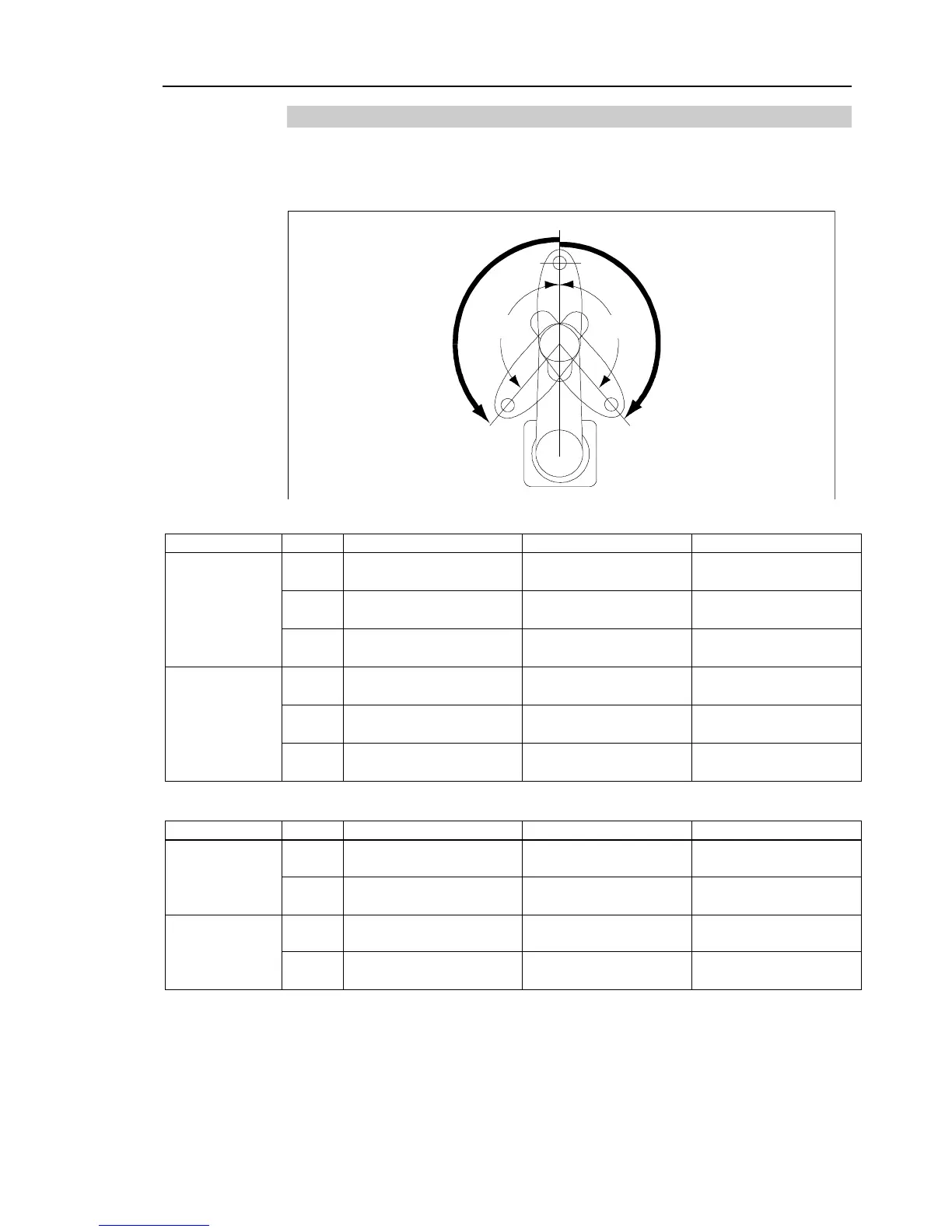

Setup & Operation 5. Motion Range
G3 Rev.14 63
5.1.2 Max. Pulse Range of Joint #2
The 0 (zero) pulse position of Joint #2 is the position where Arm #2 is in-line with Arm #1.
With the 0 pulse as a starting point, the counterclockwise pulse value is defined as the
positive (+) and the clockwise pulse value is defined as the negative (-).
B
+ B
0 pulse
A
+ A
Table Top Mounting (S: Standard-model, C: Cleanroom-model)
Arm
Standard
-R
-L
A
Max. Motion
Range
(deg)
25
±141
±137
30
±142
±141
135 ~ 150
135 ~ 145
150 ~ 135
145 ~ 135
35
±142
120 ~ 165
120 ~ 160
165 ~ 120
160 ~ 120
B
Max. Pulse
Range
(pulse)
25
2566827 ~ 2566827
2494009 ~ 2494009
30
2585031 ~ 2585031
2494009 ~ 2494009
2457600 ~ 2730667
2457600 ~ 2639645
2730667 ~ 2457600
2639645 ~ 2457600
35
2585031 ~ 2585031
2184533 ~ 3003733
2184533 ~ 2912711
3003733 ~ 2184533
2912711 ~ 2184533
Table Top Mounting (S:
Standard-model, C: Cleanroom-model)
Arm
Standard
-R
-L
A
Max. Motion
Range
(deg)
30
±135
35
±142
120 ~ 160
120 ~ 150
160 ~ 120
150 ~ 120
B
Max. Pulse
Range
(pulse)
30
2457600 ~ 2457600
35
2585031 ~ 2585031
2184533 ~ 2912711
2184533 ~ 2730667
2912711 ~ 2184533
2730667 ~ 2184533
