Epson G3 Series User Manual

Maintenance 13. LED Lamp
G3 Rev.14 167

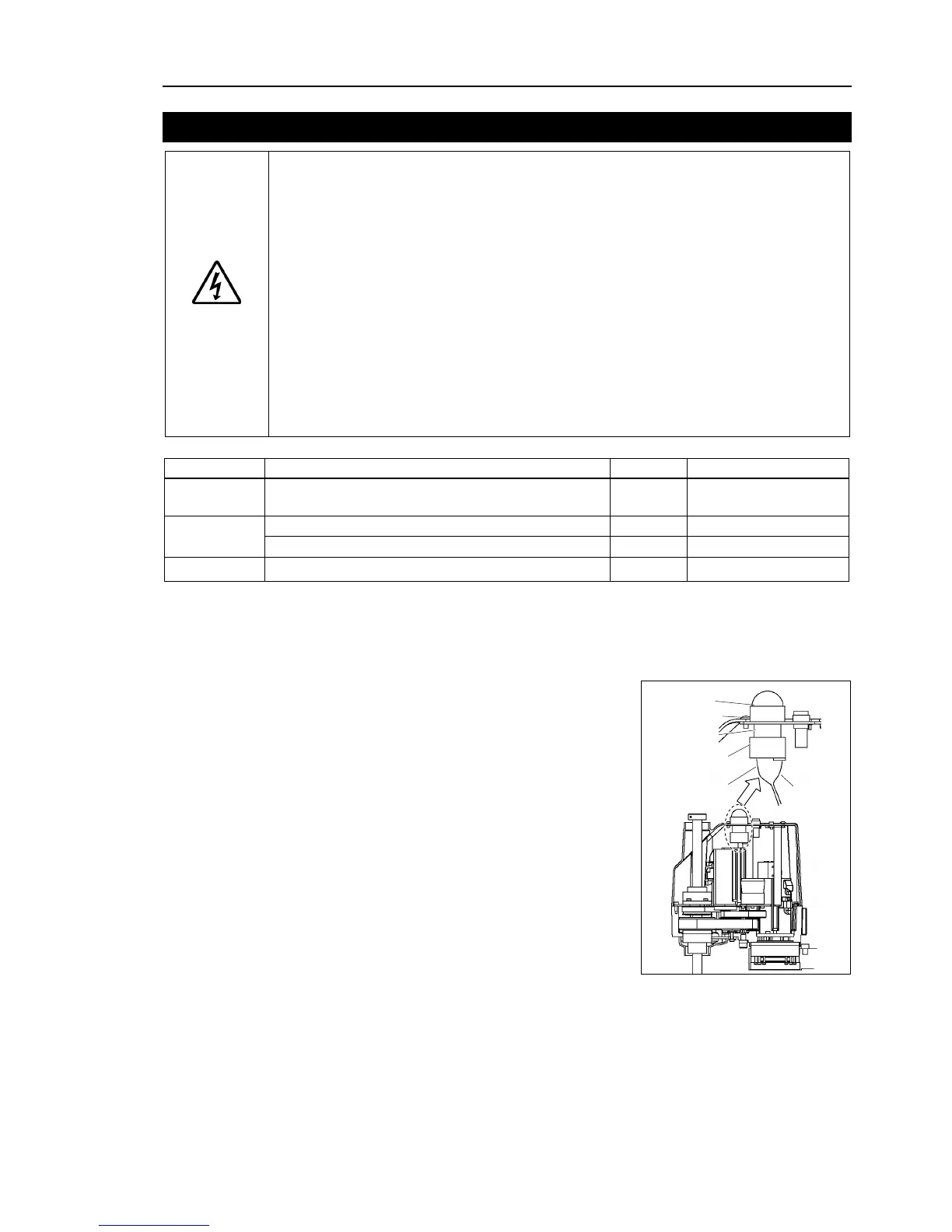

13. LED Lamp
WARNING
■
Do not
connect or disconnect the motor connectors while the power to the robot
system is turned ON.
Connecting or disconnecting the motor connectors with
the power ON is extremely hazardous and may result
in serious bodily injury as
the Manipulator may move abnormally, and also may r
esult in electric shock
and/or malfunction of the robot system.
■
To shut off power
to the robot system, disconnect the power plug from the power
source. Be sure to connect the AC power cable to a power receptacle.
DO NOT connect it directly to a
factory power source.
■
Before performing any replacement procedure, turn OFF the Controller and
related equipment,
and then disconnect the power plug from the power source.
Performing any replacement procedure with the power ON is extremely
hazardous
and may result in
electric shock and/or malfunction of the robot
system.
Name
Quantity
Note
Maintenance
parts
LED Lamp 1 R13A030000200
Tools
Cross-point screwdriver
1
For wire removal
Nippers
1
Material
Wire tie 1
LED Lamp
Removal
(1)
Remove
the arm top cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
(2)
Remove the user plate from the Arm #2 cover.
(3)
Disconnect the X1 and X2 terminals from the
LED.
X2
terminal
X1 terminal
Lens
Lens holder
Ring
LED
(4)
Turn the lens counter
clockwise
to remove it.
Then, turn the lens holder counter
clockwise to
remove it.
(5)
Remove the LED
and ring from the user plate.
LED Lamp
Installation
(1)
Connect the X1 and X2 terminals to the LED.
Each terminal must be connected to its terminal
number on
the LED.
(2)
Put the
user plate
between the ring and lens holder, and then mount the LED on the
arm top cover.
(3)
Install the lens to the lens holder.
(4)
Mount the user plate to Arm #2.
(5)
Install the arm
top cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
