Setup & Operation 4. Setting of End Effectors
60 G3 Rev.14
4.4 Precautions for Auto Acceleration/Deceleration of Joint #3
When you move the Manipulator in horizontal PTP motion with Joint #3 (Z) at a high
position, the motion time will be faster.
When Joint #3 gets below a certain point, then auto acceleration/deceleration is used to
reduce acceleration/deceleration. (Refer to the figure below.) The higher the position of
the shaft is, the faster the motion acceleration/deceleration is. However, it takes more
time to move Joint #3 up and down. Adjust the position of Joint #3 for the Manipulator
motion after considering the relation between the current position and the destination
position.
The upper limit of Joint #3 during horizontal motion using Jump command can be set by
the LimZ command.

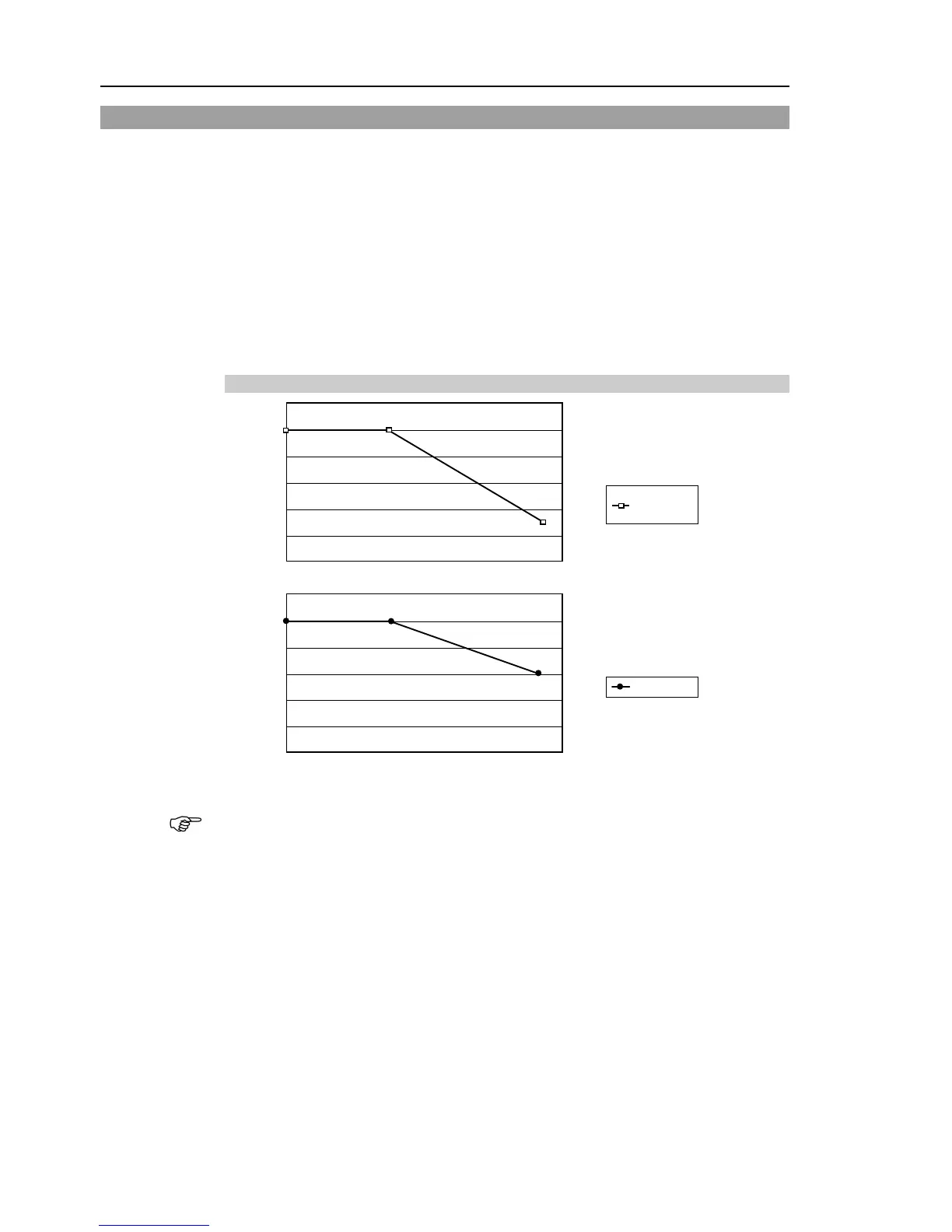

Automatic acceleration/deceleration vs. Joint #3 position
120
100
80
60
40
20
0 -30 -60 -90 -120 -150 (mm) Shaft height
(%)
* Figures on the graph (%) are
the proportion to the
acceleration/deceleration speed
at the shaft upper limit position.
100
100
G3-25***
G3-30***
30
120
100
80
60
40
20
0 -30 -60 -90 -120 -150 (mm) Shaft height
(%)
* Figures on the graph (%) are
the
proportion to the
acceleration/deceleration speed
at the shaft upper limit position.
100
60
100
G3-35***
When moving the Manipulator horizontally while the shaft is being lowered, it may cause
over-shoot at the time of final positioning.

NOTE
