Epson G3 Series User Manual

Setup & Operation 4. Setting of End Effectors
56 G3 Rev.14
140
120
100
80
60
40
20

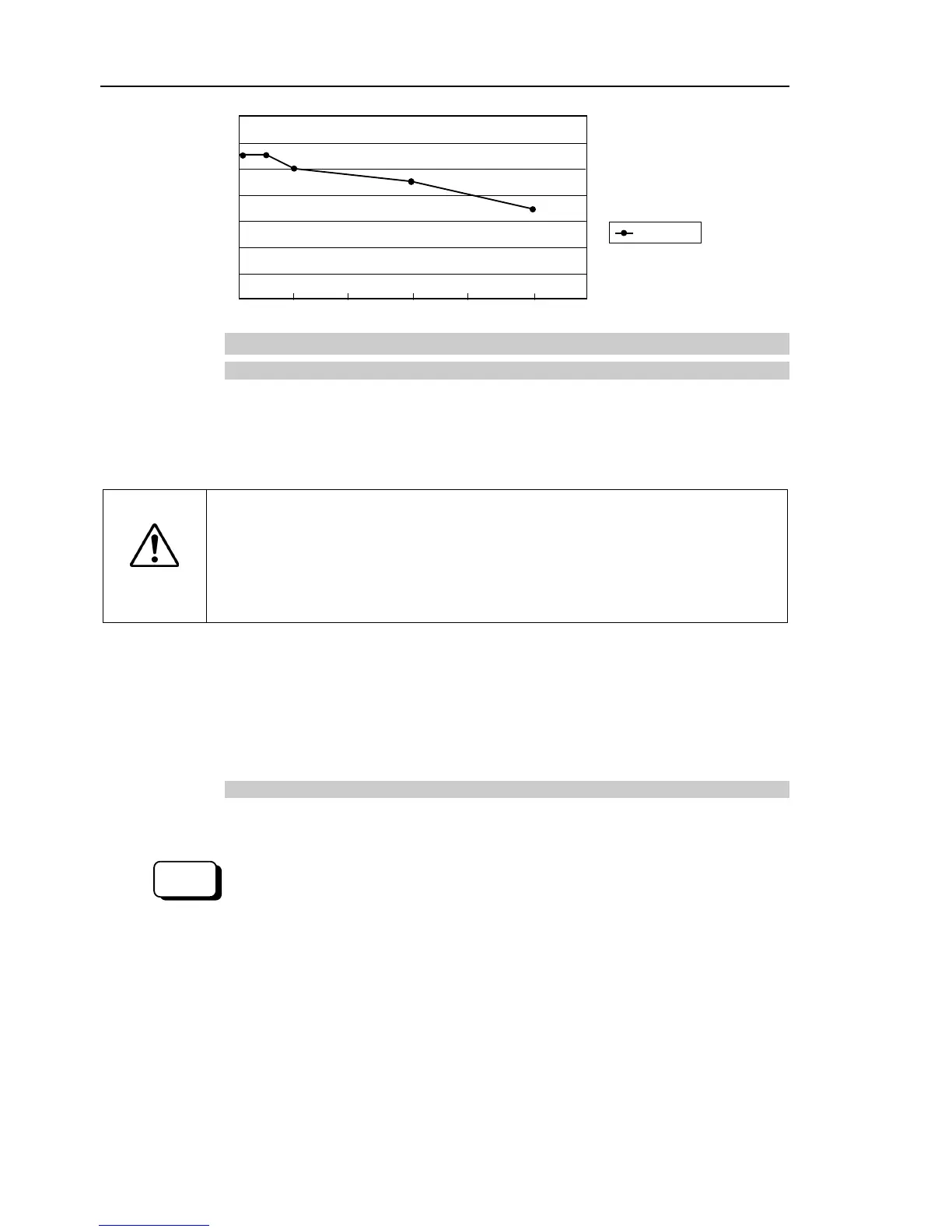

0 1 1.5 2 2.5 3 (kg) Weight setting
(%)
* The percentage in the graph is
based on the acceleration
/ deceleration at rated weight
(1 kg) as 100%.
110
90
100
70
G3-35***
4.3.2 Inertia Setting
Moment of Inertia and the Inertia Setting
The moment of inertia is defined as “the ratio of the torque applied to a rigid body and its
resistance to motion”. This value is typically referred to as “the moment of inertia”,
“inertia”, or “GD
2
”. When the Manipulator operates with additional objects (such as an
end effector) attached to the shaft, the moment of inertia of load must be considered.
CAUTION
■
The
moment of inertia of the load (weight of the end effector and work piece)
must be
0.05 kgm
2
or less. The G3 series Manipulators are not designed to
work with
a moment of inertia exceeding 0.05 kgm
2
.
Always set the moment of inertia parameter to the correct moment of inertia.
Setting a value that is smaller than the actual moment of
inertia may cause
errors, excessive shock, insufficient function of the Manipulator, and/or shorten
the life cycle of parts/mechanisms
.
The acceptable moment of inertia of load for a G3 series Manipulator is 0.005 kgm
2
at the
default rating and 0.05 kgm
2
at the maximum. When the moment of inertia of the load
exceeds the rating, change the setting of the moment of inertia parameter of the Inertia
command. After the setting is changed, the maximum acceleration/deceleration speed of
Joint #4 at PTP motion corresponding to the “moment of inertia” value is set
automatically.
Moment of inertia of load on the shaft
The moment of inertia of load (weight of the end effector and work piece) on the shaft can
be set by the “moment of inertia” parameter of the Inertia command.
EPSON
RC+
Enter a value into the [Load inertia:] text box on the [Inertia] panel (
[Tools]-
[Robot
M
anager]). (You may also execute the Inertia command from the [Command Window].)
