Epson G3 Series User Manual

Maintenance 3. Covers
90 G3 Rev.14

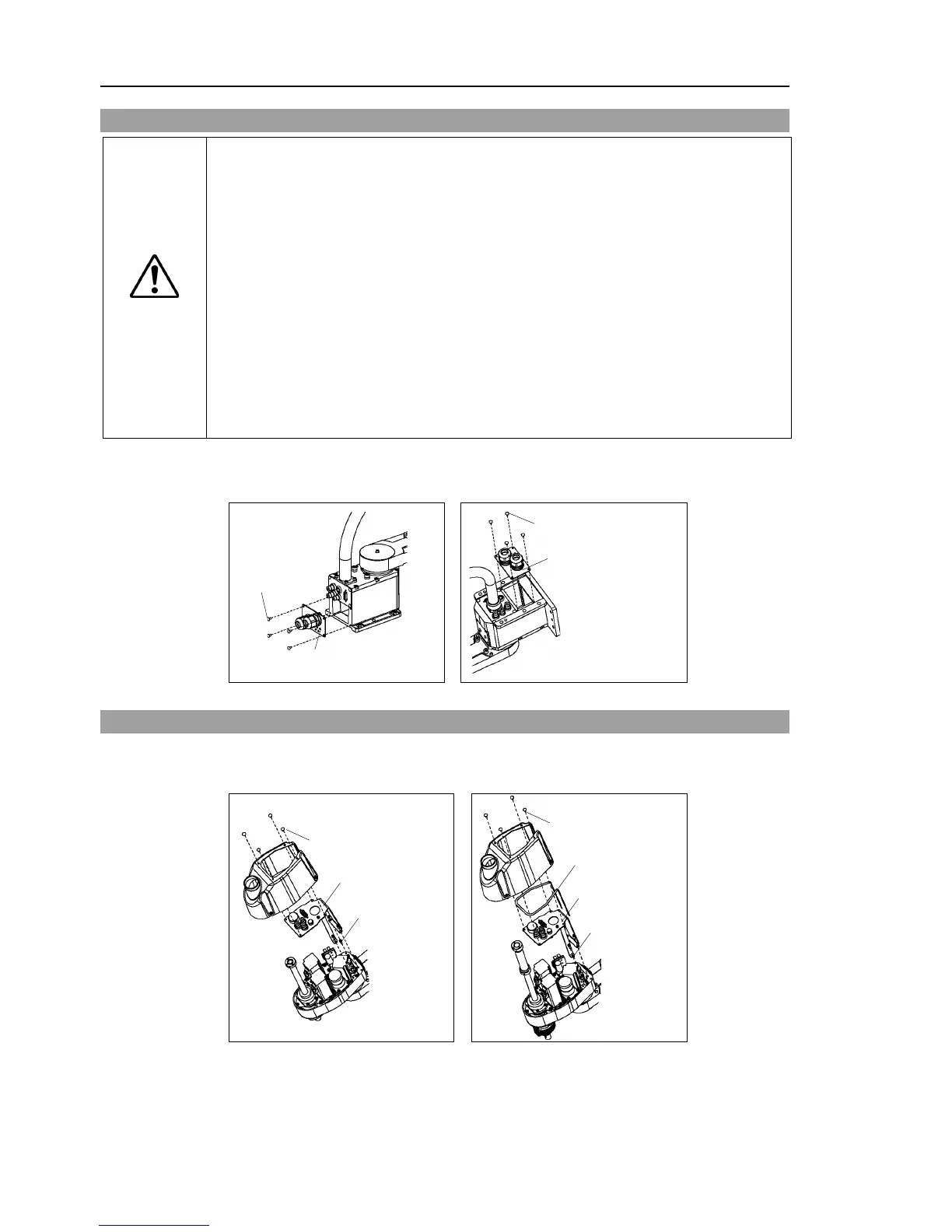

3.5 Connector Sub Plate
CAUTION
■
Do not remove the connector sub plate
forcibly. Removing the connector sub
plate forcibly may result in damage to the cables, disconnection, and/or contact
failure. Damaged cables, disconnection, or contact failure is extremely
hazardous and may result
in electric shock and/or improper function of the robot
system.
■
When installing the connector sub plate, b
e careful not to allow the cables to
interfere with the plate mounting and d
o not bend these cables forcibly to push
them into the cover.
Unnecess
ary strain on cables may result in damage to the cables, disconnection,
and/or contact failure. Damaged cables, disconnection, or contact failure is
extremely hazardous and may result in electric shock and/or improper
function of
the robot system.
When
routing the cables, observe the cable locations after removing the
connector sub plate
. Be sure to place the cables back to their original locations.
Unscrew the connector sub plate mounting bolts and remove the plate.
G3
-**1* Table Top Mounting
G3
-**1*M Multiple Mounting
Truss:
4-M4×8
Connector sub plate
Truss: 4-M4×8
Connector sub plate
3.6 User Plate
Unscrew the user plate mounting bolts and remove the plate.
G3
-**1S* Standard-model
G3
-**1C* Cleanroom-model
User plate
Truss: 4-M4×8
3-M4×12
Gasket
Truss: 4-M4×8
3-M4×12
User plate
A gasket is installed to G3-**1C* (Cleanroom-model).
