Printable
Area

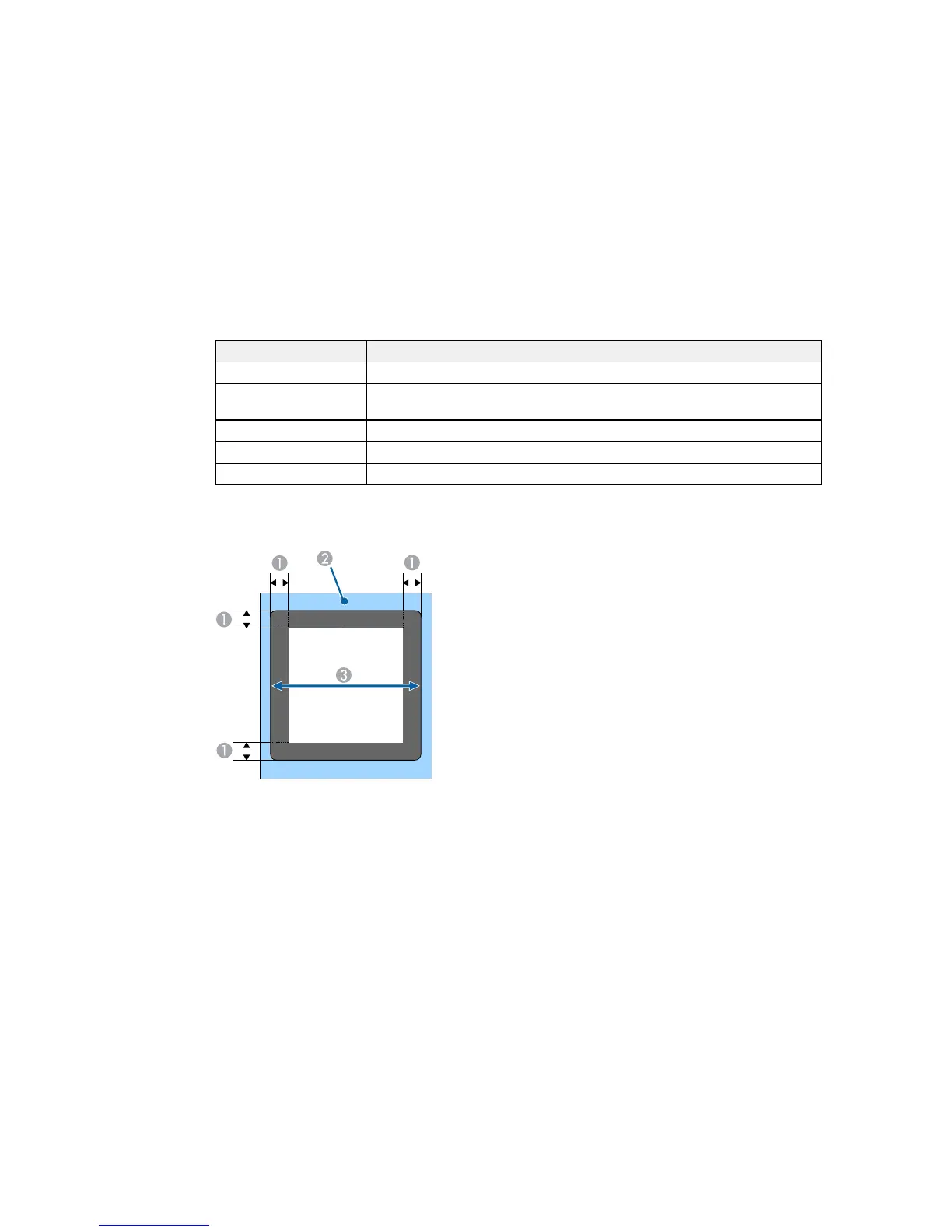

Platen
size
Printable
area
Large
16
×
20
inch
(406
×
508
mm)
Medium/medium
14
×
16
inch
(356
×
406
mm)
grooved
Small
10
×
12
inch
(254
×
305
mm)
Extra
small
7
×
8
inch
(178
×
203
mm)
Sleeve
4
×
4
inch
(102
×
102
mm)
Inside
the
platen
frame,
you
cannot
print
on
the
areas
shown
in
gray.
Sleeve
platen
1
0.47
inch
(12
mm)
2
Platen
frame
3
Top
section
37
36
38
Table of Contents
Table of Contents
3
Epson Surecolor F2000 Series User's Guide
9
Introduction to Your Printer
10
Printer Features
10
Optional Equipment and Replacement Parts
11
Notations Used in the Documentation
12
Printer Part Locations
12
Printer Parts - Front/Top
12
Printer Parts - Inside
14
Printer Parts - Back
15
Control Panel and LCD Screen
16
Printer Usage Guidelines
18
Using Your Printer
18
Storing Your Printer
19
Handling Ink and Cleaning Cartridges
20
Handling White Ink (White Edition)
21
Handling T-Shirts (Media)
22
Basic Printing
24
Overview of the Printing Process
24
Required Equipment
25
Pre-Treating a T-Shirt
27
Pre-Treatment Solution Safety Precautions
27
Preparing the Pre-Treatment Solution
28
Diluting the Pre-Treatment Solution
31
Pre-Treatment Application Guidelines
32
Pre-Treating a T-Shirt with a Roller
33
Pre-Treating a T-Shirt with a Sprayer
33
Fixing the Pre-Treatment Solution (Heat Press)
34
Preparing Your Printer
35
Creating Your T-Shirt Design
36
Data Creation and Transmission Guidelines
36
Printable Area
37
Loading the T-Shirt
38
Replacing the Platen
39
Loading a T-Shirt on the Platen
40
Repositioning the T-Shirt
46
Adjusting the Height of the Platen
47
Adjusting the Angle of the Fixing Lever
50
Starting and Cancelling Printing
51
Starting a Print Job
52
Cancelling a Print Job
52
Post-Treating a T-Shirt
53
Removing a Printed T-Shirt
53
Fixing the Ink
54
Fixing Conditions (Heat Press)
55
Fixing Conditions (Heat Tunnel)
55
Printing from a USB Memory Device
57
USB Memory Device Requirements
57
Connecting and Printing from a USB Memory Device
58
Printing on Thick Material
60
Removing the Round Platen Height Indicator
60
Installing the Round Platen Height Indicator
65
Maintenance
67
Maintenance Guidelines
67
Maintenance Safety Instructions
68
Print Head Maintenance
68
Performing a Nozzle Check
69
Cleaning the Print Head
71
Print Head Alignment
72
Aligning the Print Head
72
Using the Ink Cleaning Solution
74
Disposing of Used Consumables and Optional Parts
76
Waste Ink Disposal Guidelines
76
Replacing the Waste Ink Bottle
77
Cleaning the Suction Cap
81
Replacing the Head Cleaning Set
86
Replacing the Wiper Unit and Anti-Drying Caps
86
Replacing the Flushing Pad
92
Washing the White Ink Tubes (White Edition)
96
Shaking and Replacing the Ink Cartridges
100
Cleaning the Encoder Strip (Carriage Scale) and Replacing the Air Filter
105
Cleaning Around the Print Head
111
Cleaning the Platen Path
114
Storing the Printer
117
Cleaning the Printer
118
Moving or Transporting the Printer
121
Transportation Preparation
122
Moving the Printer
122
Moving the Printer through a Narrow Doorway
124
Setting up the Printer after Transport
128
Using the Control Panel Menus
129
Accessing the Printer's Menus
129
USB File List Menu Settings
130
Maintenance Menu Settings
131
Printer Setup Menu Settings
133
Print Logs Menu Settings
134
Printer Status Menu Settings
135
Administrator Menu Settings
136
Maintenance Mode Menu Settings
137
Solving Problems
139
Product Status Messages
139
Solving Printer Problems
144
Printer Does Not Turn on
144
LCD Screen Shuts off
144
Solving Printing Problems
144
Nothing Prints
145
Cannot Print over a Network
145
Print Head Moves but Nothing Prints
146
Platen Height Error Is Displayed While Printing
147
Message Is Displayed after Cleaning the Encoder Strip (Carriage Scale)
147
Printing Is Slow or Stops Intermittently
148
Cannot Access the USB Memory Device
148
Red Light Shines Inside the Printer
148
Forgot the Network Password
148
Solving Print Quality Problems
148
Nozzle Check Pattern Prints Incorrectly
149
Overall Print Quality Is Poor
149
Lines Are Misaligned
151
Grainy or Unclear Printout
151
White Ink Quality Is Poor (White Edition)
152
Ink Stains Appear Outside the Printed Areas
153
Printer Status Sheet or Logs Print Incorrectly
153
Where to Get Help
153
Technical Specifications
155
Windows System Requirements
155
Mac System Requirements
156
Printer Specifications
157
Electrical Specifications
157
Environmental Specifications
158
Dimension Specifications
158
Ink Cartridge Specifications
158
Cleaning Cartridge Specifications
159
Pre-Treatment Solution Specifications
160
Ink Cleaner Solution Specifications
160
Safety and Approvals Specifications
161
Notices
162
Important Safety Instructions
162
General Product Safety Instructions
162
Ink Cartridge Safety Instructions
164
FCC Compliance Statement
165
Software License Terms
166
Trademarks
173
Copyright Notice
174
A Note Concerning Responsible Use of Copyrighted Materials
174
Copyright Attribution
174
