Epson TM-U200 Series Technical Manual

5-2 Disassembly, Assembly, and Adjustment Rev. A
Confidential
Disassembly

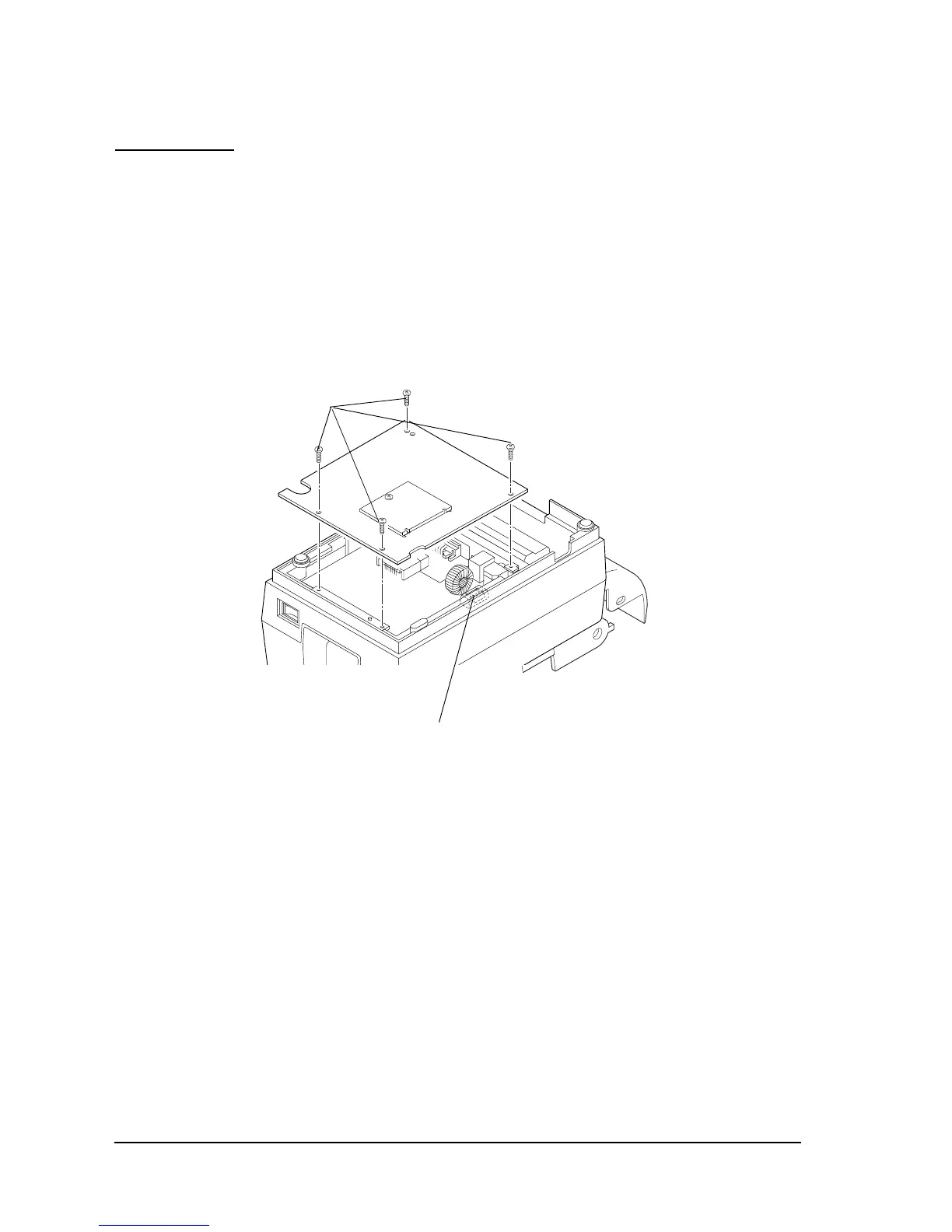

Removing the fuse
1. Turn off the printer.
2. Disconnect the external power supply.
3. Remove the main cover assembly from the printer.
4. Remove the lower plate from the printer.
5. Use tweezers to remove the blown fuse.
6. Replace the fuse with a 125 V, 2.0 AT Littelfuse 154002T.
Removing the print head unit
1. Remove 4 screws, and remove the upper case.
2. Remove the take-up flange ass’y.
CPS-tite (M3x6)
[0.59 to 0.78 N • m
(6 to 8 kgf • cm)]
Fuse
