Epson TM-U200 Series Technical Manual

Rev. A Mechanism Configuration and Operating Principles 2-1
TM-U200 Series (Type A/AM)Technical Manual
Confidential
Chapter 2
Mechanism Configuration and Operating Principles
Printer Mechanism Operating Principles
The M-U200 printer mechanism mounted in the TM-U200 Series (Type A/AM) is composed of
seven mechanisms: print, paper feed, ribbon feed, detector, auto-cutter, take-up and ribbon
switch.

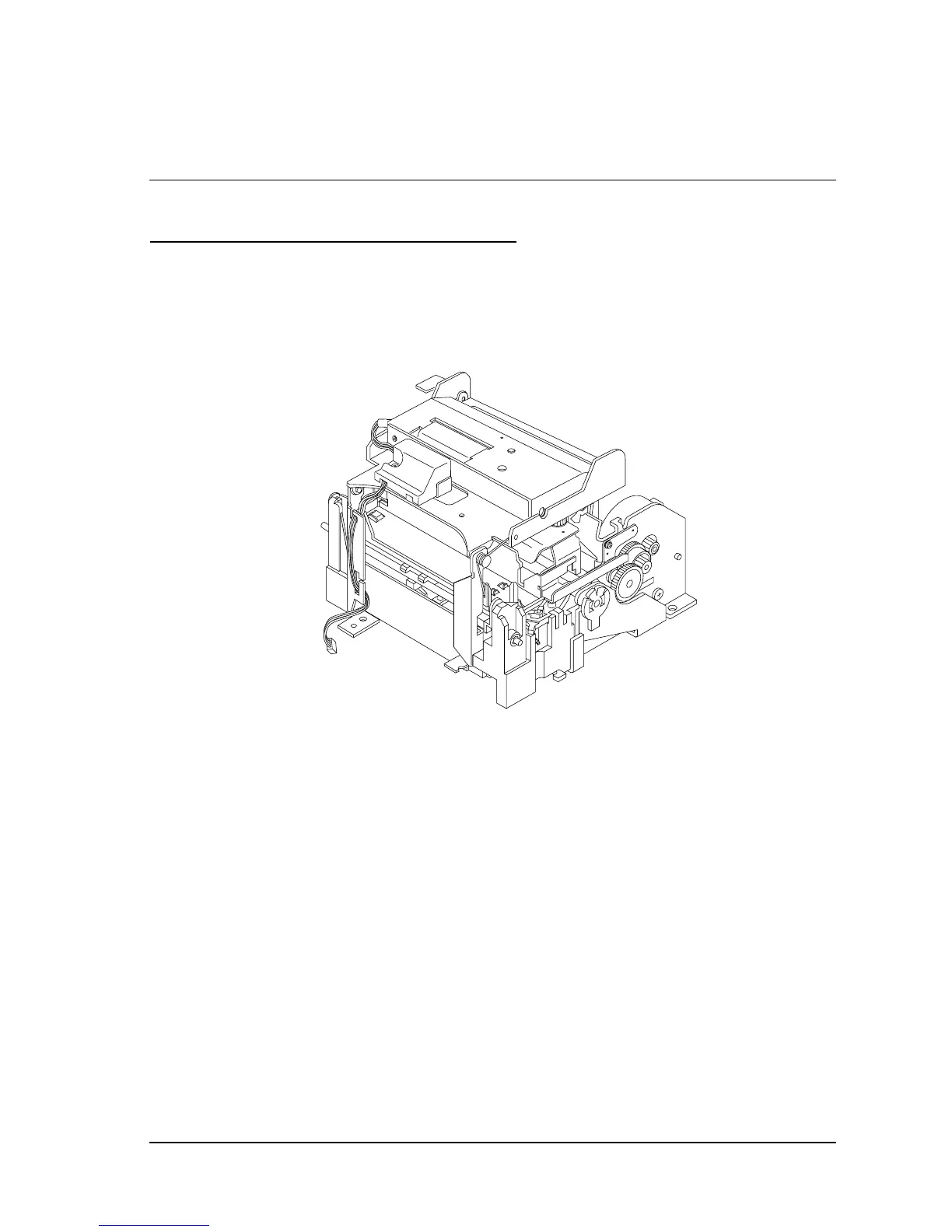

Figure 2-1 M-U200
