Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-35
TM-U200 Series (Type A/AM) Technical Manual
Confidential
Main Assembly 2 (Case Unit)

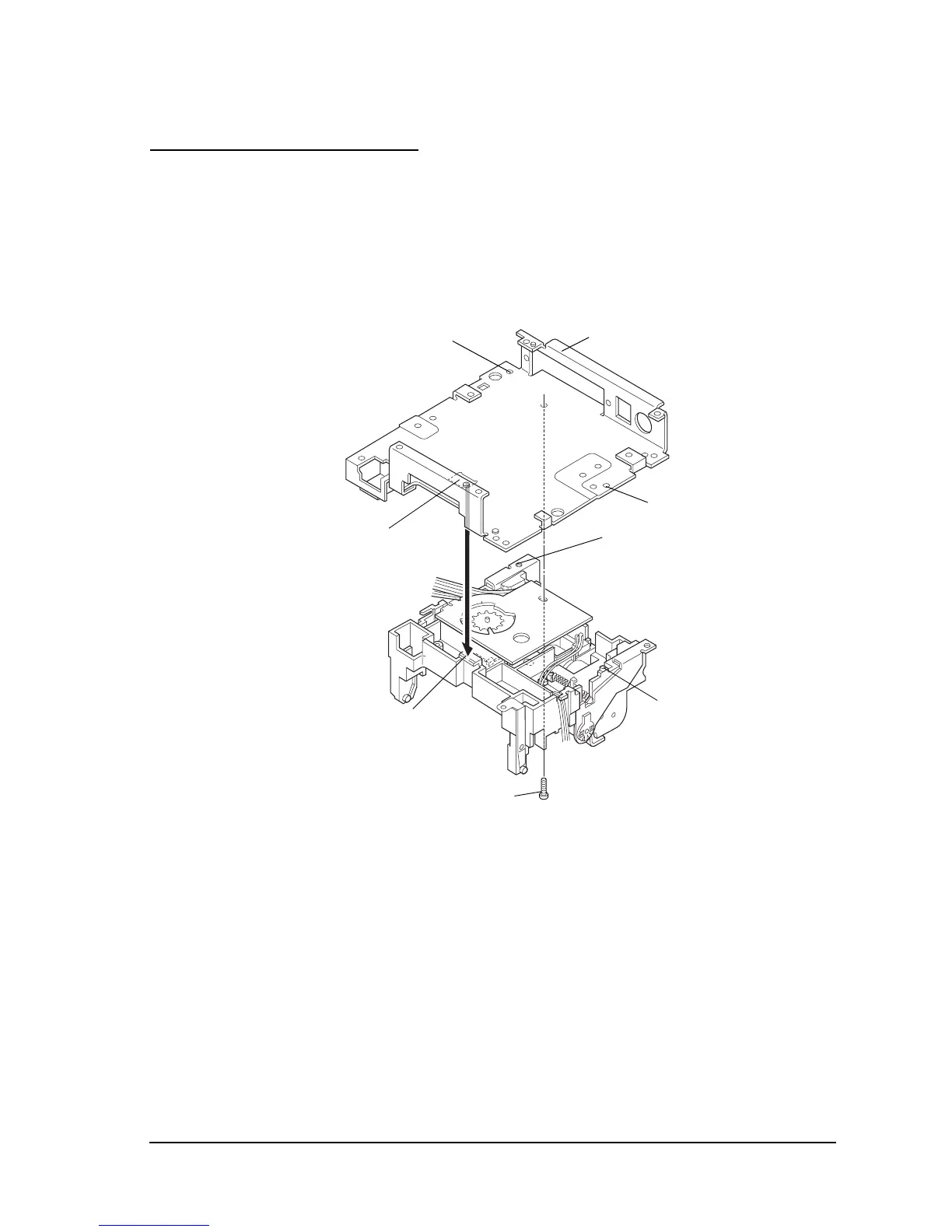

Upper plate assembly
1. Turn over the printer mechanism assembly.
2. Align the rectangular hole with the hook, hole A with dowel B, and then secure the plate
with the screw.
✓ Make sure hole C is aligned with dowel D.
Hole C
Upper plate
Hole A
Rectangular
hole
Dowel D
Dowel B
CBS-tite (M3x5) (0.59 to 0.78 N • m (6 to 8 kgf • cm)]
Hook
